Dwyer Instruments Capsuhelic 4000-0 Installation And Operating Instructions

CAUTION: Use of a line filter (Dwyer model A-391 or equiv-
alent) is recommended to prevent entry of liquid borne par-
ticles into gage. Dwyer Instruments cannot assume
responsibility for failure of gages due to clogging of internal
passages.
NOTE: DO NOT use with hydrogen gas. Toxic and/or ex-
plosive gas may form due to reaction with rare earth mag-
net.
CAPSUHELIC ® INSTALLATION
1. Select a location free from excessive vibration and where
the ambient temperature will not exceed 200°F. Sensing
lines may be run any necessary distance. For example, 250
foot lines will not affect accuracy but will damp the reading
slightly. Do not restrict lines. If pulsating pressures or vibra-
tion cause excessive pointer oscillation, consult factory for
means of providing additional damping.
2. All standard models are calibrated for use with the
diaphragm and scale in a vertical position. Special factory
calibration is necessary for operation in an inclined or hori-
zontal position. The exceptions are ranges under 5 in. w.c.,
(or metric equivalents) which can only be calibrated for ver-
tical operation.
DWYER INSTRUMENTS, INC.
P.O. Box 373 • Michigan City, IN 46361, U.S.A.

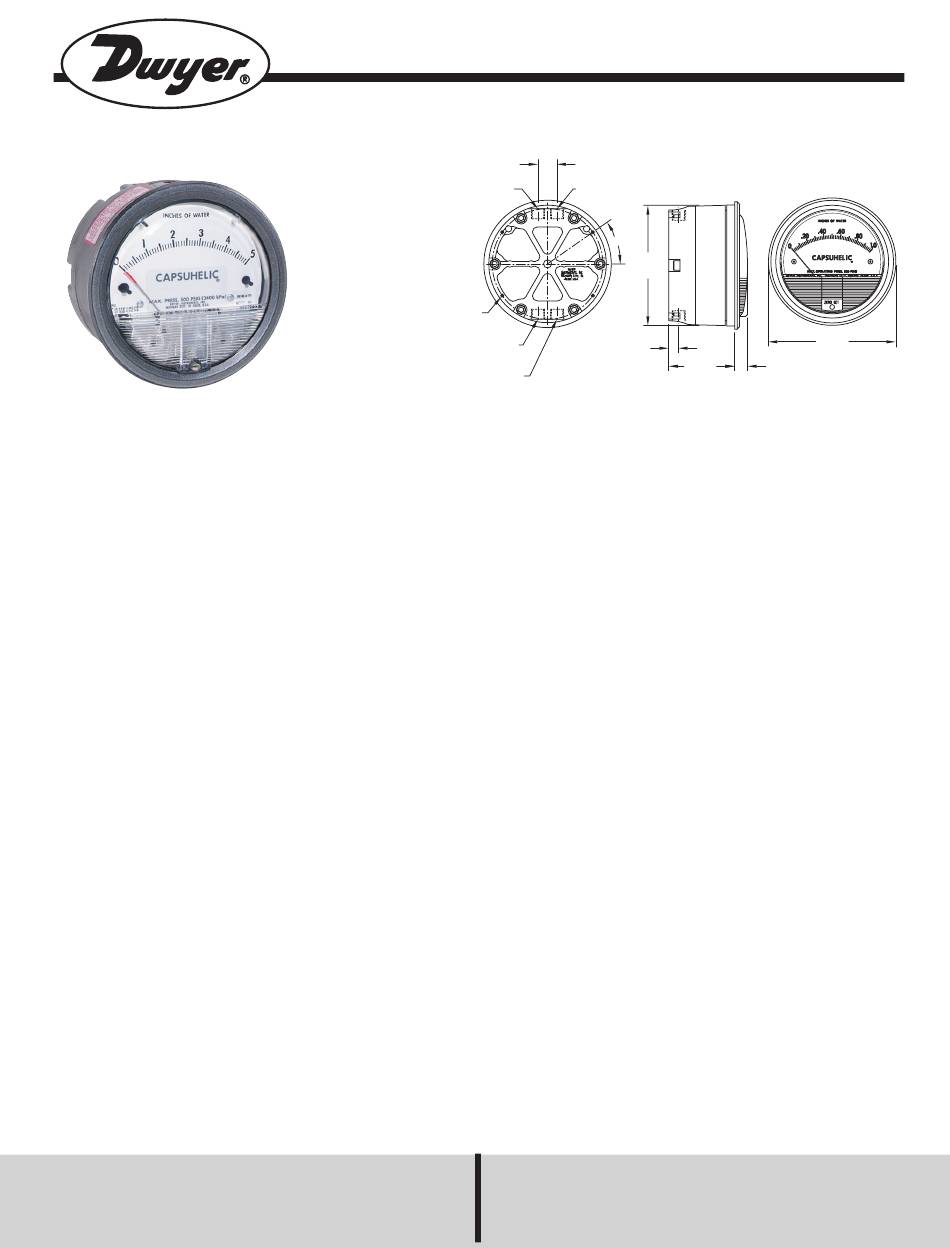

Series 4000 Capsuhelic
Specifications - Installation and Operating Instructions
3/4 [19.05] TYP
1/4 FEMALE NPT HIGH
PRESSURE CONNECTION
(AIR OR GAS)
(4) #6-32 X 3/8 [9.53] DP
HOLE ON A 4-11/32 [110.33]
BOLT CIRCLE
1/4 FEMALE NPT HIGH
PRESSURE CONNECTION
(LIQUID)
1/4 FEMALE NPT LOW
PRESSURE CONNECTION
(LIQUID)
®
Differential Pressure Gage
1/4 FEMALE NPT LOW
PRESSURE CONNECTION
(AIR OR GAS)
35° TYP
Ø4-45/64
[119.46]
13/32
[10.32] TYPE
2-19/32
SPECIFICATIONS
Service: Aluminum Case: Air and compatible gases and
oil based liquids. Brass Case: Air and compatible gases
and water based liquids.
Wetted Materials: Consult factory.
Housing: Die cast aluminum with impregnated hard
coating, standard. Optional forged brass housing is
required for water or water based fluids. Special material
diaphragms available, contact factory.
Accuracy: ±3% of full scale at 70°F (21.1°C). (±2% on
4000S models, ±4% on 4200, 4210, 4215, 4220, 4300,
4400, and 4500).
Pressure Limits: -20˝ Hg to 500 psig.
(-0.677 bar to 34.4 bar).
Temperature Limits: 20 to 200°F. (-6.67 to 93.3°C).
Size: 4˝ (101.6 mm) diameter dial face.
Mounting Orientation: Diaphragm in vertical position.
Consult factory for other position orientations.
Process Connections: 1/4˝ female NPT high and low
pressure taps, duplicated -one pair top for air and gas,
and one pair bottom for liquids.
Weight: 3 lb, 3 oz (1.45 kg) aluminum case;
7 lb, 13 oz (3.54 kg) brass case.
Standard Accessories: Two 1/4˝ NPT plugs for duplicate
pressure taps, four flush mounting adapters with screws
and four surface mounting screws.
Phone: 219/879-8000
Fax: 219/872-9057
Bulletin A-32
Ø5
[127.00]
1/2
[12.70]
[65.86]
