Installation Guide
Copyright Bitmaintech Pte.Ltd. 2007 – 2017. All rights reserved.
©
Bitmaintech Pte.Ltd. (Bitmain) reserves the right to make corrections, modifications, enhancements,
improvements, and other changes to its products and services at any time and to discontinue any product or
service without notice.
Customers should obtain the latest relevant information before placing orders and should verify that such
information is current and complete. All products are sold subject to Bitmain's terms and conditions of
sale supplied at the time of order acknowledgment.
Bitmain warrants performance of its products to the specifications applicable at the time of sale in accordance
with Bitmain's standard warranty. Testing and other quality control techniques are used to the extent Bitmain
D3 Server
Document Version 0.1
Aug 2017
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BITMAIN ANTMINER D3
Summary of Contents for BITMAIN ANTMINER D3
- Page 1 Bitmain warrants performance of its products to the specifications applicable at the time of sale in accordance with Bitmain's standard warranty. Testing and other quality control techniques are used to the extent Bitmain...
- Page 2 Bitmain products or services are used. Information published by Bitmain regarding third-party products or services does not constitute a license from Bitmain to use such products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the third party, or a license from Bitmain under the patents or other intellectual property of Bitmain.
-
Page 3: Table Of Contents
D3 Server Installation Guide Table of Contents 1. Overview ..............................4 1.1 D3 Server Components .........................5 1.2 Specification ..............................6 2. Connecting the Power Supply ........................7 3. Setting Up the Server ............................ 9 4. Configuring the Server ..........................11 4.1 Setting Up the Pool ..........................11 4.2 Modifying the Frequency ........................12 5. -
Page 4: Overview
1.Overview 1. Overview The D3 server is Bitmain’s newest version in the D3 server series. It boasts a state-of-the-art BM1760 custom-made chip using 28nm technology. All D3 servers are tested and configured prior to shipping to ensure easy set up. -
Page 5: D3 Server Components

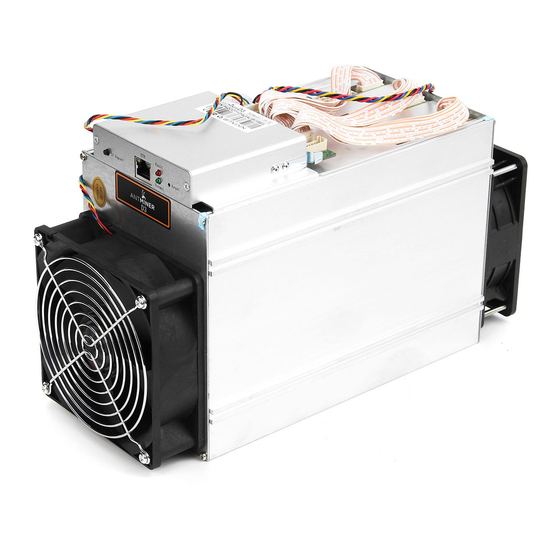

D3 Server Installation Guide 1.Overview 1.1 D3 Server Components The D3 server main components and controller front panel are shown in the following figure: - 5 -... -
Page 6: Specification
D3 Server Installation Guide 1.2 Specification Hash Rate 17 GH/s±5% Rated voltage 11.60 ~ 13.00V Frequency 487M Estimated wall outlet power consumption (with 970W + 7% APW3, 93% efficiency, 25°C ambient temperature) Estimated wall outlet power efficiency (with 57mJ/MH + 7% APW3, 93% efficiency, 25°C ambient temperature) Dimensions (L x W x H) 320mm*130mm*190mm... -
Page 7: Connecting The Power Supply
D3 Server Installation Guide 2. Connecting the Power Supply 2. Connecting the Power Supply Ten PCI-e connectors are located at the top of the D3 server for connecting the PSU as follows: ● Nine PCI-e connectors for the hash boards. Each hash board has a set of three PCI-e connectors. ●... - Page 8 D3 Server Installation Guide 2. Connecting the Power Supply Figure 2-1. PCI-E Connectors - Correct Connection Figure 2-2. PCI-E Connectors - Incorrect Connection - 8 -...
-
Page 9: Setting Up The Server
3. Setting Up Server To set up the server: The file IPReporter.zip is supported by Microsoft Windows only. Go to the following site: https://shop.bitmain.com/support.htm?pid=00720160906053730999PVD2K0vz0693 Download the file: IPReporter.zip 3. Extract the file. The default DHCP network protocol distributes IP addresses automatically. - Page 10 D3 Server Installation Guide 3. Setting Up the Server 7. On the controller board, click the IP Report button. Hold it down until it beeps (about 5 seconds). The IP address will be displayed in a window on your computer screen. 8.
-
Page 11: Configuring The Server
D3 Server Installation Guide 4. Configuring the Server 4. Configuring the Server 4.1 Setting Up the Pool To configure the server: 1. Click General Settings. 2. Set the options according to the following table: Option Description Pool URL Enter the URL of your desired pool. The D3 server can be set up with three mining pools, with decreasing priority from the first pool (pool 1) to the third pool (pool 3). -
Page 12: Modifying The Frequency
D3 Server Installation Guide 4.2 Modifying the Frequency You are able to modify the frequency value through ‘ Configuration —>Advanced Settings’. Bitmain recommend a default frequency of D3 server , and Overlocking the server will void the warranty immediately. - 12 -... -
Page 13: Monitoring Your Server
D3 Server Installation Guide 5. Monitoring Your Server 5. Monitoring Your Server To check the operating status of your server: 1. Click the status marked below. 2. Monitor your server according to the descriptions in the following table: Option Description ASIC# Number of chips detected in the chain. -
Page 14: Administering Your Server
6.2 Upgrading Your System Make sure that the D3 server remains powered during the upgrade process. If power fails before the upgrade is completed, you will need to return it to Bitmain for repair. To upgrade the server’s firmware: 1. In System, click Upgrade. -
Page 15: Modifying Your Password
D3 Server Installation Guide proceed to flash the image. (Note: Please do not extract the update file and keep the power on during updating firmware or otherwise the server needs to be returned to the factory to repair. And around two minutes will be needed to complete updating.) 3. - Page 16 D3 Server Installation Guide - 16 -...
