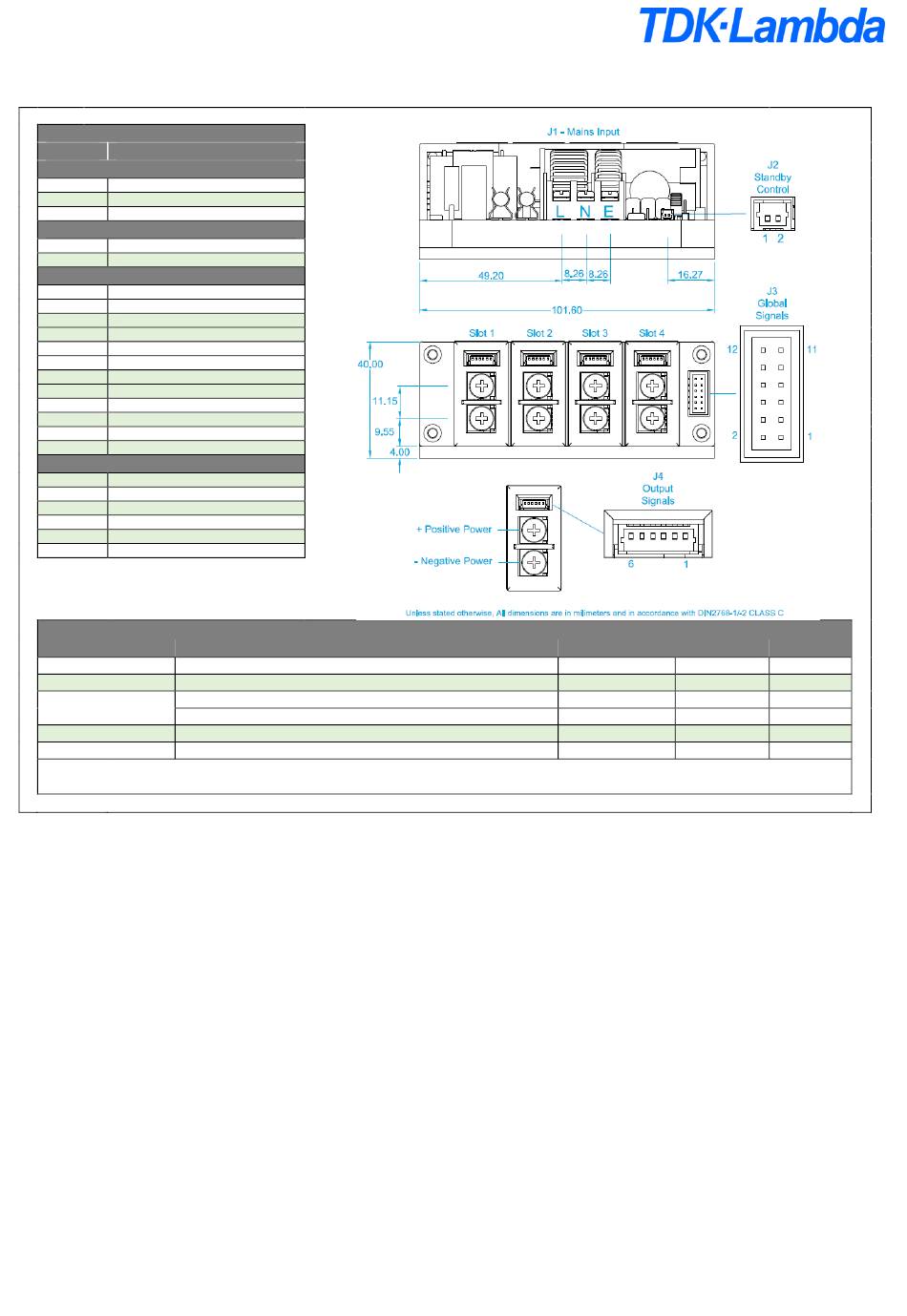

13. Connector details

PINOUTS
Circuit Details
J1 – Mains Input
1 Live
2 Neutral
3 Earth
J2 – Standby control
1 Standby control negative
2 Standby control positive
J3 – Global Signals
1 Slot 4 - Power Good
2 Slot 4 - Inhibit
3 Slot 3 - Power Good
4 Slot 3 - Inhibit
5 Slot 2 - Power Good
6 Slot 2 - Inhibit
7 Slot 1 - Power Good
8 Slot 1 - Inhibit
9 Temperature sense (T
10 AC OK
11 +5V (Bias Supply 1A)
12 COM
J4 -Output Signals
1 - Sense
2 + Sense
3 COM
4 I Control
5 V Control
6 +5V (Bias Supply 10mA)
Ref. Details
J1 - Mains Input 3 Pin, Barrier, 6-32 Steel Screws, 0.8 Nm or 7 Lb-In Torque
J2 - Standby control 2 Pin, 1.25mm, with Friction Lock, 28-30AWG
12 Pin, 2mm, with Friction Lock, 24-30 AWG, WIRE TO BOARD
J3 - Global Signals
12 Pin, 2mm, with Friction Lock, 24-30 AWG, IDT CABLE TO BOARD
J4 - Output Signals 6 PIN, 1.25mm, with Friction Lock, 28-30AWG
Output Power Positive/Negative, M4 terminal, use appropriately rated crimp terminal
Notes 1. Cable 14-18AWG, 300V, 16A, 105°C, use appropriately rated crimp terminal.
2. Direct equivalents may be used for any connector parts.
3. All cables must be rated 105°C min, equivalent to UL1015
CM4 App Note 260424 issue 2.1.docx
)
SNS
MATING CONNECTORS
Document No. 260424
Manufacturer
(1)
MOLEX
MOLEX
MOLEX
MOLEX
Housing Terminal
0510210200 0500588000
0511101260 0503948051
0875681273
0510210600 0500588000
