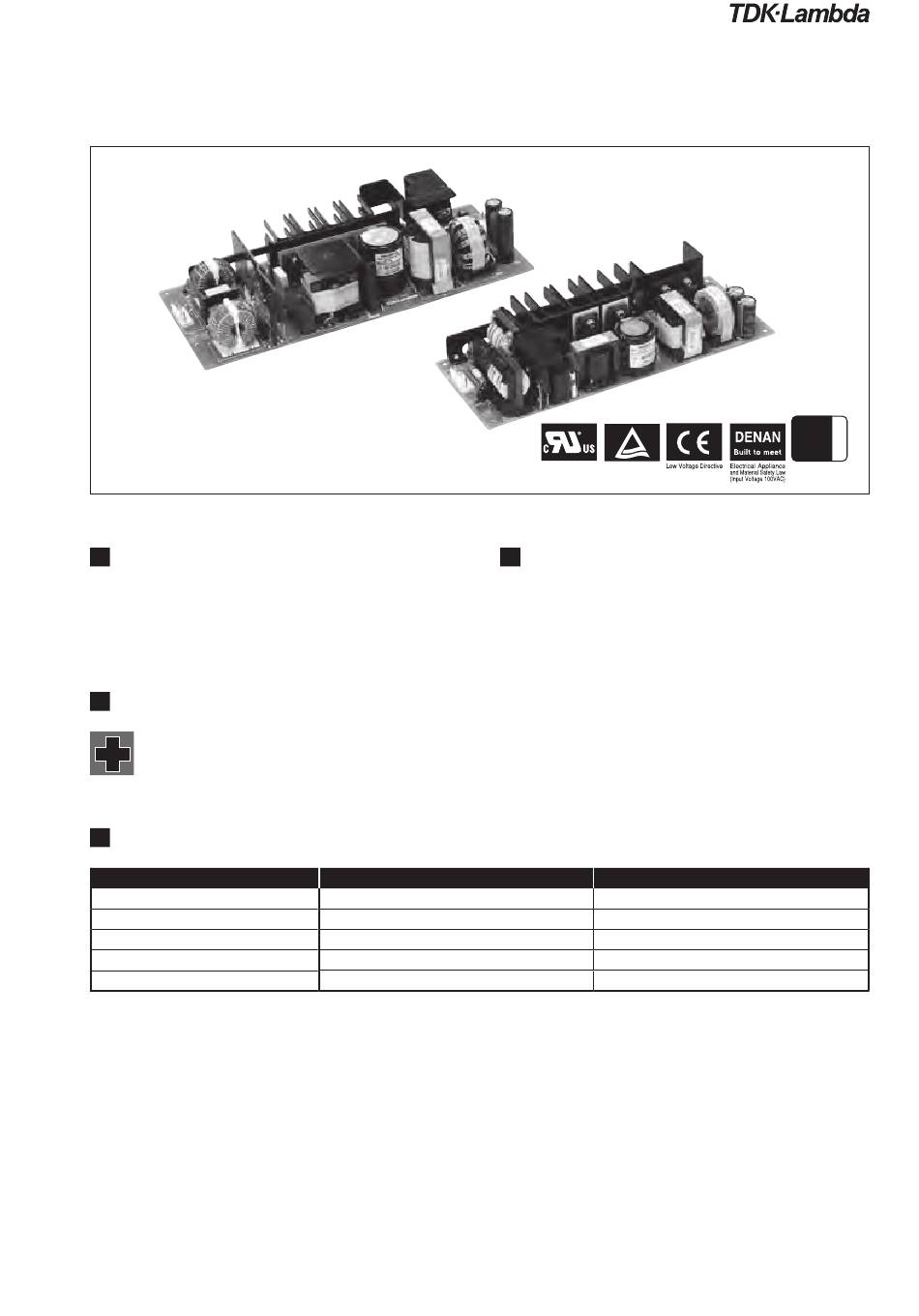

CME
Features
• Medical safety standard (IEC60601-1) approved.
• Leakage current 0.3mA or less (at 265VAC)
• EMI class B approved.
Applications
MED
Product line up
Model
Output voltage
Max output current
Max output power
Peak output current
Peak output Power
・All specifications are subject to change without notice.
SERIES
CME150-24
24V
6.3A
151.2W
7.5A
180W
Single Output 150W - 240W
UL60601-1
EN60601-1
CSA 22.2
No.601-1, M90
(cUL-certified)
Conformity to RoHS Directive
This means that, in conformity with EU Directive 2002/95/
EC, lead, cadmium, mercury, hexavalent chromium, and spe-
cific bromine-based flame retardants, PBB and PBDE, have
not been used, except for exempted applications.
3
Y
E
A
R
S
warranty
CME240P-24
24V
10A
240W
20A
480W
CME-1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TDK-Lambda CME Series
Summary of Contents for TDK-Lambda CME Series
- Page 1 SERIES Single Output 150W - 240W warranty UL60601-1 EN60601-1 CSA 22.2 No.601-1, M90 (cUL-certified) Features Conformity to RoHS Directive • Medical safety standard (IEC60601-1) approved. This means that, in conformity with EU Directive 2002/95/ • Leakage current 0.3mA or less (at 265VAC) EC, lead, cadmium, mercury, hexavalent chromium, and spe- •...
-
Page 2: Specifications
Specifications MODEL CME150-24 CME240P-24 ITEMS/UNITS Voltage Range AC85 - 265 (*3) Frequency (*3) Hz 47-63 Power Factor (100/200VAC)(Typ) (*2) 0.99 / 0.95 Efficiency (Typ) (*2) Input Current (100/200VAC)(Typ) (*2) A 2.0 / 1.0 3. 2/ 1.6 Inrush Current (100/200VAC)(Typ) (*4) A 14 at 100VAC, 28 at 200VAC, Ta=25 , Cold Start °C... -
Page 3: Outline Drawing
Input Output 37±1 4- 3.5 Use all the screws to secure (194.3) the CME series power supply to the equipment case. (For details, see the installation procedures 208±1 in the instruction manual.) There must be at least 4 mm gap between the end of the printed... -
Page 4: Important Safety Instructions
These products are not customer serviceable. Repairs may only be These products are designed for the following parameters : carried out by TDK-Lambda Corporation or their authorised agents. Material Group IIIa, Pollution Degree 2, Over voltage Category II, These products are not authorised for use as critical components... -
Page 5: General Installation Instructions
General installation instructions • These products are Class Ι and must therefore be reliably • These products are IPX0, and therefore chemicals/solvents, earthed and professionally installed in accordance with the cleaning agents and other liquids must not be used. prevailing electrical wiring regulations and the safety standards •... - Page 6 3. Explanation of Functions and Precautions Input Voltage Range Series Operation For series operation, either method (A) or (B) is possible. Input voltage range is single phase 85 - 265VAC (47 - 63Hz) or 120 - 370VDC. Input voltage which is out of specification may Method (A) Method (B) cause unit damage.
- Page 7 CME240P Isolation Test For CME240P-24, the peak output current should satisfy the Isolation resistance between output and FG ( chassis ) shall conditions below: be more than 100MΩ at 500VDC. For safety operation, voltage (1) Should not exceed the rated peak current in the specifications. setting of DC isolation tester must be done before the test.
-
Page 8: Mounting Directions
4. Mounting Directions Output Derating according to the Mounting Method Please use the mounting hole as: Mount-ing Directions CME150 : 4 holes of φ 3.5 CME240P : 5 holes of φ 3.5 Recommended standard mounting method is (A). Method (B), And insert the spacer (MAX φ... -
Page 9: Wiring Method
FG should be connected to the earth terminal of the apparatus. If not, the conducted noise and output noise will increase. Wire Metal spacer Chassis (Conductor) 5. Wiring Method • The output load line and input line shall be separated and •... - Page 10 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: TDK-Lambda CME240P-24...
