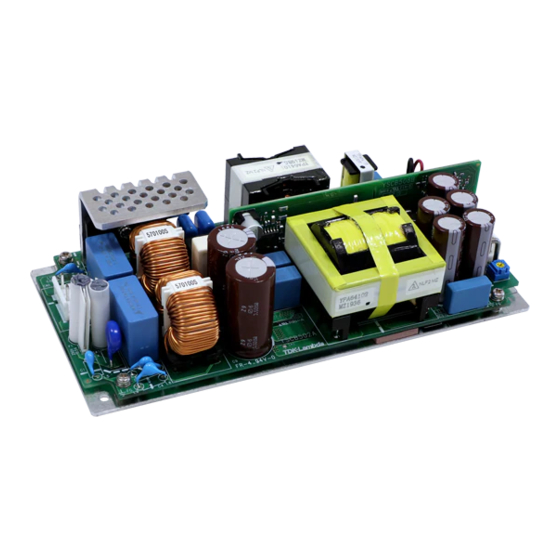

TDK-Lambda CUS350MP-1000 Series Instruction Manual

CUS350MP-1000 Series
BEFORE USING THE POWER SUPPLY UNIT
Be sure to read this instruction manual thoroughly before using this product. Pay attention to all cautions and warnings before
using this product. Incorrect usage could lead to an electrical shock, damage to the unit or a fire hazard.
DANGER
Never use this product in locations where flammable gas or ignitable substances are present.
INSTALLATION WARNING
・ When installing this product, ensure that work is done in accordance with the instruction manual. When installation is
improper, there is risk of electric shock and fire.
・ Installation shall be done by service personnel with necessary and appropriate technical training and experience. There is a
risk of electric shock and fire.
・ Do not cover the product with cloth, paper and etc. Do not place any flammable object around the product. This might cause
damage, electric shock or fire.
WARNING ON USE
・ Do not touch this product or its internal components while product is in operation, or shortly after shutdown. You may
receive a burn.
・ While this product is operating, keep your hands and face away from it as you might get injure from an unexpected
situation.
・ For product without cover, do not touch this product or its internal components while product is in operation, or shortly
after shutdown. There are high voltage potential and high temperature parts in the product. This might cause injury such as
electric shock or burn.
・ There are cases where high voltage charge remains inside the product immediately after the input is cut off. Do not touch
even if product is not in operation as you may get injure from electrical shock and burn.
・ Do not make unauthorized change to this product or remove the cover as you may get injure from electric shock or damage
the product. We will not be held responsible if the product was modified, changed or disassembled.
・ Do not use this product under unusual conditions such as emission of smoke or abnormal smell and sound etc. Please stop
using it immediately and shut off the product. It might lead to fire and electric shock.
In such cases, please contact to TDK-lambda. Do not attempt any repair by yourself, as this may cause injuries to yourself.
・ Do not operate and store these products in environments where condensation occurs due to moisture and humidity. It might
lead fire and electric shock.
・ Do not use the product when there is mechanical over-stress or heavy impact to the product as it might cause failure.
・ When necessary, this product is to be repaired by TDK-Lambda or our authorized agents. It is important that this product
must not be used in hazardous environments or facilities such as nuclear power control system or life support equipment
without our written consent.
CAUTION ON MOUNTING
・ Ensure connections to input/output terminals are correct as indicated in the instruction manual before switching on.
・ Input voltage, Output current, Output power, ambient temperature and ambient humidity should be kept within
specifications, otherwise the product will be damaged.
・ Input wires must be as short and thick as possible.
・ Do not use this product in special environment with strong electromagnetic field, corrosive gas or conductive substances
and direct sunlight, or places where product is exposed to water or rain.
・ Mount this product properly in accordance with the instruction manual, mounting direction and shall be properly ventilated.
・ Please shut down the input when connecting input and output of the product.
・ When installing in environment where conductive foreign, dust and liquid may be present, please consider penetration of
these foreign material in the power supply by installing filter, to prevent trouble or malfunction.
・ Please install power supply in a fire enclosure.
Instruction Manual
1/20
<Page>
TDK-Lambda
CUS350MP-1000 Series
INSTRUCTION MANUAL
PA644-04-01
