Output Current Measurement
The output current of the module can be measured using the I
signal. If this pin is not loaded its output voltage will follow the typical
CONTROL
equation,
V
= 4*I
/I
, where I
is the maximum rated current for the module.
I_OUT
OUT
RATED
RATED
Note that the I
output voltage is representative of the internal inductor current not the actual load current. However, this will only have an
CONTROL
influence during dynamic events. It is recommended to add an external buffer amplifier (as shown below) when using the I
signal to
CONTROL
measure the output current as loading the I
signal, even with microamps can cause the current limit to be reduced. If it is required to
CONTROL
measure the output current and adjust the output current limit simultaneously, this can be achieved by using a clamp circuit instead of a voltage
source to adjust the current limit, while continuing to use an amplifier to measure the output current. An example circuit is shown below. In this
case V
will control the current limit while the buffered I
signal will provide a measurement of the output current.
CONTROL
CONTROL

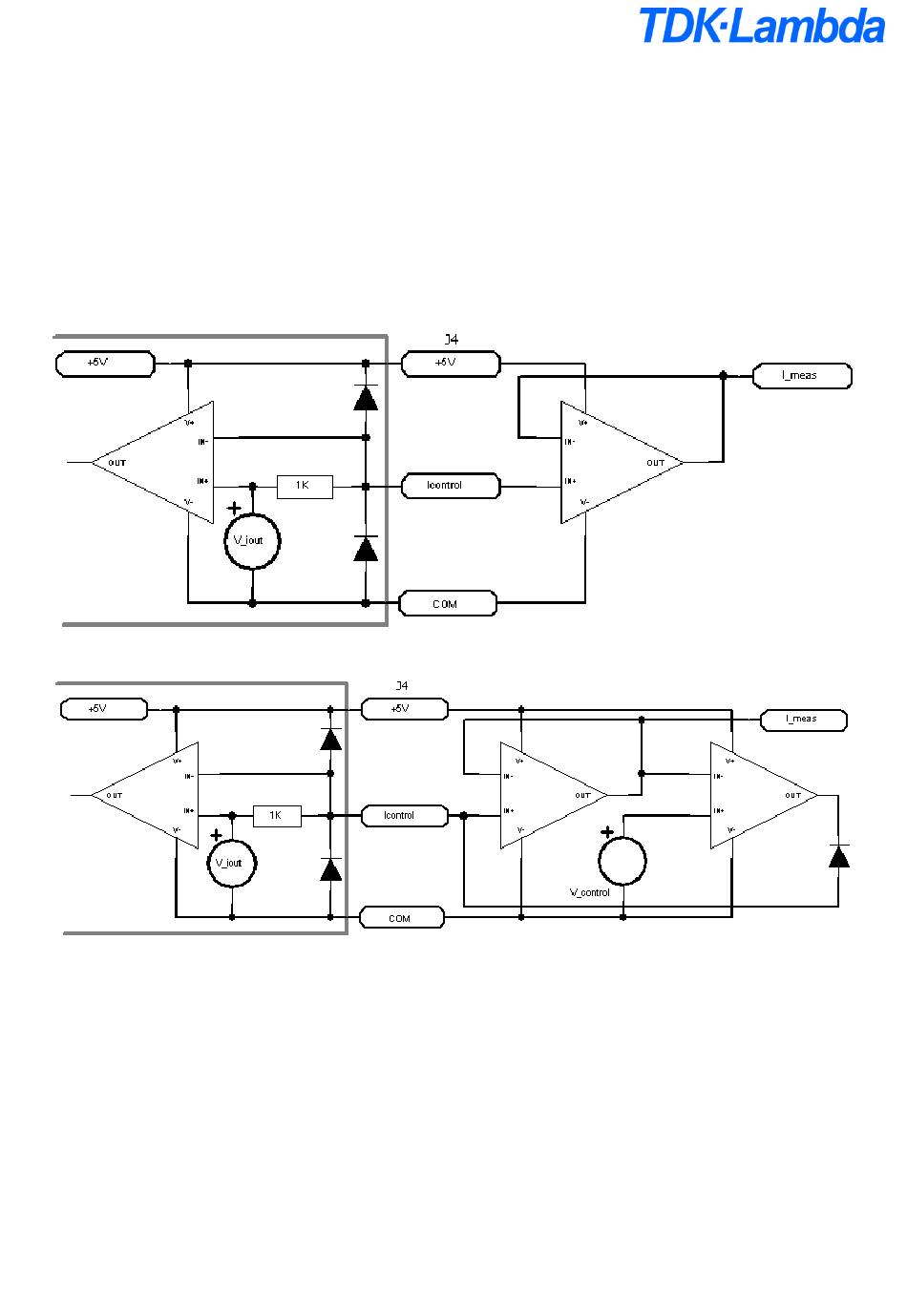

Measuring output current
Measuring & controlling output current
CM4 App Note 260424 issue 2.1.docx
Document No. 260424
Page 18 of 29
