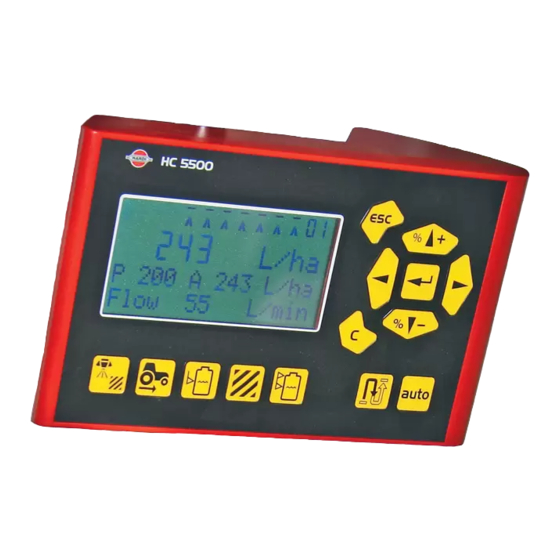

Hardi HC 5500 Quick Manual

Quick Guide: HARDI Controller HC 5500
679028-103 --- Controller software 5.14 --- Language GB

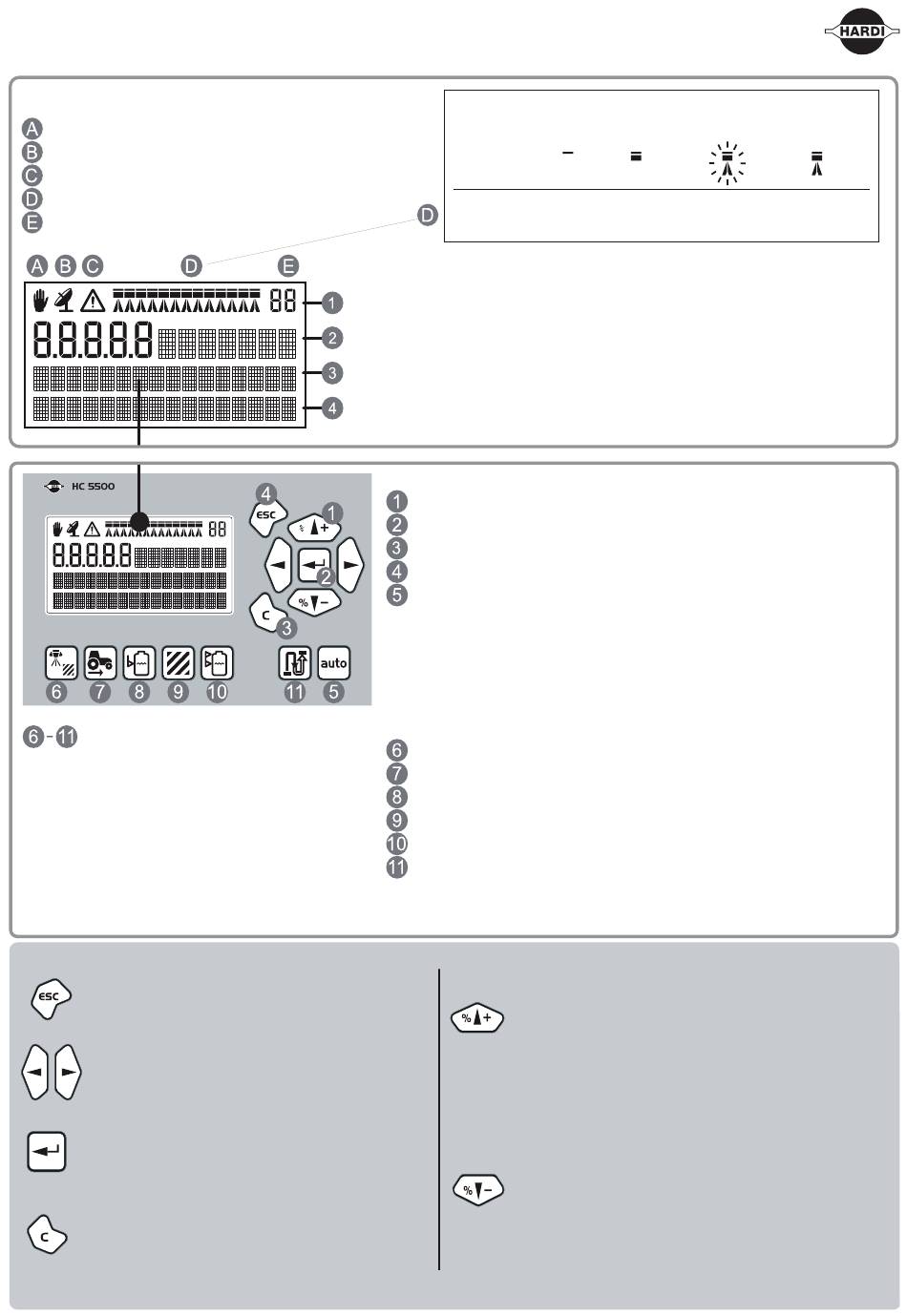

Symbols in display's 1
Automatic/Manual mode status
Variable application rate status
Service interval warning
Boom status without dual line
Active register (area trip)
Press the key shortly, and it will show the preset
readout.
Hold the key down for one second, and it will
work as a short cut to a certain menu.
Additional key information
• Escape a menu (hold to escape all menus)
• Escape without changing value
• Move the selection of digits or letters to the
left or to the right
• Enter a menu
• Confirm (accept) a value
• Clear a value
• Reset the active register (hold until
countdown is finished)
st
line
Symbol display and register number
Preset key readout (keys 6-11 below) or menu number
Optional readout
Optional readout
D1
Section: off
Main: off
* Section closed by Auto ON/OFF or external variable rate control.
Navigation keys
Enter key
Clear key
Escape key
Automatic control key, which also clears % over / % under rate
Menu 1.1 :
Volume rate
Menu 3.1.1 :
Speed
Menu 1.2 :
Tank contents
Menu 1.3.1 :
Area
Menu 1.3.1 :
Volume sprayed
Menu 4.1.1 :
Remaining distance
or area
• Scroll up
• Increase a value
• Increase volume rate in steps or select
another preset application rate
• Scroll down
• Decrease a value
• Decrease volume rate in steps or select
another preset application rate
D2 D3
Flashing* Spraying
on off
off on
Volume rate
Speed calibration
Tank contents
Select register
Select register
Measuring distance
D4
on
on
