- Page 1 ELS Electrolyte Level Sensor and ELSi Electrolyte Level Sensor Interface Product Description and Installation Guide Vertiv Corporation 1050 Dearborn Drive Columbus, OH 43085 Tel: (954) 377-7101 www.vertivco.com 590-2112-501A/SL-29427/4200–117...
- Page 3 Vertiv is strictly prohibited. Notice to Users Vertiv Corporation reserves the right to make changes to this document without notice to any user or reseller of this product. Vertiv Corporation also reserves the right to substitute or terminate distribution of this document, with no obligation to notify any person or party of such substitutions or terminations.
- Page 4 Vertiv Customer Service Vertiv Customer Service is available Monday to Friday, 8:00AM to 4:30PM Eastern Time. Telephone: (954) 377-7101 Email: alber-service@vertivco.com Web site: www.vertivco.com Corporate Office Address: Vertiv Corporation 1050 Dearborn Drive Columbus, OH 43085 USA 590-2112-501A/SL-29427/4200-117 Revision 3...
-
Page 5: Table Of Contents
Table of Contents Product Description .....................1-1 ELS Sensor Module System Features ..............1-1 ELSi Interface Module System Features ..............1-1 ELS Temperature Control Module (ETCM) System Features ........ 1-2 Materials Received List ....................2-1 Parts List ....................... 2-1 Optional Parts List ....................2-3 ELSi Interface and ELS Sensor Module Connection ..........3-1 Connecting the ELSi Interface Module .............. - Page 6 List of Figures Figure 1 - ELSi Interface Module Calibration Button ..............1-1 Figure 2 - ELSi Interface Module ..................... 3-1 Figure 3 - ELSi Interface Module Alarm Contacts Jack ............3-2 Figure 4 - Positioning the ELS Sensor Module on Battery Case ..........3-2 Figure 5 - Adding Bonding Adhesive to the ELS Sensor Module and attach to Battery Case ..
-

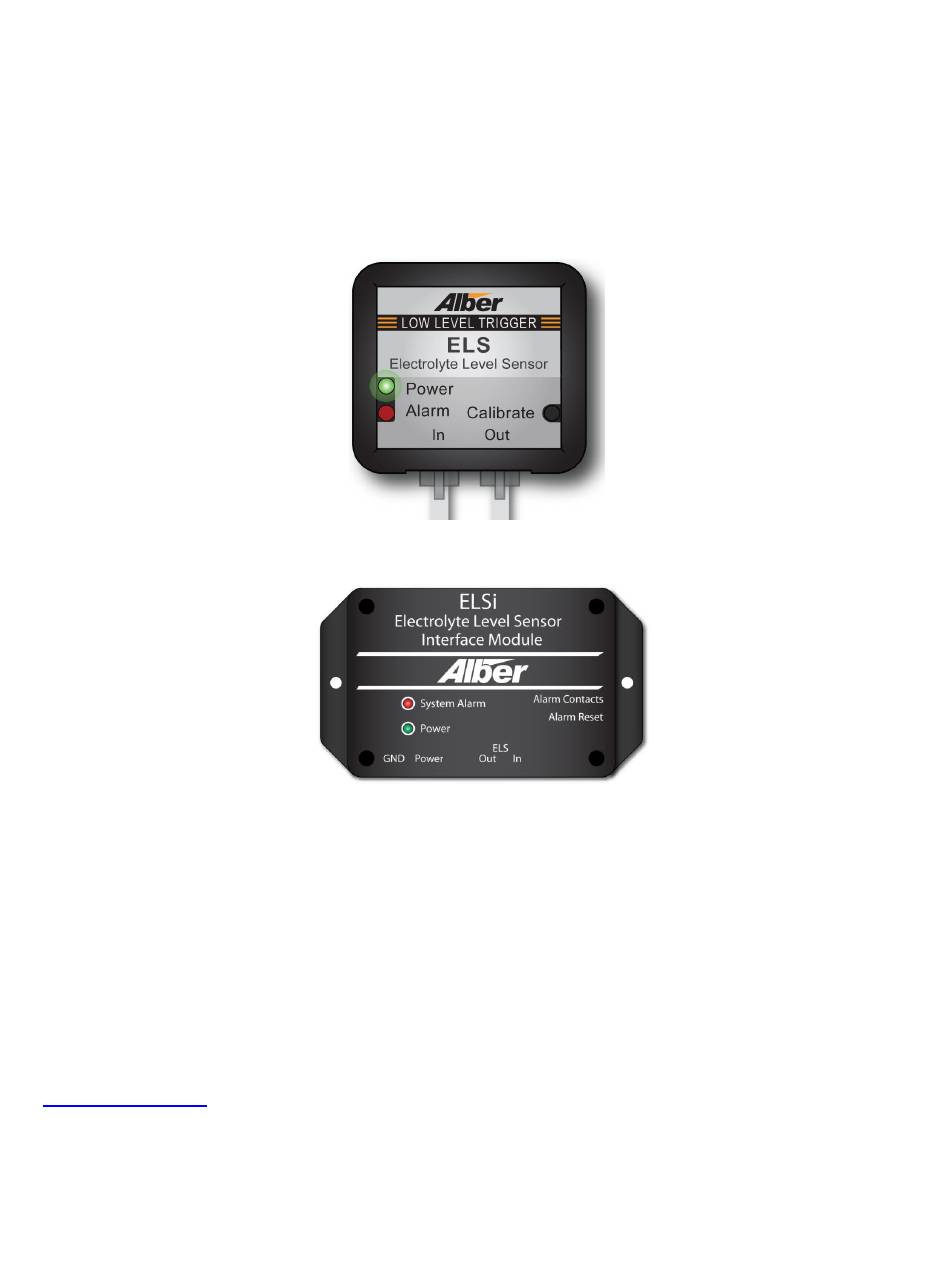

Page 7: Product Description
• Automatic reset of alarms • Easily integrates into Vertiv Battery Monitors (UXIM, BDS Series) or Building Management Systems. ELSi Interface Module System Features Features for the ELSi interface module includes: • Equipped with two Form C relay contacts, (2A at 30Vdc) for system interface and alarm notification •... -
Page 8: Els Temperature Control Module (Etcm) System Features
• Easy to view and set temperature settings for trigger points to cut off false alarms via a rotary switch. • Easily integrates into Vertiv Battery Monitors (UXIM, BDS Series) or Building Management Systems via the ELSi. 590-2112-501A/SL-29427/4200-117 Revision 3... -
Page 9: Materials Received List
The following is a list of materials received with your shipment. Refer to the packing slip delivered with the equipment for a complete list of materials supplied. Vertiv suggests you inventory all materials to ensure the order is complete. Report any shortages to Vertiv immediately. - Page 10 Part Number Photo/Drawing Description 1108-160-RXX 6P/4C RJ11 12” Cross Up to 58 wires per system RXX = Length in inches 1108-161-XX 6P/4C RJ11 10’ Cross One wire per system 6P/4C RJ11 20’ Cross Two wires per system XX = Length in feet 1108-162-XX ELSi alarm interface 25’...
-
Page 11: Optional Parts List
2.2 Optional Parts List The following are optional parts when the battery system is located in an uncontrolled cold environment. If these parts are needed, please contact your Vertiv representative. Part Number Photo/Drawing Description 1008-153 ELS Temperature Control Module One module per system 1108-160-RXX 6P/4C RJ11 12”... -
Page 13: Elsi Interface And Els Sensor Module Connection
There are two sets of form “C” Contacts and can be connected directly to a Vertiv monitoring system or Building Management System. See figure 3 ELSi Interface Module Alarm Contacts Jack for more detail. -
Page 14: Mounting The Els Sensor On The Battery Case
Figure 3 - ELSi Interface Module Alarm Contacts Jack Mounting the ELS Sensor on the Battery Case Use the ELS sensor module “LOW LEVEL TRIGGER” graphic on the label to position and mount the ELS sensor module even with the low electrolyte level line on the battery case. To attach the ELS sensor modules to the batteries, use a small amount of the provided adhesive and a thin strip of 3m gel tape as a temporary support to mount the ELS sensor modules to the side of the batteries. -
Page 15: Figure 5 - Adding Bonding Adhesive To The Els Sensor Module And Attach To Battery Case
4. Place a thin strip of the 3m gel tape on the bottom of the sensor, and apply a small amount of the adhesive (3/4 ” Length by 1/4” Width by 1/4 ” depth ) on the side of the sensor that is facing the battery case. -
Page 16: Connecting The Els Sensor Module
Connecting the ELS Sensor Module The following table describes where the connections go on the ELS sensor module. Figure 6 - ELS Sensor Module Connectors The RJ11 “In” jack on the first ELS sensor module connects the “In” jack cross-over 4 pin phone cable from the ELSi interface module “Out”... -
Page 17: Calibrating The Els Sensor Module
Calibrating the ELS Sensor module Use the Calibration button on the ELS sensor module to calibrate the ELS sensor alarms. This provides an indication of the quality of the acoustic coupling. Do this by pressing the Calibrate button twice on each ELS sensor module. -
Page 18: Testing The Els Sensor Module
Testing the ELS Sensor Module 1. Verify there are no active alarm conditions by confirming that no red LEDs are active on any of the ELS sensor modules. If there are, ensure the electrolyte level is at a normal level and retry the calibration on the ELS sensor module. -
Page 19: Troubleshooting
If JP1 is not installed, the alarm LED and alarm relay on the ELSi interface module will remain on when the electrolyte level is returned to normal. To reset the alarm, press the reset button on the side of the ELSi interface module. See Figure 9. 8. -
Page 21: Monitoring The Elsi Interface Module And Els Sensor Configuration
4. Monitoring the ELSi Interface Module and ELS Sensor Configuration ELSi Interface Module and ELS Sensor Configuration Diagram This diagram shows how the ELS sensor indicates an alarm when the electrolyte level in the battery gets too low. Figure 11 - ELSi Interface and ELS Sensor Module Configuration Diagram The following Monitoring scenarios will occur after the installation and calibration are complete. -
Page 23: Optional Els Temperature Control Module
5. Optional ELS Temperature Control Module About the ELS Temperature Control Module The ELS system has an optional ELS Temperature Control module that is used in cold climates. The ELS Temperature Control module allows you to prevent false alarms to the ELSi module in an uncontrolled cold climate. -
Page 24: Els Temperature Control Module Configuration Diagram
ELS Temperature Control Module Configuration Diagram The following diagram illustrates how the ELSi interface module, ELS Temperature Control module and ELS sensor modules are connected on a string of batteries. Figure 13 - ELSi Interface, ELS Temperature Control and ELS Sensor Module Connections The following Monitoring scenarios will occur after the installation and calibration are complete. -
Page 25: Specifications
6. Specifications ELSi Interface Module LEDs Red LED – System Alarm Green LED – Status/Power Alarms 2 Form C relay contacts (2A at 30Vdc) Alarm reset button Input Power AC Powered – 100V - 240V AC 0.5A/12VDC Output Power DC Powered – 12V DC 1.25A Grounding Earth to ground cable Communications... -
Page 26: Optional Els Temperature Control Module
Packaging ABS Plastic Housing 1.80” W x 1.59” H x 0.5” D Mounting: Adhesive (Contact your Vertiv Sales Representative for the correct part number for your specifically required adhesive.) Operating Environment Temperature range: 10C to 40C (60F to 110F) Humidity range: 0% to 80% RH (non condensing) at 10C to 31C.
