INSTALLATION MANUAL

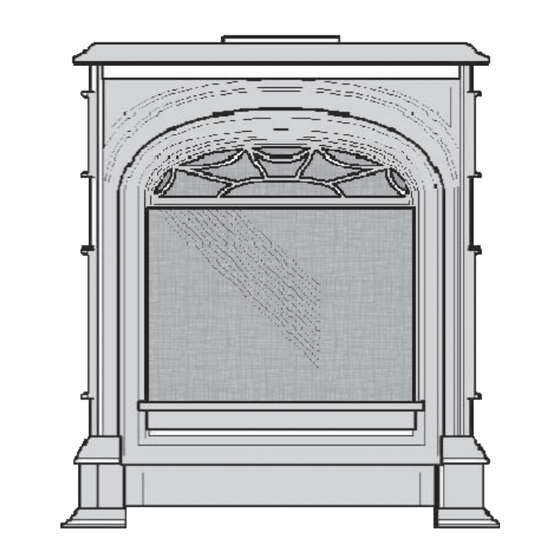

President FS Stove 531CSB
Approved for use with Valor heater model 530 only
Not compatible with 530INI/IPI insert engines
DANGER
!
A barrier designed to reduce the risk of burns from the hot
viewing glass is provided with this appliance and shall be
installed for the protection of children and other at-risk
individuals.
Note: This kit must be installed or serviced by a qualifi ed
installer, service agency or gas supplier. These instructions
are to be used in conjunction with the main installation
instructions for the above listed heater model.
WARNING: If the information in these instructions is not
followed exactly, a fi re or explosion may result causing
property damage, personal injury or loss of life.
4001166-10
©2018, Miles Industries Ltd.
Portrait
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
IN S TAL L E R
Leave this manual
with the appliance.
CO NS U M E R
Retain this manual for
future reference.
Notes: This kit must be installed
or serviced by a qualifi ed installer,
service agency or gas supplier.
These instructions are to be used
in conjunction with the main
installation instructions for the
above listed heater models.
1

Advertisement

loading

Related Manuals for Valor Portrait President FS Stove 531CSB

Summary of Contents for Valor Portrait President FS Stove 531CSB

  • Page 1 INSTALLATION MANUAL Portrait President FS Stove 531CSB Approved for use with Valor heater model 530 only Not compatible with 530INI/IPI insert engines DANGER IN S TAL L E R Leave this manual with the appliance. HOT GLASS WILL CO NS U M E R CAUSE BURNS.

  • Page 2: Mantel Requirements

    Kit Contents Front & Sides Pack Infill Plate (Box 1) Top Baffle 1 Front Casting unit with Casting Barrier Screen 2 Side Casting units 1 Top Baffl e 2 Stand-off Spacers 1 Pack of Screws & Washers Top Pack (Box 2) 1 Top Casting Stand-offs 1 Top Infi...
  • Page 3 Dimensions & Clearances See table Ceiling 36” Mantel Spacers for (914 mm) 24-1/2” (620 mm) combustible min. Mantel leg walls (1-1/4” thick) - see table 13-1/4” (336 mm) 36” (914 mm) min. to combustibles 24-1/2” (620 mm) Mantel Depth “A” Min.
  • Page 4 Installation 5. Fit the top casting making sure that the corners locate as shown. Ensure that the venting and gas fi tting are completed Note: The rear edge of the top casting should be and that the ceramics and window are installed before fl...
  • Page 5 Cleaning WARNING DO NOT TOUCH THE BARRIER SCREEN, DO NOT TOUCH THE BARRIER SCREEN, THE CAST STOVE OR THE GLASS WHILE THE CAST STOVE OR THE GLASS WHILE THEY ARE HOT! THEY ARE HOT! Let the stove cool first Let the stove cool first before cleaning it.

  • Page 6: Repair Parts List

    Because our policy is one of constant development and improvement, details may vary slightly from those given in this publication. Designed and Manufactured by / for Miles Industries Ltd. 190 – 2255 Dollarton Highway, North Vancouver, B.C., CANADA V7H 3B1 Tel. 604-984-3496 Fax 604-984-0246 www.valorfi replaces.com...
  • Page 7 DIRECTIVES D’INSTALLATION Portrait ® LE PREMIER FOYER À GAZ RADIANT Poêle President 531CSB Homologué pour usage avec les foyers Valor Portrait 530 seulement Incompatible avec les foyers encastrables 530INI/IPI DANGER IN STA LLATEU R Laissez cette VITRE CHAUDE - RISQUE notice avec DE BRÛLURES.
  • Page 8 Contenu du kit Devanture et Côtés (boîte 1) Plaque de remplissage 1 Devanture en fonte avec Déflecteur d’air Pare-étincelles Dessus de fonte 2 Côtés en fonte 1 Défl ecteur d’air 2 Écarteurs muraux 1 Quincaillerie Dessus (boîte 2) 1 Dessus de caisse en fonte 1 Plaque de remplissage Écarteurs muraux (2)
  • Page 9 Dimensions et Dégagements Voir table Plafond Manteau Min. 36” (914 mm) Patte du Écarteurs pour murs manteau combustibles (1-1/4” (32 mm) - voir table 13-1/4” (336 mm) Min. 36” (914 mm) des combustibles 24-1/2” (620 mm) Profondeur “A” Dégagement minimum “B” du manteau Jusqu’à...
  • Page 10 Installation 5. Placez le dessus de fonte en vous assurant que les coins s’emboîtent tel que montré. Assurez-vous que le système d’évacuation et Note : Le bord arrière du dessus de fonte devrait d’alimentation de gaz, de même que les éléments être égal aux bords arrières des côtés de fonte.
  • Page 11 Entretien AVERTISSEMENT NE TOUCHEZ PAS LE NE TOUCHEZ PAS LE PARE-ÉTINCELLES PARE-ÉTINCELLES, LE , LE POÊLE OU LA FENÊTRE LORSQU’ILS SONT POÊLE OU LA FENÊTRE LORSQU’ILS SONT CHAUDS! CHAUDS! Laissez le poêle refroidir avant de le Laissez le poêle refroidir avant de le nettoyer.
  • Page 12 Liste de pièces Description Numéro No. alternatif Qté Devanture de fonte 569169 000B205 Rondelle, charnière du garde-cendres 532529 100B810 Garde-cendres 568989 540K048AZ Boulon, charnière du garde-cendres 568999 420K558 Aimant 569009 020A085 Côté droit en fonte 569179 550K056AZ Côté gauche en fonte 569189 550K057AZ Boulon de nivelage...
