2.

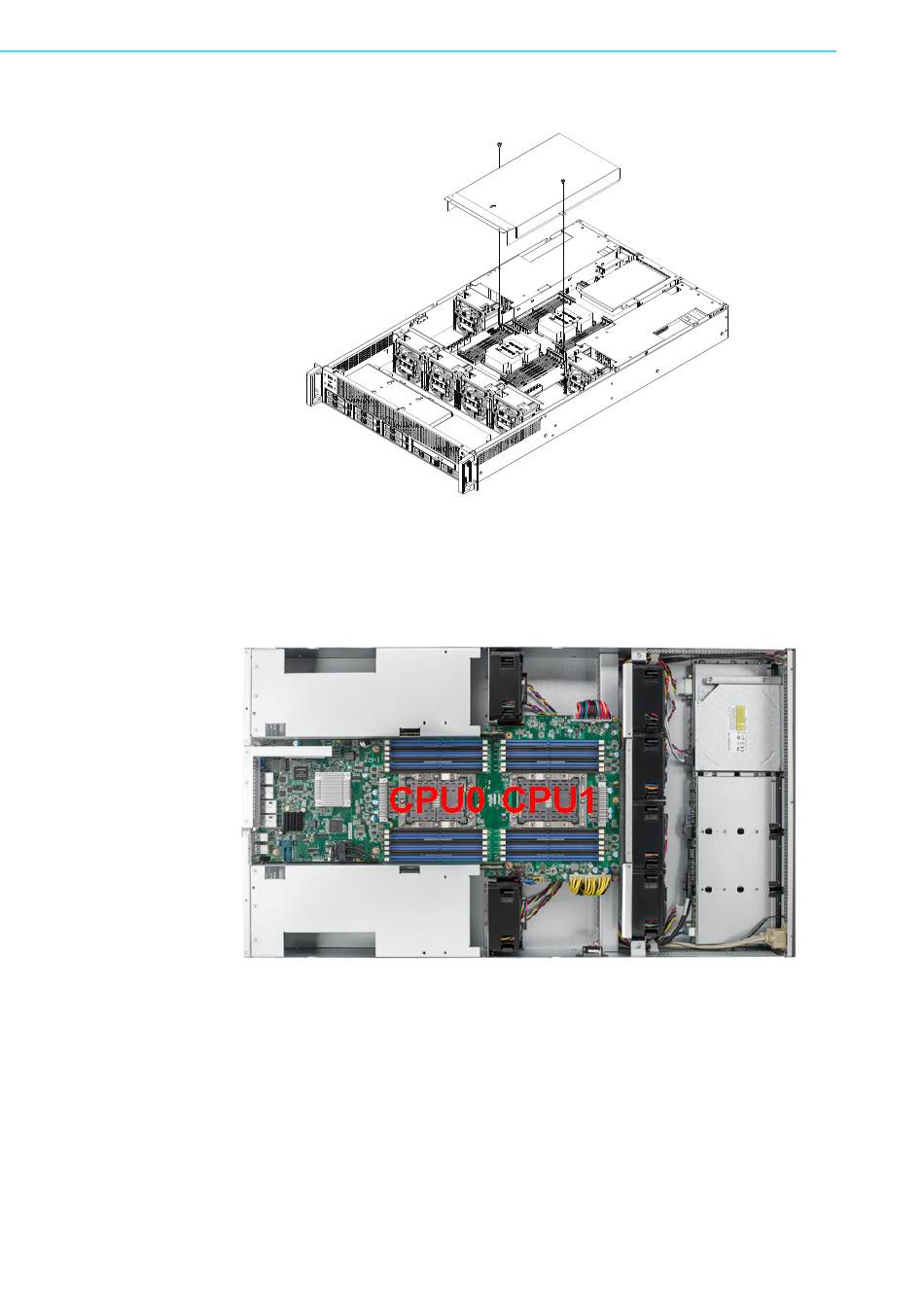

Remove CPU air duct.
2.2.2
Installing the CPU and Heatsink
Follow the steps below to install CPUs and CPU heatsinks.
1.
Locate the CPU sockets - you must install in the CPU0 socket first.
SKY-6200 User Manual
14
