Advantech SKY-7210 Startup Manual

SKY-7210
Intel® Xeon® Scalable Series Processor

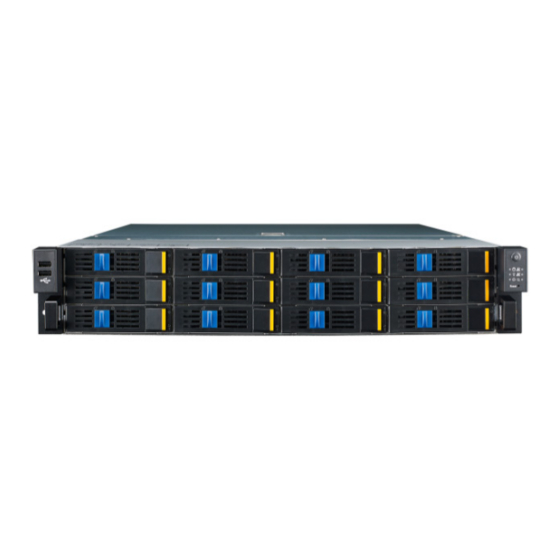

2U Network Hybrid Network Server
Startup Manual
Packing List
Before installation, ensure that the following materials have
been received:
• One SKY-7210 Hybrid network server
• One box of accessories
• One warranty certificate
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note: Acrobat Reader is required to view any PDF file.
Acrobat Reader can be downloaded at: www.
adobe.com/Products/acrobat/readstep2.html
(Acrobat is a trademark of Adobe)
For more information on this and other Advantech products,
please visit our website at:
http://www.advantech.com.tw/support
http://www.advantech.com
For technical support and service, please visit our support
website at:
http://support.advantech.com.tw/
This manual is for the SKY-7210 series Rev. A
Part No. 2042721000
Printed in China
Specifications
Main Board Functions
• Intel® Xeon® scalable processor supports up to 28 cores
• Chipset: Intel C621/C622
• BIOS: AMI 8-Mbit SPI Flash
• Memory: 24 x DDR4 ECC RDIMMs, up to 2666MHz and
• Ethernet: 3 x Intel I210-AT 10/100/1000Mbps (2 x for
• PCIe Riser:
• NMC slots: 3 x NMC slots with PCIe x8 thumbs screw
• Storage: 12 x 3.5"/2.5" swappable HDD / SSD, 1 x M.2
• Peripherals:
• Dimensions (W x L x H): 438 x 730 x 88mm
• Weight: 26 - 28Kg
• Environment: Operating
• Temperature:
• Humidity: 5% - 85% @40 (104°F) 5% - 95%
• Input Voltage: AC 100 ~ 240 V @ 50 ~ 60 Hz, full range
Edition 1
November 2018
(Skylake-SP)
up to 1563GB
Mgmt and 1 x for IPMI, and 2 x 10GB SFP+ (SKY-7210F)
- Max. 3 x Gen3, PCIe x16 add-on cards (by SKUs)
- Max. 6 x Gen3, PCI-E x8 add-on cards (by SKUs)
type
Socket (22x80)
- USB2.0: 2 x USB2.0 ports on the front panel
- USB3.0: 2 x USB3.0 ports on the rear panel
- Serial: 1x D-sub console port on the rear panel
- VGA, 1 x D-sub graphic display port on the rear panel
0 ~ 40
(32°F -104°F)
SKY-7210 Startup Manual 1
Non-operating
-20 ~ 80
(-4°F - 167°F)
