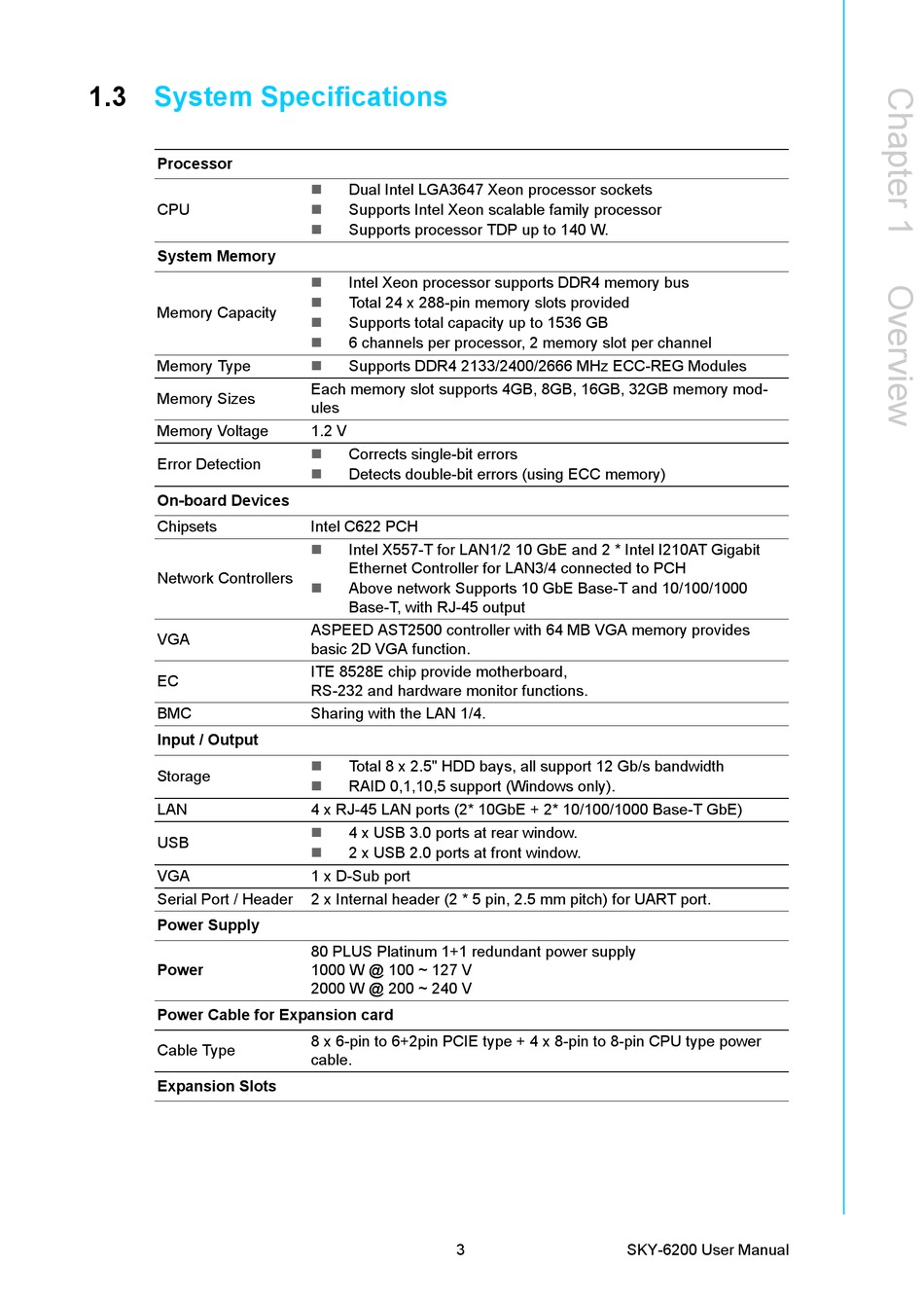

System Specifications

Processor
CPU
System Memory
Memory Capacity
Memory Type
Memory Sizes
Memory Voltage
Error Detection
On-board Devices
Chipsets
Network Controllers
VGA
EC
BMC
Input / Output
Storage
LAN
USB
VGA
Serial Port / Header
Power Supply
Power
Power Cable for Expansion card
Cable Type
Expansion Slots
 Dual Intel LGA3647 Xeon processor sockets
 Supports Intel Xeon scalable family processor
Supports processor TDP up to 140 W.

 Intel Xeon processor supports DDR4 memory bus
Total 24 x 288-pin memory slots provided

 Supports total capacity up to 1536 GB
 6 channels per processor, 2 memory slot per channel
 Supports DDR4 2133/2400/2666 MHz ECC-REG Modules
Each memory slot supports 4GB, 8GB, 16GB, 32GB memory mod-
ules
1.2 V
 Corrects single-bit errors
 Detects double-bit errors (using ECC memory)
Intel C622 PCH
 Intel X557-T for LAN1/2 10 GbE and 2 * Intel I210AT Gigabit
Ethernet Controller for LAN3/4 connected to PCH
 Above network Supports 10 GbE Base-T and 10/100/1000
Base-T, with RJ-45 output
ASPEED AST2500 controller with 64 MB VGA memory provides
basic 2D VGA function.
ITE 8528E chip provide motherboard,
RS-232 and hardware monitor functions.
Sharing with the LAN 1/4.
Total 8 x 2.5" HDD bays, all support 12 Gb/s bandwidth

 RAID 0,1,10,5 support (Windows only).
4 x RJ-45 LAN ports (2* 10GbE + 2* 10/100/1000 Base-T GbE)
 4 x USB 3.0 ports at rear window.
 2 x USB 2.0 ports at front window.
1 x D-Sub port
2 x Internal header (2 * 5 pin, 2.5 mm pitch) for UART port.
80 PLUS Platinum 1+1 redundant power supply
1000 W @ 100 ~ 127 V
2000 W @ 200 ~ 240 V
8 x 6-pin to 6+2pin PCIE type + 4 x 8-pin to 8-pin CPU type power
cable.
