Mounting Procedure
VESA Panel Mounting Procedure:
1- Install the enclosure to a 100mm VESA mount pedestal.
2- Secure the enclosure using the screws and lock washers, supplied with the unit.
3- Tighten all mounting hardware to a torque of 15 inch-pounds.
ATTENTION: Mounting hardware must be tightened to a torque of 15 inch-pounds to provide a
proper panel mount and avoid potential damage. Vartech Systems assumes no responsibility for
water or chemical damage to the monitor or other equipment within the enclosure due to
improper installation.
4- Attach the power and system cables to the bottom side of the enclosure if you have not
already done so.
10.4 Enclosed VESA Mount LCD Monitor
FIRST READ THROUGH THE ENTIRE MANUAL

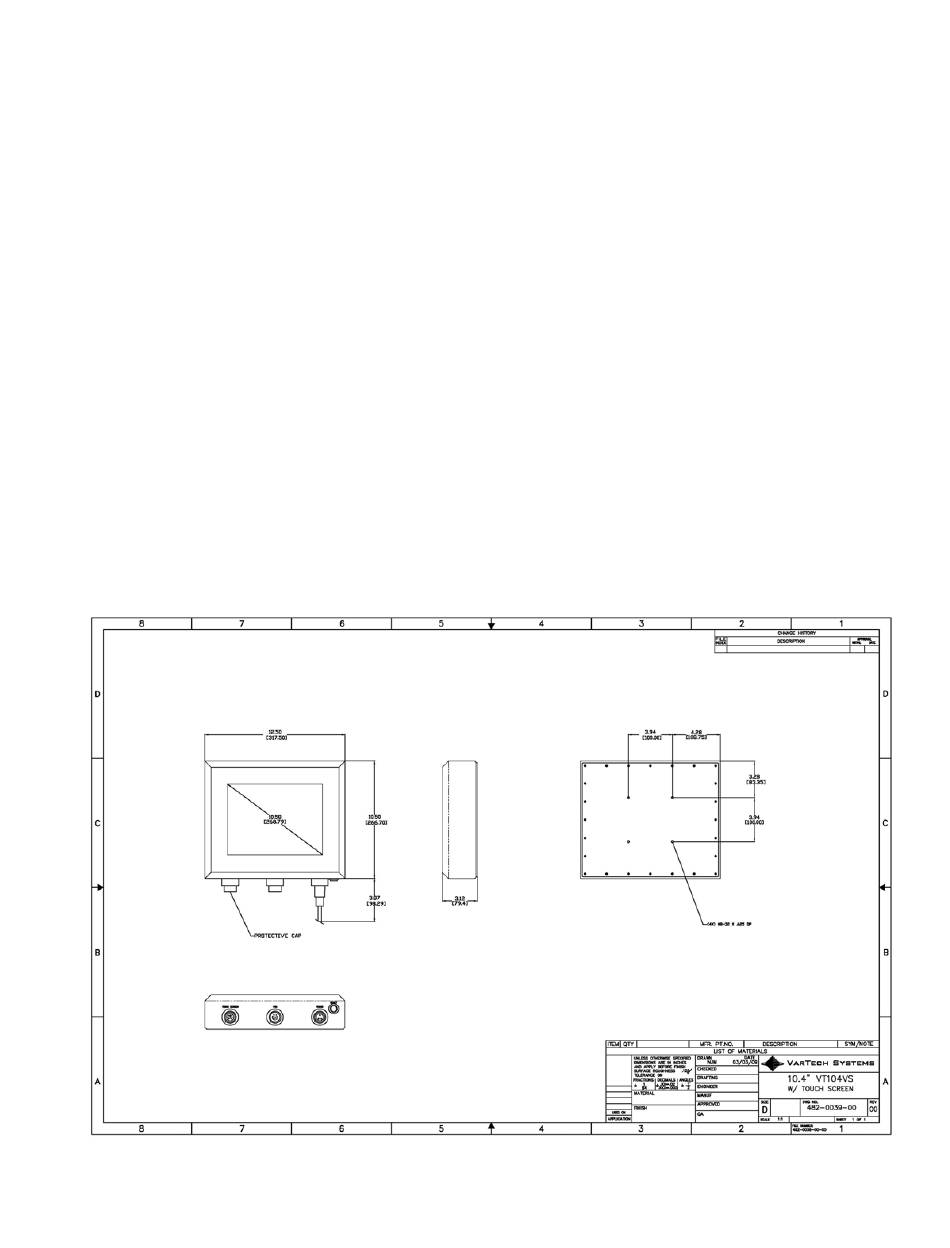

Product Drawing: Detail –A–
5
486-0020-00-00
