User Manual
Solutions for Demanding Applications
VARTECH
S Y S T E M S I N C.

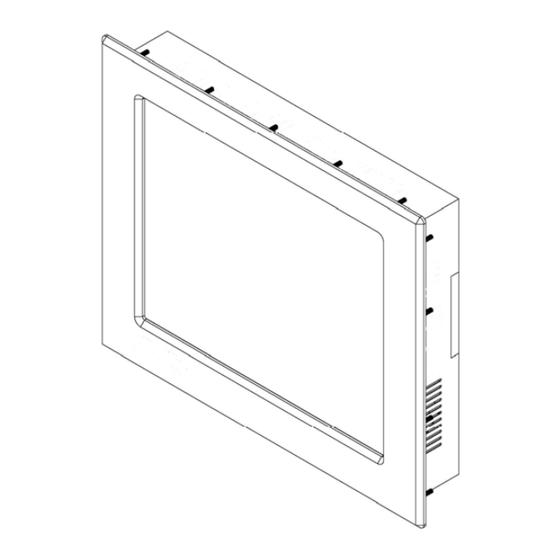

15.0" Panel Mount PC
Model VTPC150P / PSS/ PHB / PSSHB
User's Guide
Read these instructions completely before attempting to operate your new Panel Mount PC
Advertisement
Related Manuals for VarTech Systems VTPC150P
Summary of Contents for VarTech Systems VTPC150P

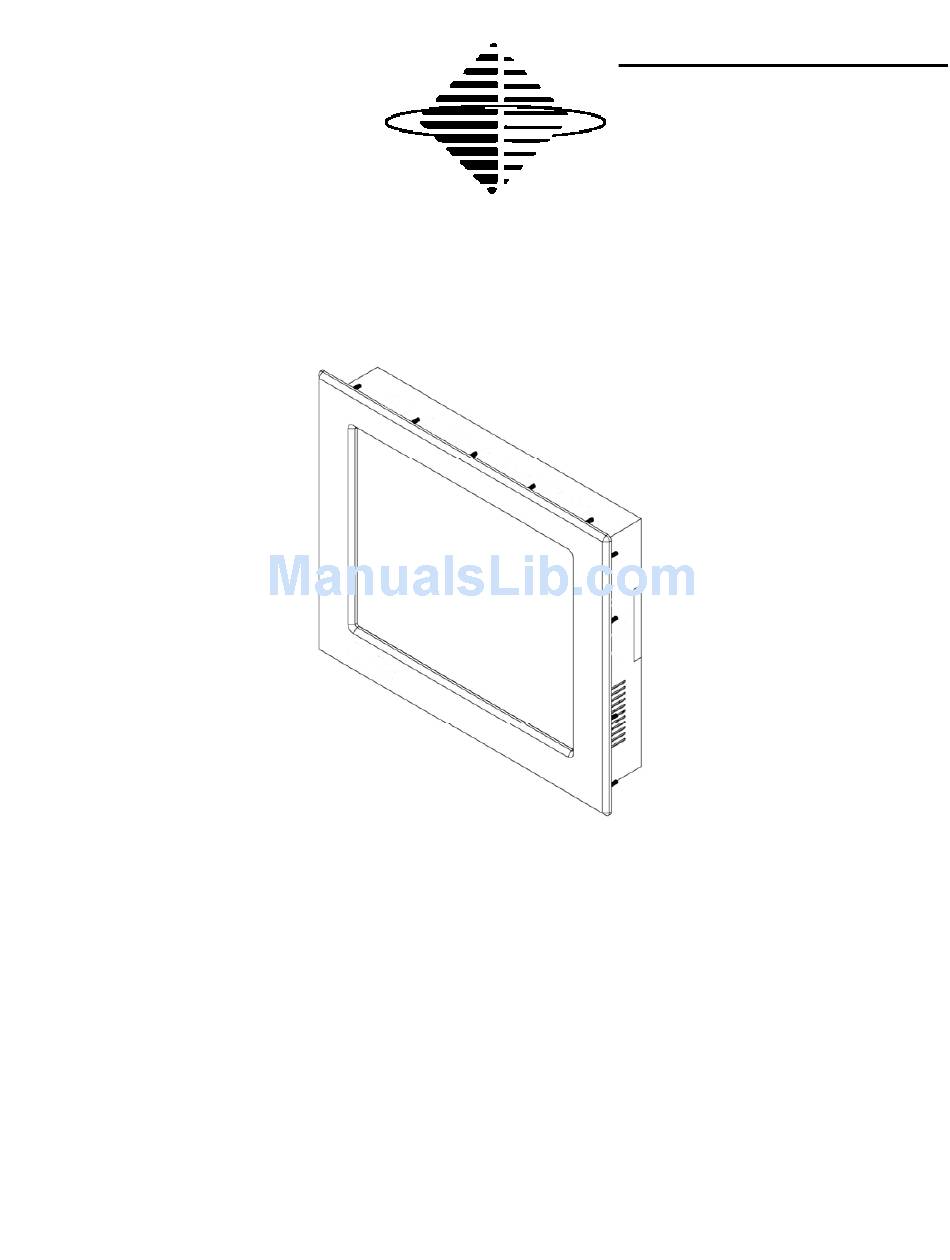

- Page 1 Solutions for Demanding Applications VARTECH S Y S T E M S I N C. 15.0” Panel Mount PC Model VTPC150P / PSS/ PHB / PSSHB User’s Guide Read these instructions completely before attempting to operate your new Panel Mount PC...
- Page 2 Revision History Date Rev No Summary Page 8/11/08 First Issue 10/13/08 Revised panel mounting drawing 12/08/08 Identify ports on bottom panel view 1/08/09 Add PHB & PSSHB 4 thru 6 15.0 Panel Mount PC 486-0002-01-03...
- Page 3 Safety Instructions • Read the Safety Instructions carefully and keep it for use later. • The chassis metalwork of the module must be installed properly to the main earthing termination for Class 1 equipment. • Care must be exercised in the a pplication of the system to prevent overheating. Ensure that the ambient temperature around the system does not exceed 60°C and provide adequate means of ventilation to achieve this.
-
Page 4: Standard Version
Standard Technical Specifications: LCD Monitor: STANDARD VERSION: 15.0” XGA TFT LCD Size / Type 1024 x 768 Native Resolution 600:1 Contrast Ratio Horizontal: 140° Viewing Angles Vertical: 120° 0.294mm Pixel Pitch Brightness (typical) 250 cd/m² Response Time (typical) 16.7 million Colors Supported: HIGH-BRIGHT VERSION: 15.0”... -
Page 5: Computer System
Computer System: 1.73GHz Intel T5300 Core 2 Duo Processor Processor DDR2 533 DIMM 2 GB x 1 (expandable to 4GB) System Memory AMI BIOS BIOS 120 GB SATA Hard Drive Microsoft XP Professional (SP3) Operating System PCI x 1 (Optional) Expansion Slots Mini PCI x 1 PS/2 Keyboard Connector x 1... - Page 6 55% max RH NC (Ta > 50°C) Installation of Your Panel PC Packaged with each carton will be: 1 - VTPC150P / PSS /PHB / PSSHB 1 - AC Power Cable 1 - #10-32 Mounting Hardware 1 - Users Guide (Printed or on CD)
- Page 7 ATTENTION: Mounting nuts must be tightened to a to rque of 24 inch-pounds to provide a proper panel seal and avoid poten tial damage. Vartech Systems assumes no responsibility for water or c hemical damage to t he monitor or other equipment within the enclosure due to improper installation.
- Page 8 Connections to the Panel Mount PC Bottom Rear View - Connector Panel - Power Connection (Power In) The Panel Mount PC includes an AC line cord which is 6ft l ong. The power input receptacle is located on the bottom rear panel of the system. Serial Connections (COM 1-2) The Panel Mount PC is supplied with two se rial connectors configured for RS-232.
- Page 9 Panel Mount PC cl ear and free of exc essive dirt or other contaminants. Do not use water or any liquids on the Panel Mount PC. For Additional Assistance Contact Your VarTech Sales Representative Vartech Systems, Inc. 11529 Sun Belt Ct.
