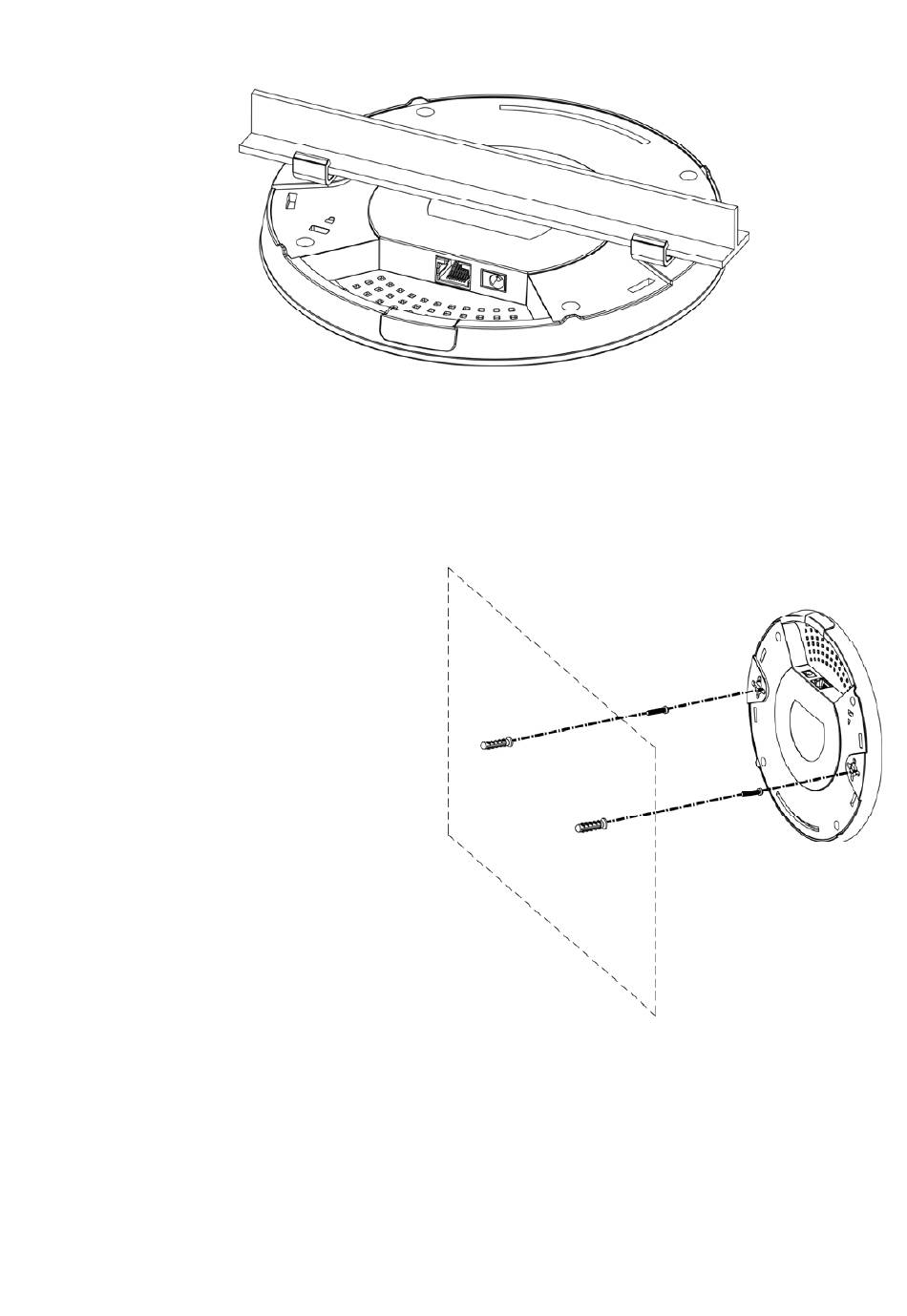

4. Attach the T-Rail brackets to the ceiling frame:
3 . 4 W a l l M o u n t i n g
3 . 4 W a l l M o u n t i n g
For wall-mounting, the VigorAP has
keyhole type mounting slots on the
underside. You can fit the AP at any axis
(i.e. 12, 3, 6 or 9 O'Clock) to allow for
cable entry from the most convenient
location if you are using side entry – note
the position of the side entry cable cutout.
A printed template is provided on the
VigorAP's packaging box to enable you
to space the screws correctly on the wall.
Fit screws into the wall using the
appropriate type of wall plug but do not
use the ceiling bracket – the VigorAP
hangs onto the screws.
Wall Mounting
