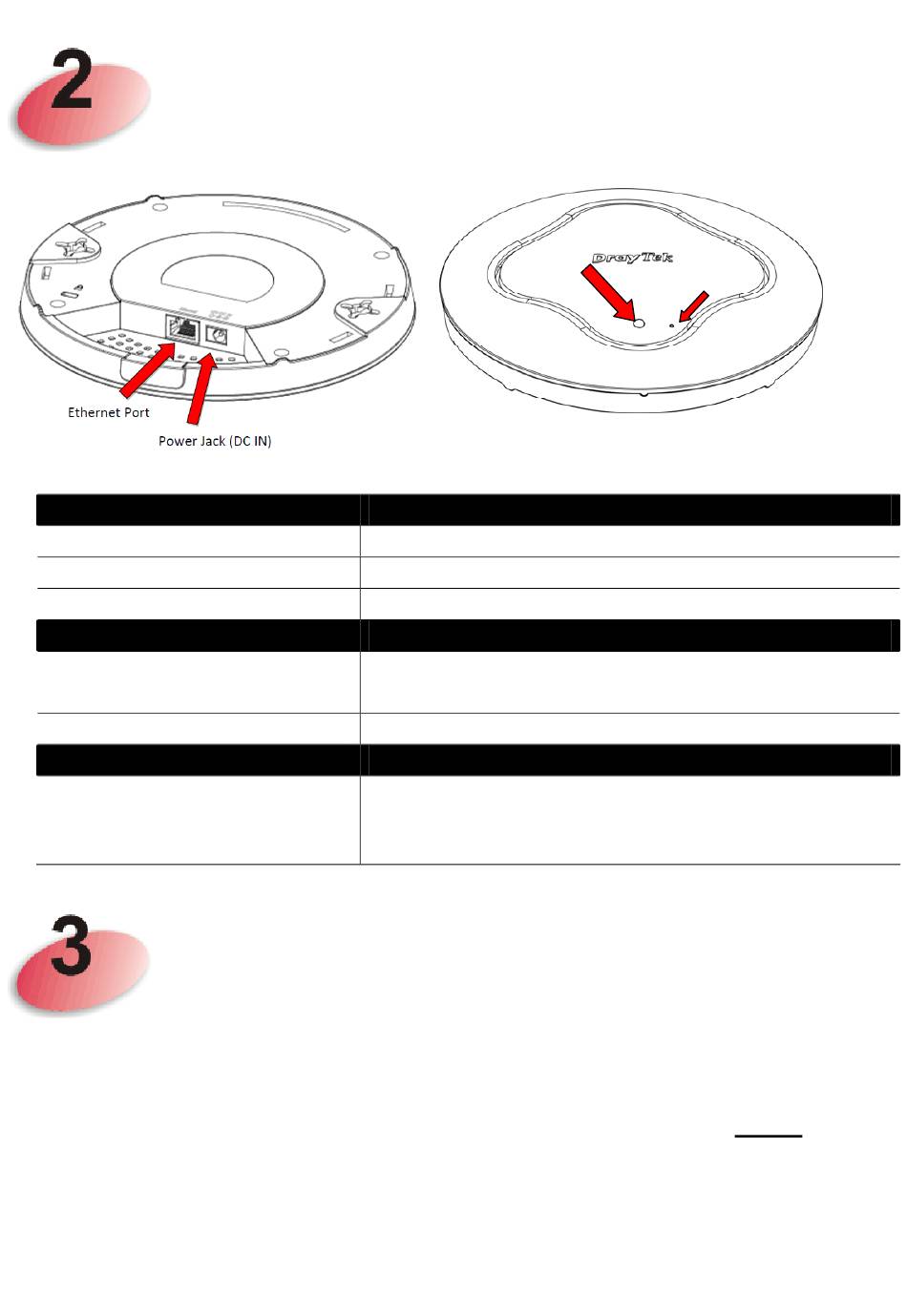

Product Layout

LED Colour

Blinking Blue

Purple

Orange

Interface

Ethernet Port (RJ-45)

Power Socket (DC In)

Hole

Factory Reset Button

Your VigorAP can be fitted to walls or ceilings and with the cable entry being from

behind or from the side. Due to the optimized signal pattern, we do not recommend

placing the VigorAP horizontally on a desk or shelf. Run your cables before you fit

the VigorAP or bracket to the ceiling/wall.

LED

Explanation

VigorAP is operating normally.

VigorAP is initialising

Firmware upgrade is in progress.

Explanation

Connects to LAN or router.

Supports PoE power & Gigabit (1000BaseT).

Connect to power adapter (if not using PoE)

Explanation

Insert a small item such as an unbent paperclip into

the hole and hold the button gently for 10 seconds.

The unit will restart with factory default settings.

Factory

Reset
