Monoprice DRM-1712F+ User Manual

DVI
(DRM-1712F*)
(DRM-1714F*)
USER MANUAL
DRM-1712F+ / DRM-1714F+
Package Contents
- 1 MONOPRICE DRM-1712F* or DRM-1714F+
DVI Selector
■ 1 user manual
■ 1 power adapter DC 9V
■ 2 rack rails, 8 screws for DRM-1714F+ only
Any thing missed, please contact with your vendor
Features
■ Resolution up to 1600x1200.
■ Supports the DDC2 standard for all input port.
■ Supports DVI-D.
■ Hot pluggable.
■ Auto skips over the power-off and unplugged cable.
■ 1U rack design for DRM-1714F\
Specification
Hardware Requirements

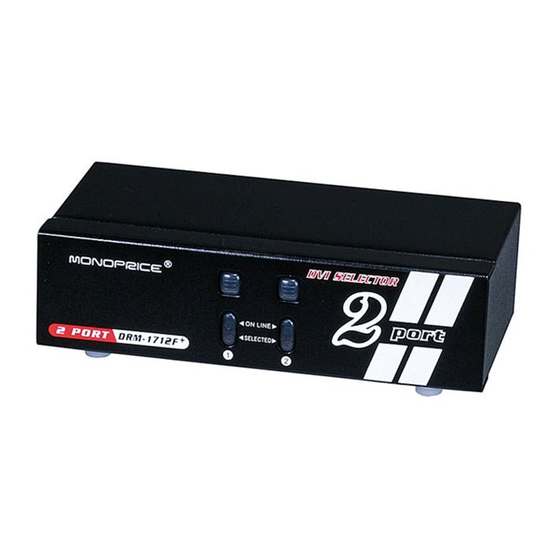

V1.2 FRONT VIEW
2. Port LEDs
■All the red LEDs flash while the power adapter is
well connected.
■ Grjeen LEDs light up while the PC has well
connected and starting operation.
■ Red LEDs light up while the PC has successfully
been selected.
Rear View
LPov^er Supply
Plug the DC9V power adapter
2. DVI;OUT Port Connector
Plug the monitor cable.
3. DVIjIN Port Connectors
Plug the extension cables from DVI port of PCs or DVI
output port of device.
i
Installation
Before the installation, making sure the selector and
monitor (projector) are turning off.
1. Making sure all equipments are turned off.
2. Plug the monitor cable into the DVI OUT port
Connector.
3. Plug the extension cables from DVI port of PCs into
the DVI IN port Connectors.
4. Plug the power adapter into the wall socket.
5. Connect the power adapter with the DVI selector.
6. Turn on the monitor first.
7. All red LEDs will flash back and forth, otherwise, go
back to check the step 4 and 5.
8. Turn on the PCs.
9. The LEDs green lights turn on while the PCs have well
been connected and maintaining the activation.
1. Port Selection Switches (Manual type)
Press the switch to access the selected PC.
