Monoprice 38161 Quick Install Manual

INTRODUCTION

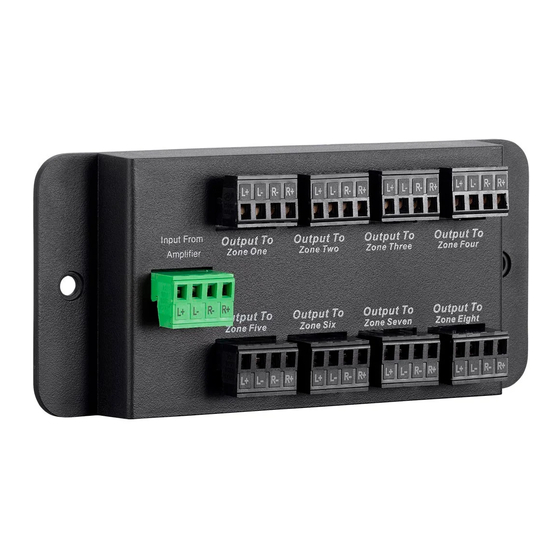

This 8-Channel Speaker Zone Hub is designed to connect up to eight pairs of speakers to a
single amplifier or receiver. It uses removable terminal blocks for easy connection for the
speaker wires. Note that this speaker selector does not include impedance matching
circuitry, so the use of impedance matching volume controls are highly recommended to
prevent damage to the amplifier caused by low impedance loads.

INSTALLATION

Perform the following steps to install this speaker selector.
1. Remove one of the black colored terminal blocks from the rear of the speaker
selector.
2. Strip approximately 1/4" of insulation from each end of each speaker wire.
3. Using a small flathead screwdriver, loosen the screws on the terminal block.
4. Insert each end of the left channel positive speaker wire into the L+ terminal and
the negative speaker wire into the L- terminal, then tighten the screws to secure
them in place.
5. Insert each end of the right channel positive speaker wire into the R+ terminal and
the negative speaker wire into the R- terminal, then tighten the screws to secure
them in place.
8-Channel Speaker Zone Hub
P/N 38161

Quick Install Guide
