Sanus Systems VMPL3 Assembling Instructions page 8

Step 4: Attach Low Profile Monitor Brackets to a television with a flat back.
NOTE: For televisions with a curved back, or an obstruction near the threaded insert proceed directly to Step 5.
Determine the diameter of the Bolt (O,P,Q,R) your television requires by hand threading them into the threaded insert on the back of the
television. If you encounter any resistance, stop immediately.
Once you have determined the correct diameter Bolt (O,P,Q,R), see the appropriate diagram below, thread the Bolt through the appropriate
Lock Washer (W,X,Y,Z), corresponding Washer (CC,DD), Low Profile Monitor Bracket (F) or Monitor Bracket Extension (B), and finally
into the television.
Make sure the Low Profile Monitor Brackets (F) are vertically centered and level with each other.
Tighten the Bolts (O,P,Q,R) securing the Low Profile Monitor Brackets (F) to the television.
M6
M4
Diameter Bolt
Diameter Bolt
Q
O
Y
W
DD
CC

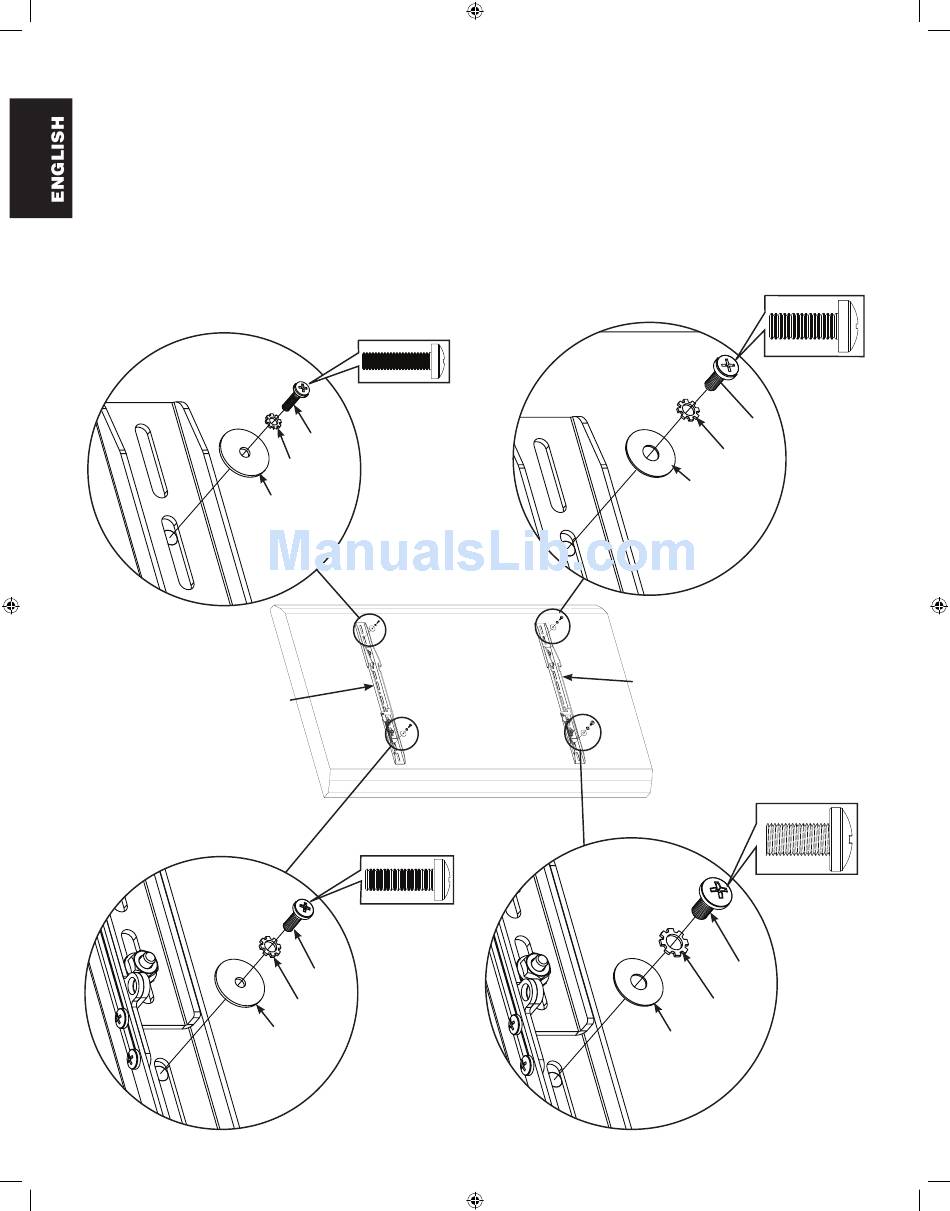

Diagram 4
F
F
M8
Diameter Bolt
M5
Diameter Bolt
R
P
X
Z
CC
DD
