NOTE: If you are using the Low Profile Monitor Brackets (F), proceed directly to Step 4 for televisions with a flat back and Step
5 for televisions with a curved back.
Step 2: Attach Tilting Monitor Brackets to a television with a flat back.
NOTE: For televisions with a curved back, or an obstruction near the threaded insert proceed directly to Step 3.
Determine the diameter of the Bolt (O,P,Q,R) your television requires by hand threading them into the threaded insert on the back of the
television. If you encounter any resistance, stop immediately.

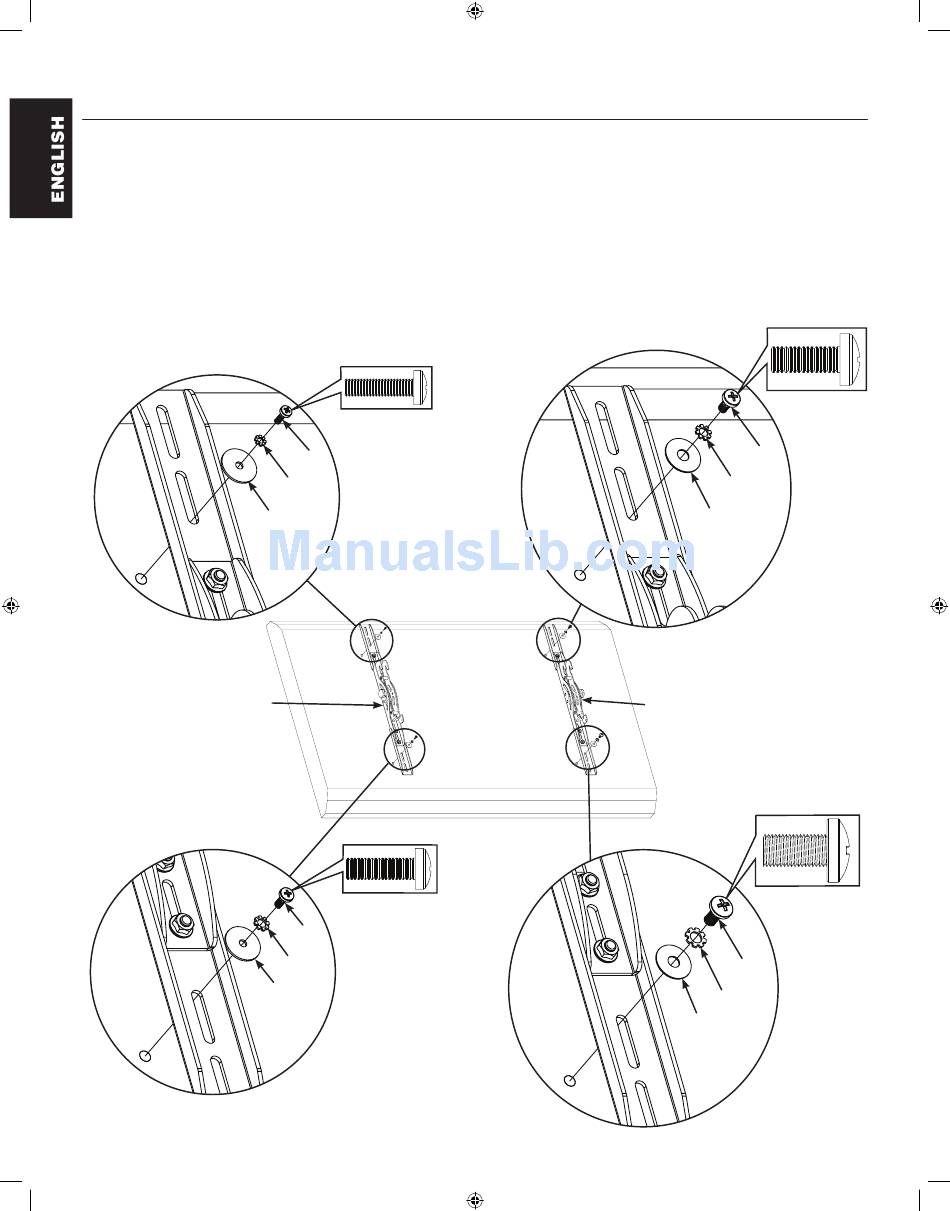

Once you have determined the correct diameter Bolt (O,P,Q,R), see the appropriate diagram below, thread the Bolt through the appropriate
Lock Washer (W,X,Y,Z), corresponding Washer (CC,DD), Tilting Monitor Bracket (D,E,) or Monitor Bracket Extension (B), and finally into
the television.
Make sure the Tilting Monitor Brackets (D,E) are vertically centered and level with each other.
Tighten the Bolts (O,P,Q,R) securing the Tilting Monitor Brackets (D,E) to the television.
M4
Diameter Bolt
M5
Diameter Bolt
VMPL3_051106_ML.indd 6
O
W
CC
D
P
X
CC
Diameter Bolt
Diagram 2
Diameter Bolt
M6
Q
Y
DD
E
M8
R
Z
DD
