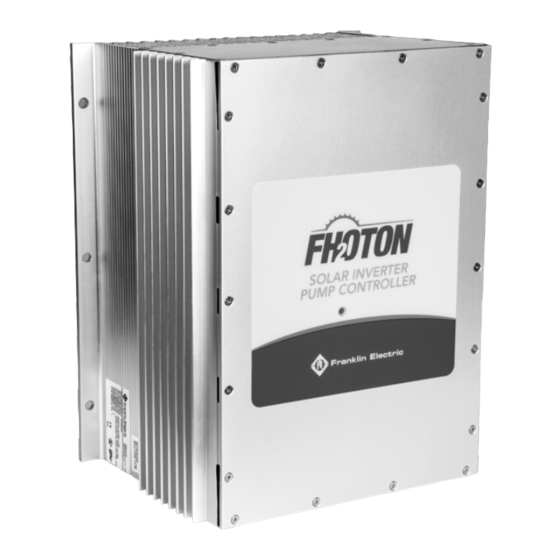

- Page 1 FHOTON™ Drive Installation Guide...
-
Page 2: Table Of Contents
FHOTON™ DRIVE INSTALLATION MANUAL TABLE OF CONTENTS Overview ............................................5 Descriptions and Features ......................................5 How it Works ..........................................6 Features ............................................7 Installation ............................................10 Controller Location Selection ......................................11 Mounting Procedure ........................................12 Wiring Connections ........................................12 DC Wiring Connections .........................................13 Flow Switch Wiring Connections ....................................14 Flow Switch Plumbing Installation ....................................15... - Page 3 Herewith, we declare under our sole responsibility that the Fhoton Solar Power Converters, models 58101300, 58101420, and 58103850 (followed by any combination of additional characters or numbers,) when bearing the CE mark, are in conformity with the provisions of the Low Voltage Directive (LVD) 2014/35/EU and the Electromagnetic Compatibility Directive (EMC) 2014/30/EU.
- Page 4 CAUTION Use the Fhoton™ Drive controller only with Franklin Electric motors as specified in this manual (see Table 4, page 19). Use of this unit with any other Franklin Electric motor or with motors from other manufacturers may result in damage to both motor and electronics.
-
Page 5: Overview
The Fhoton™ Drive continuously monitors system performance and incorporates a number of features for pump system protection. In the event of a fault, the Fhoton™ Drive will indicate the type of fault by a flashing red LED. (See Fault Codes and Troubleshooting on pages 20 &... -
Page 6: How It Works
A leading cause of pump motor failure is the stress applied to the motor during a full voltage start-up. The Fhoton™ Drive variable speed operation ramps up the speed smoothly, which reduces starting stress. -
Page 7: Features
Level Control Switch(es) Level control switch(es) can be wired into the Fhoton™ Drive for water level control. This is optional and is not required to run the Fhoton™ Drive. The controller can be used with none, one, or two control switches. This provides the user maximum adjustability when using the Fhoton™... - Page 8 35 Hz (rotor speed) and above, the electronic dry well protection algorithm is active. If the motor load falls below the built-in, dry well trip level while the rotor speed exceeds 35 Hz for a period of 3 seconds, the Fhoton™ drive will halt the motor. The red LED will begin a 1 flash sequence and continue this flash sequence for a duration of 10 minutes.
- Page 9 Open Phase (Open Circuit) The Fhoton™ Drive monitors each phase current to the motor. If one of the phases is near zero amps for a duration of 1 second, the Fhoton™ drive will halt the motor. The red LED will begin a 5 flash sequence and continue this flash sequence for a duration of 3 cycles.
-
Page 10: Installation
• Do not allow any unauthorized persons near the solar array and connection sites while power is applied. • It is strongly recommended that a DC rated disconnect box be used to disconnect the incoming DC power from the Fhoton™... -
Page 11: Controller Location Selection
2. The electronics inside the Fhoton™ Drive are air-cooled. As a result, there should be at least 18" (45.7 cm) both above and below to allow for air flow and proper cooling. If the Fhoton™ Drive is mounted under the PV solar array, make sure that it is at least 18"... -
Page 12: Mounting Procedure
ALLOW FIVE MINUTES FOR DANGEROUS INTERNAL VOLTAGE TO DISCHARGE BEFORE REMOVING FHOTON™ DRIVE COVER. The Fhoton™ Drive is not protected against a “bolted” short to ground at the motor cable terminals. Ensure that the motor leads have been checked for a possible short to ground BEFORE operating the drive. -
Page 13: Dc Wiring Connections
Figure 4: DC Wiring Connection CAUTION Only connect a photovoltaic solar array to the DC input of the Fhoton™ Drive. This controller is suitable for use on a circuit capable of delivering not more than 5,000 RMS symmetrical amps, 850 V DC maximum. -
Page 14: Flow Switch Wiring Connections
Flow Switch Wiring Connections The Fhoton™ Drive makes use of a flow switch to protect the centrifugal pump and motor when there is not enough power to generate proper flow. Use of the flow switch is required for installations to prevent running during deadhead/no flow conditions. -
Page 15: Flow Switch Plumbing Installation
Flow Switch Plumbing Installation WARNING Hazardous Pressure Present: Pressure at the flow switch must be limited according to the water temperature that the flow switch will see in service. Note that this includes the temperature that the water could reach due to heating by the surrounding environment. -
Page 16: Pump/Motor Wiring Connections
Control Switch Wiring Connections (Optional) The Fhoton™ Drive can be operated with control switches to control the ON/OFF pumping range. Use a normally closed low-voltage control switch with a contact rating suitable for instrumentation use (i.e. Max: 24 V 15mA): 1. -
Page 17: Control Switch Operation
Zero Control Switch Operation Lastly, the Fhoton™ Drive may be configured to not use a control switch. In this configuration the Fhoton™ Drive will always try to run the motor and pump water as long as there is sufficient power from the solar array, leave the jumper (on “J8”) in place, located immediately... -
Page 18: Start-Up And Operation
After all appropriate connections have been made, place the cover on the Fhoton™ Drive, then apply power to the controller. A steady green light in the center of the cover indicates that the Fhoton™ Drive has DC power connected. No light can indicate that the polarity is reversed, assuming sufficient DC voltage is available. -
Page 19: Three-Phase Motor Specifications
* Maximum cable length from the drive to the motor is 1000 ft (305 m). External filtering is required for motor cable lengths exceeding this maximum distance or nuisance tripping might occur. Contact Franklin Electric for additional assistance with external filtering for distances larger than 1000 ft (305 m). -
Page 20: Fault Codes And Troubleshooting
Motor Lead Installation NOTE: The included motor in the Fhoton™ SolarPAK does come with a factory installed individual conductor lead. To replace or install a new lead, please refer to the Franklin Electric AIM Manual for further information on motor lead installation and replacement Fault Codes and Troubleshooting The Fhoton™... - Page 21 Ensure array wiring is correct. Misconnected input leads. Check series/parallel connections. Overvoltage Incorrect sizing of solar array. Confirm array ratings are within Fhoton™ Drive input range. Motor/pump misaligned. Unit will attempt to free a locked pump. If it Locked Pump Pump bound up with sand or abrasive.
-
Page 22: Fhoton™ Drive Specifications
850 V, open circuit NOTE: Only connect a photovoltaic solar array to the DC input of the Fhoton™ Drive. This controller is suitable for use on a circuit capable of delivering not more than 5,000 RMS symmetrical amps, 850 V DC maximum. -
Page 23: Solar Panel Wiring Configurations
Solar Panel Wiring Configurations Solar Panels Wired in Series When solar panels are wired in series, the positive terminal of one solar panel is wired to the negative terminal of the next solar panel. When panels are connected in series: •... - Page 24 Solar Panels Wired in Combination Series/parallel combination wiring requires that at least two sets (or strings) of panels wired in series are connected in parallel. When panels are connected in combination: • Voltage accumulates (adds) for each panel in a single series circuit, but does not accumulate for additional strings wired in parallel. •...
-
Page 25: Fhoton™ Drive Dimensions
Fhoton™ Drive Dimensions Figure 13: Fhoton™ Drive Line Drawing Fhoton™ Drive Dimension Inches 15.75 11.06 12.76 9.17 13.58 7.87 2.17 0.39 12.36 1.59 5.79 7.87 3.22 Millimeters 40.5 NOTE: All dimensions are approximate Table 8: Fhoton™ Drive Dimensions... - Page 26 Notes...
- Page 27 Notes...
- Page 28 FE USA Technical Service Hotline 1.800.348.2420 9255 Coverdale Road, Fort Wayne, IN 46809 Tel: 260.824.2900 Fax: 260.824.2909 www.franklinwater.com Form 224478101 Rev. 000 06/18...
