Power and Control Connections

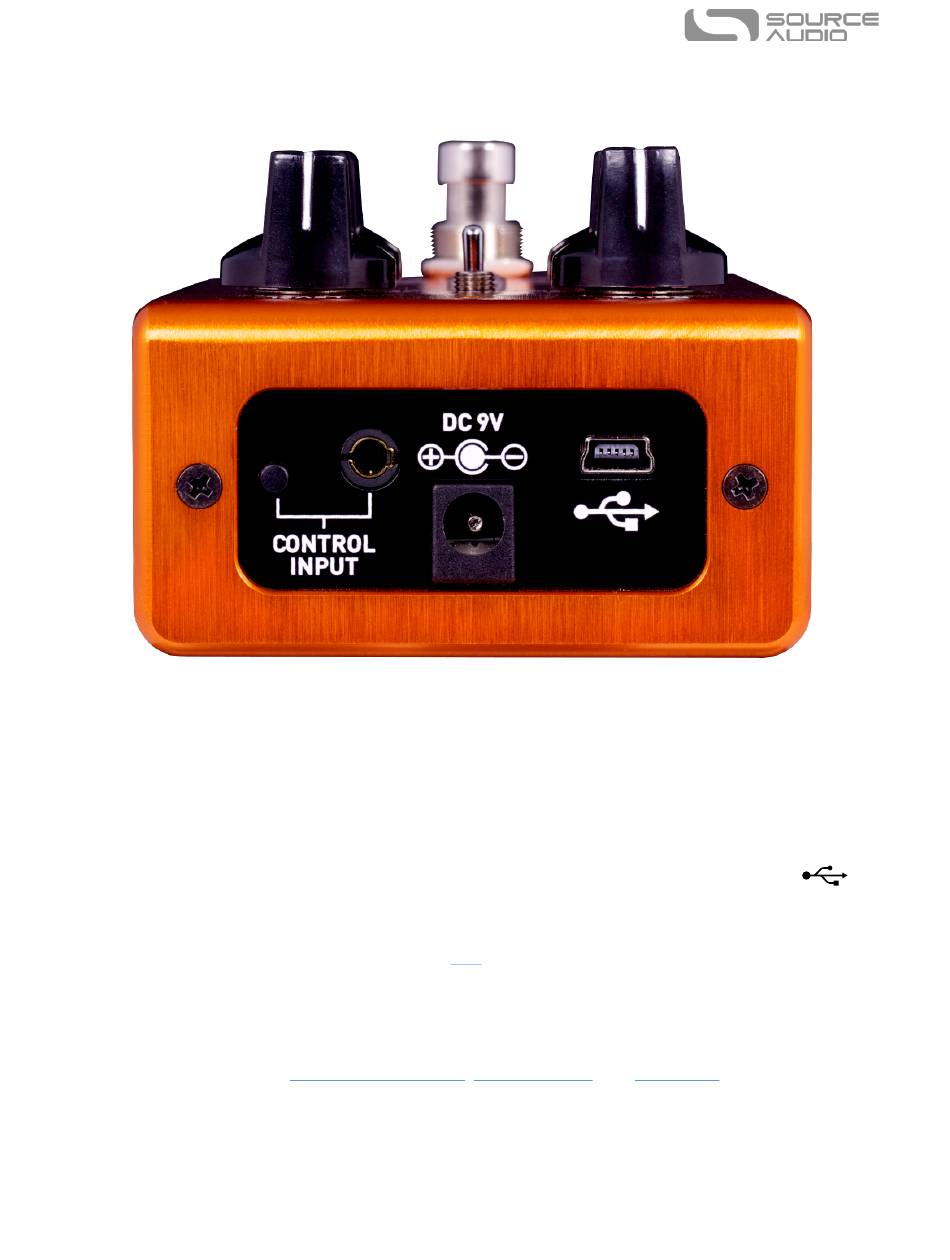

DC 9V (Power)
Connect t o t he i ncluded 9 V olt D C p ower s upply. T he p ower s upply m ust b e r egulated a t 9 V olts
(direct c urrent), a ble t o s ource a t l east 1 80 m A ( milliamps) o f c urrent, a nd t he p lug s hould h ave a t ip-­‐
negative, s leeve-­‐positive p olarity ( the c enter t ip i s g round a nd t he s leeve i s p ower).
USB
Connect t o y our c omputer ( Mac o r W indows) t o t he A ftershock's U SB p ort ( denoted b y t he
icon) u sing a s tandard m ini U SB c able. T he A ftershock i s a c lass c ompliant U SB d evice, m eaning t hat i t
should b e r ecognized b y M ac a nd W indows c omputers a utomatically. F or m ore i nformation a bout
the A ftershock's U SB c apabilities, r efer t o t he
Control Input
The 3 .5 m m C ontrol I nput p ort c onnects t o e xternal c ontrol d evices s uch a s t he D ual E xpression
Pedal, R eflex U niversal E xpression P edal, N euro H ub, a nd H ot H and M otion C ontroller. F or m ore
information, r efer t o t he
User's G uide.
SA246
U SB s ection o f t he U ser's G uide.
E xpression P edal I nput,
Aftershock B ass D istortion U ser's G uide
H ot H and I nput, a nd N euro H ub s ections o f t he
