DENTAURUM palexx click Instructions For Use

9. Availability
Description straight legs bent legs Quantity
602-830-11 602-831-11 1 piece

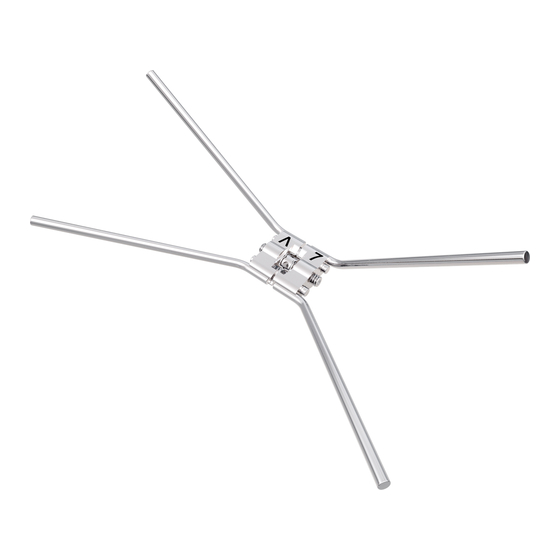

palex click Mini – 7
®
602-830-31 602-831-31 10 pieces
(Expansion 7 mm)
602-830-55 602-831-55 50 pieces
palex click 602-832-11 602-890-11 1 piece
®
Medium – 10 602-832-31 602-890-31 10 pieces
(Expansion 10 mm) 602-832-55 602-890-55 50 pieces
602-834-11 602-835-11
palex ® click 1 piece
Maxi – 12 602-834-31 602-835-31 10 pieces
(Expansion 12 mm) 602-834-55 602-835-55 50 pieces
All packages with safety key
611-120-00
Safety key 10 pieces
Universal bending tool 611-122-00 1 piece
#
Information for the doctor / patient
Before the palex click appliance is cemented into position, turn the spindle
®
(screw) slightly 2 – 3 quarter turns in the direction of the arrow to test the
movability. Then turn back to the original position.
Turn the palex click screw only in the direction of the arrow. Opening and
®
closing the screw several times during the treatment can cause its malfunction.
The finished palex appliance is cemented into position in the usual manner.
®
Please observe the instructions from the cement manufacturer.
Following this, the screw is turned four times by 90° using the blue
safety key (REF 611-120-00) for this purpose. One full 360° turn of the
spindle = 0.8 mm expansion.
The patient should turn the screw two times by 90° both in the morning
and evening (according to your in structions) until the desired expansion
is achieved.
10. With reference to our quality standards
Dentaurum ensures a faultless quality of the products manufactured
by us. These recommendations are based upon our own experiences.
The user himself is responsible for the processing of the products.
Responsibility for failures cannot be taken, as we have no influence on
the processing on site.
11. Explanation of symbols used on the label
Please refer to the label. Additional information can be
found at www.dentaurum.com (Explanation of label symbols
REF 989-313-00).
Important: Use only the blue safety key supplied, as this cannot accidentally
be swallowed.
Regular visits are recommended to monitor progress.
The palex ® click appliance is secured against unwanted turning-back, after
the desired degree of expansion is achieved, by fitting a ligature or blocking
with acrylic. For stabilization the appliance should remain in the mouth for
approximately 2 – 3 months.
A retainer should be worn following removal of the palex ® click appliance.
The product should not be used, if there is a known allergic reaction
to one or more of the material components.
 For more information on our products,
Â
please visit www.dentaurum.com
 Our orthodontic technicians are available to answer
Â
any questions you may have regarding our products:
Customer Service: Phone 800 523 3946
info@dentaurum-us.com
Date of information: 10/18
Subject to modifications
Dentaurum Inc. | 2050 Cabot Boulevard West, Suite 100 | Langhorne, PA 19047 I USA
Phone + 1 - 800 - 523 - 3946 I Fax + 1 - 800 - 553 - 6389 | www.dentaurum.com I info@dentaurum-us.com
