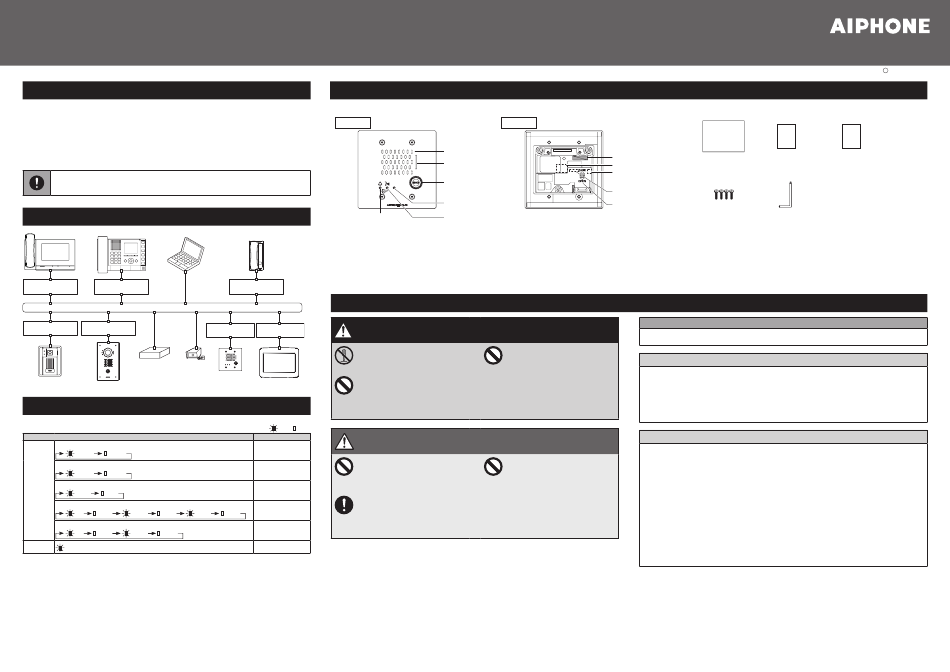

Installation Manual
Introduction
• Read this manual before installation and connection.
Read the "Setting Manual" and "Operation Manual". The manuals can be downloaded from our
homepage at "https://www.aiphone.net/product/support/" free of charge. (The manuals will be
available from 9 November 2018 onwards.)
• After completing installation and connection, program the system according to the "Setting Manual".
The system cannot operate unless it is programmed.
• After performing installation, review with the customer how to operate system. Leave
documentation accompanying the Master Station with the customer.
Perform installation and connection only after gaining sufficient understanding of the
system and this manual.
The illustrations used in this manual may differ from the actual stations.
Example of System Configuration
IX-MV7-HB
IX-MV
PC (third party)
PoE switch
PoE switch
(third party)
(third party)
LAN
PoE switch
PoE switch
(third party)
(third party)
Network video
Network camera
recorder
(third party)
(third party)
IX-DA
IX-DVF
Status Indicator
Refer to "IX-SS-2G Operation Manual" for additional indicators not listed below.
Status (pattern)
Orange
Normal flashing
flashing
0.75 sec
0.75 sec
Rapid flashing
0.25 sec
0.25 sec
Long interval flashing
0.5 sec
4 sec
Long irregular flashing
1
0.25
0.25
0.25
0.25
sec
sec
sec
sec
sec
Short irregular flashing
1
0.25
0.25
0.25
sec
sec
sec
sec
Blue light
IX-SS-2G
(Audio Only Door Station)
Part Names and Accessories
IX-SS-2G
Front view
Call indicator (Green)
IX-RS-B
PoE switch
(third party)
Precautions
PoE switch
PoE switch
Warning
(third party)
(third party)
Do not disassemble or modify the
device.
May cause fire or electrical shock.
Do not, under any circumstances,
IX-SS-2G
IXW-MA
open up the device.
Voltage within some internal
components may cause electrical
shock.
: Lit
: Off
Meaning
Caution
Booting
Do not install or connect the
Device error,
device with the power on.
Startup error
May cause electrical shock or
Communication
malfunction.
failure
Do not turn on power without first
Firmware version
checking to make sure the wiring
0.25
updating
is correct and there are no
sec
improperly terminated wires.
Initializing
May cause fire or electrical shock.
Standby
Back view
Speaker
Microphone
Call button
Status indicator
(Orange/Blue)
Communication indicator
(Orange)
* Accessible when terminal cover is opened
Negligence could result in death or serious injury.
The device is not designed to
explosion-proof specifications.
Do not install or use in an oxygen
room or other such locations
filled with volatile gases.
May cause fire or explosion.
Negligence could result in injury to people or damage to
property.
Do not put your ear close to the
speaker when using the device.
May cause harm to the ear if a
sudden loud noise is emitted.
Included accessories
MAC address
Installation Manual ×2
Product
LAN port *
(English, Japanese)
warranty
Reset button *
(Japanese) ×1
Low-voltage line connection
terminal *
Terminal cover
Special screws
Special screwdriver
×4
×1
General Precautions
• Install low-voltage lines at least 30cm (11") away from high-voltage lines (AC100V, 200V), especially inverter
air conditioner wiring. Failure to do so may result in interference or malfunction.
Notice
• The illustrations and images used in this manual may differ from the actual items.
• If the device is used in areas where there are business-use wireless devices such as a transceiver or mobile
phones, it may cause malfunction.
• If the device is installed close to a light dimmer, an inverter electrical appliance or the remote control unit of a
hot-water system or floor-heating system, it may create interference and cause a malfunction.
• If the device is installed in an area with an extremely strong electrical field, such as in the vicinity of a
broadcasting station, it may create interference and cause a malfunction.
Precautions for mounting
• Installing the device in the following locations could cause malfunction:
- Locations that get hot
Close to a heater, boiler, etc.
- Locations where there is risk of exposure to liquid, dust, oil, or chemicals
- Locations with high humidity
Bathroom, basement, greenhouse, etc.
- Locations with low temperature
Inside a cold storage warehouse, the front of a cooler, etc.
- Locations directly exposed to steam or oil smoke
Next to heating devices or a cooking space, etc.
- Sulphurous environments such as a hot spring area
- Locations close to the sea or directly exposed to sea breeze
• If existing wiring is used, the device may not operate properly. In that case, it will be necessary to replace the
wiring.
• Do not, under any circumstances, use an impact driver to fasten screws. Doing so may cause damage to the
device.
Issue Date: Oct. 2018 FK2455 B P1018 MQ 60409
Notice
(IX Manuals and
Software) ×1
