Kobold KAL Operating Instruction

Calorimetric flow monitoring device
Hide thumbs Also See for KAL:

Advertisement

Quick Links

Download this manual
Operating Instruction
for
Calorimetric Flow Monitoring Device
Model: KAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the KAL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kobold KAL

Summary of Contents for Kobold KAL

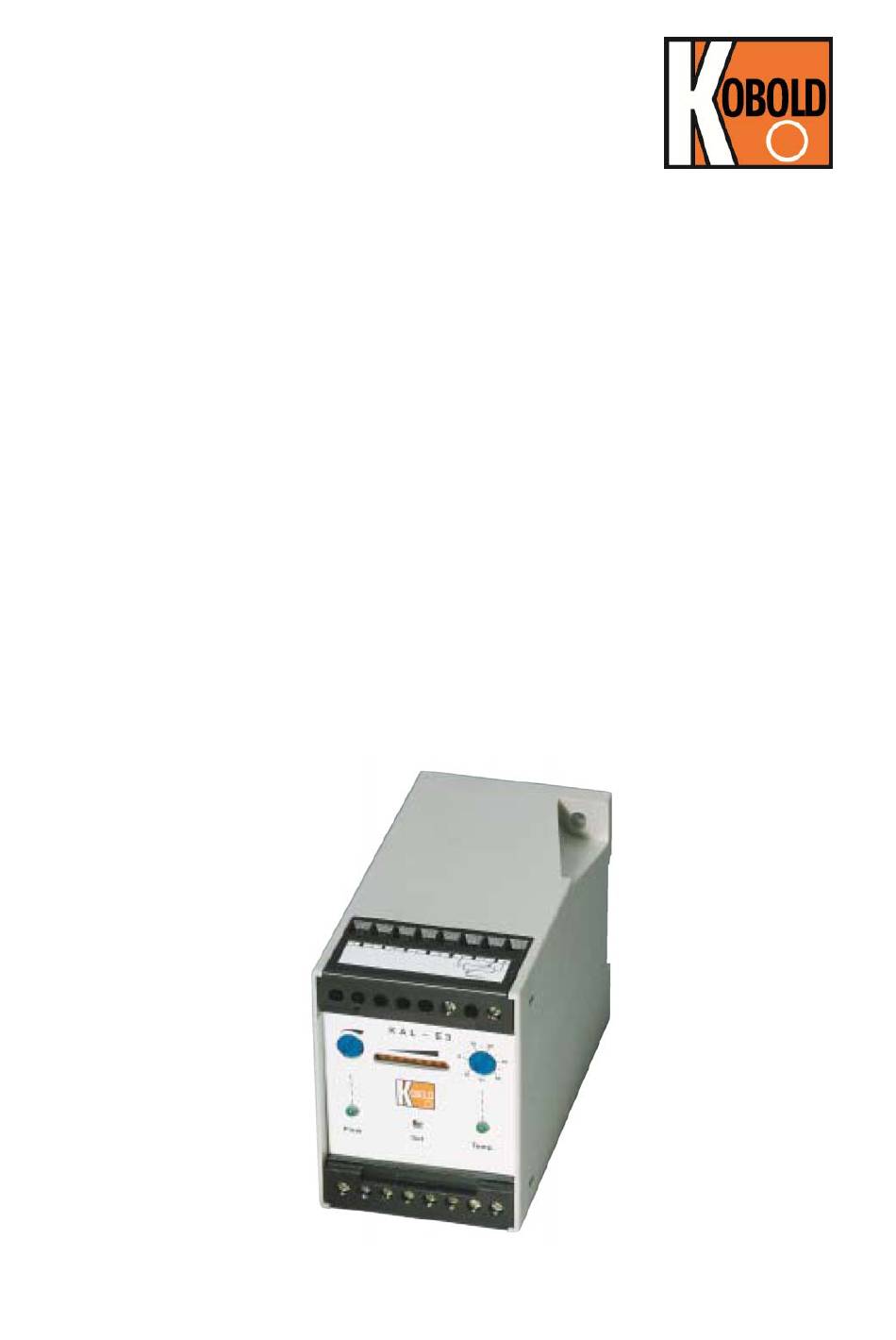

  • Page 1 Operating Instruction Calorimetric Flow Monitoring Device Model: KAL...

  • Page 2: Table Of Contents

    14. Order Codes ....................12  15. Dimensions ....................12  16. Disposal ...................... 13  17. EU Declaration of Conformance ..............14  18. UK Declaration of Conformity ..............15  Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com...

  • Page 3: Note

    If you need an instruction manual that corresponds to the purchased product version, you can request it from us free of charge by email (info.de@kobold.com) in PDF format, specifying the relevant invoice number and serial number. If you wish, the operating instructions can also be sent to you by post in paper form.

  • Page 4: Instrument Inspection

    Warning: Dangerous electrical voltage Warning Warning 2.3. As per PED 2014/68/EU for KAL-11.. and KAL-12.. In acc. with Article 4 Paragraph (3), "Sound Engineering Practice", of the PED 2014/68/EU no CE mark. Table 8, Pipe, Group 1 dangerous fluids 3. Instrument Inspection These devices are checked before dispatch and sent away in perfect condition.

  • Page 5: Intended Use

    4. Intended Use The KAL is to be installed only in the specified applications. Every usage which exceeds the specifications is considered to be non-specified. Any damages resulting therefrom are not the responsibility of the manufacturer. The user assumes all risk for such usage. The application specifications include the installation, start-up and service requirements specified by the manufacturer.

  • Page 6: Operating Principle

     Ensure that the permitted maximum operating pressure and temperatures for the device are not being exceeded. (See Technical Data in the Datasheet) Installation: Mount the sensor in the pipe (KAL-1...)- in a sleeve welded to the pipe (KAL-2...). Fitting position: The function of the sensor is not dependent on their fitting position, provided that the pipe is completely filled with flow medium.

  • Page 7: Electrical Connection

    DC voltage supply 24 VDC + 15%, - 10% AC voltage supply 230 VAC, 110 VAC, 24 VAC +/- 10%, 50-60 Hz Temperature relay only on models KAL-E3. The relays are illustrated in fallen state. Note KAL K08/0525 Page 7...

  • Page 8: Limiting Contacts

    Fill pipe with flow medium. 9.4. Commission electronic circuitry (switch on supply voltage) 9.5. Only on model KAL-E-3... Set temperature potentiometer (2) to left-hand stop. 9.6. Zero-point alignment. Briefly activate the "SET" key (5) (using a suitable object e.g. ball point pen) 9.7.
  • Page 9 It is possible at any time to reset the electronic circuitry to the full range  Flow potentiometer (1) at right-hand stop  (Only on KAL E3; Temperature potentiometer (2) to left hand-stop)  Press the SET key (5) and hold in position until the FLOW LED stops The device has now been reset into basic functioning mode.
  • Page 10 X X X ö Flow<switch point Flow LED off Flow relay open Only KAL-E-3... With more than 10 m cable between sensor and electronic circuitry, as well as increased accuracy when measuring temperature. Temperature alignment  Caution! Disconnect from power supply.

  • Page 11: Commissioning

    (1) Potentiometer (2) Potentiometer Setting of flow switch Setting of temperature Zero-point alignment-turn to left-hand stop switch point (only KAL E3) -Extending measuring range -turn to right-hand stop (3) LED trend display for flow speed and switch point (4) LED temp is...

  • Page 12: Maintenance

     Power failure 13. Technical Information Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com 14. Order Codes Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com 15.

  • Page 13: Disposal

    16. Disposal See “General Safety Instructions” - via the QR code on the device or via www.kobold.com KAL K08/0525 Page 13...

  • Page 14: Eu Declaration Of Conformance

    17. EU Declaration of Conformance We, KOBOLD Messring GmbH, Nordring 22-24, 65719 Hofheim, Germany, declare under our sole responsibility that the product: KAL-E1... KAL-E3 and KAL-EH1…KAL-EH3 Calorimetric flow monitoring device to which this declaration relates is in conformity with the following EU directives...

  • Page 15: Declaration Of Conformity

    18. UK Declaration of Conformity We, KOBOLD Messring GmbH, Nordring 22-24, 65719 Hofheim, Germany, declare under our sole responsibility that the product: KAL-E1... KAL-E3 and KAL-EH1…KAL-EH3 Calorimetric flow monitoring device to which this declaration relates is in conformity with the following UK directives stated below: S.I.
