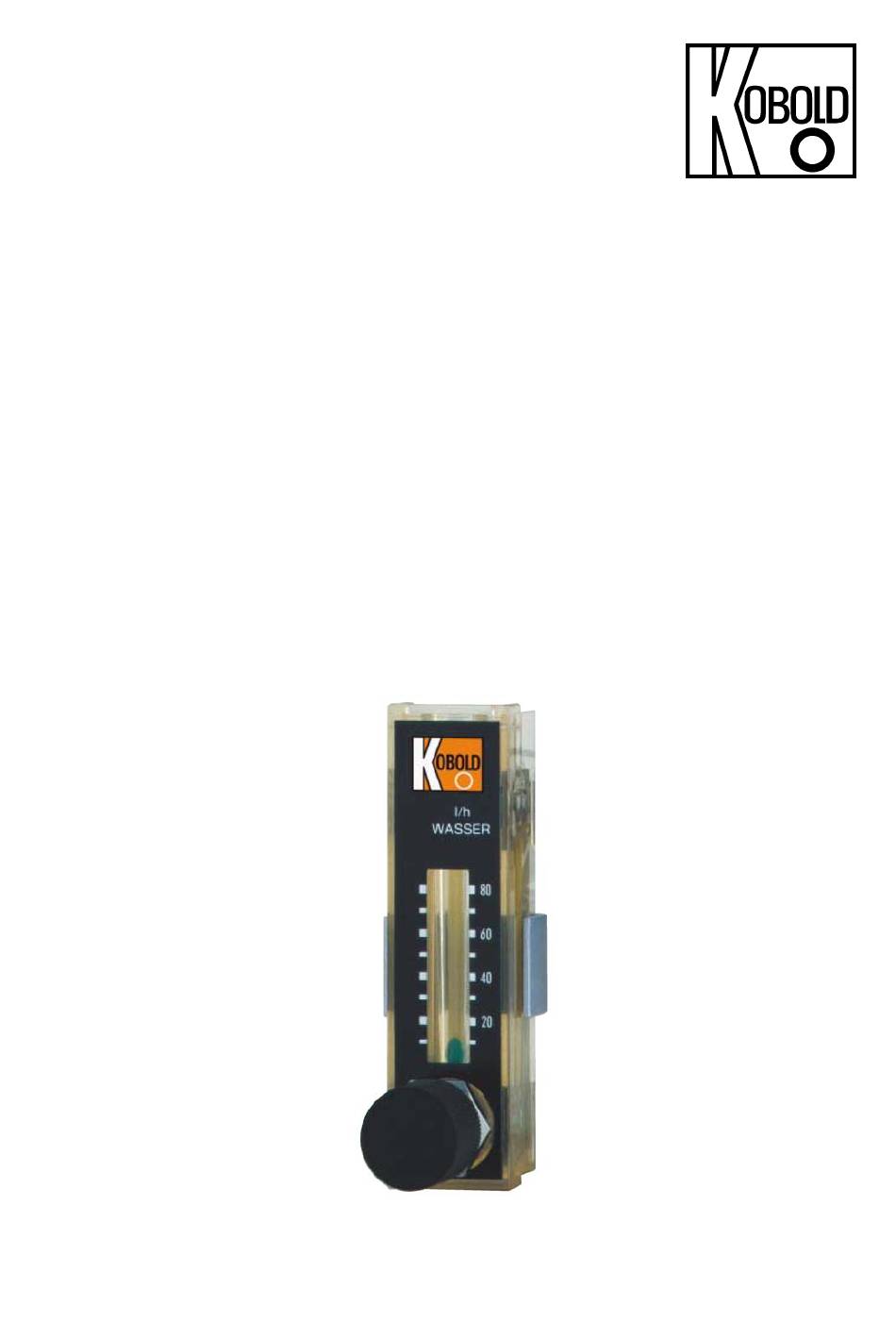

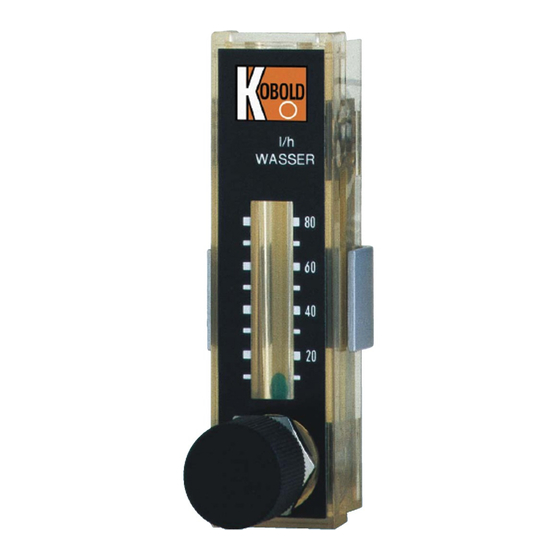

- Page 1 Operating Instructions Flow meter for Very Low Flows Model: KSV...
- Page 2 EU Declaration of Conformance ..............7 UK Declaration of Conformity ................ 8 Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com page 2 KSV K05/0322...
- Page 3 Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The instruction manuals on our website www.kobold.com are always for currently manufactured version of our products. Due to technical changes, the instruction manuals available online may not always correspond to the product version you have purchased.
- Page 4 4. Regulation Use Any use of the Flow Meter, model: KSV, which exceeds the manufacturer’s specifications, may invalidate its warranty. Therefore, any resulting damage is not the responsibility of the manufacturer. The user assumes all risk for such usage. 5. Operating Principle The KSV flow meter for liquids or air operates on the suspended float principle.
- Page 5 7. Technical Information Connection: 1/8” NPT female Option: hose connector, Ø 8 mm, polyamide straight version (order no..G) angle version (order no..W) plastic compression fitting (order no..K) Inlet & outlet: horizontal Measuring accuracy: ± 6 % of full scale value Repeatability: 1 % of full scale value Operating pressure:...
- Page 6 8. Order Codes Order details (Example: KSV 1404 L, material combination IV (PSU, VA) with control valve. Meas. range 50 – 150 Nl/h air) Water Float with control valve without control valve material combination material combination (Add suffix “..L” to code) Nl/h* 0.25-1.5 Glass...
- Page 7 10. EU Declaration of Conformance We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Flowmeter for very Low Flows model: KSV -... to which this declaration relates is in conformity with the standards noted below:...
- Page 8 11. UK Declaration of Conformity We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Flowmeter for very Low Flows model: KSV -... to which this declaration relates is in conformity with the standards noted below:...
