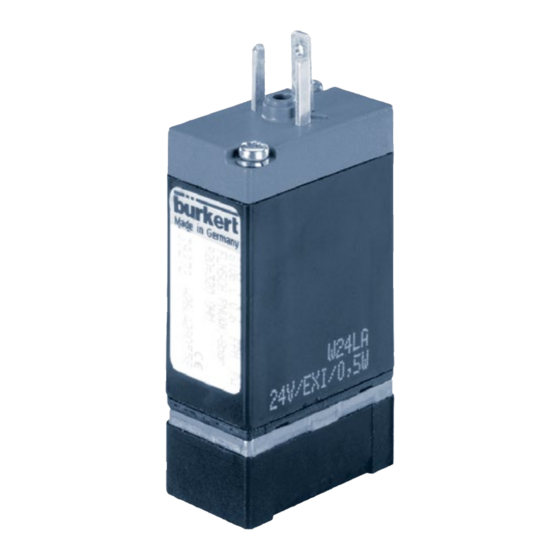

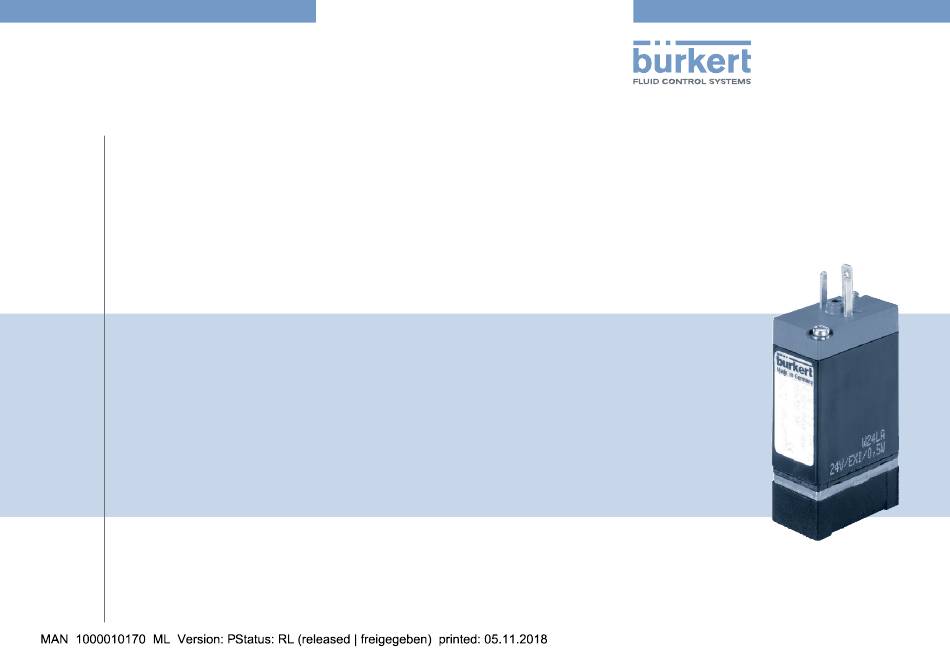

- Page 1 PTB 01 ATEX 2175 Solenoid coil Type AC21 Magnetspule Typ AC21 Bobine magnetique AC21 Device with II 2G EX i approval Geräte mit II 2G EX i Zulassung Appareils avec mode de protection II 2G EX i Operating Instructions Bedienungsanleitung...
- Page 2 We reserve the right to make technical changes without notice. Technische Änderungen vorbehalten. Sous réserve de modifications techniques. © 2002 - 2018 Bürkert Werke GmbH & Co. KG Operating Instructions 1810/15_EU-ML_00804563/ Original DE...
-
Page 3: Table Of Contents
PTB 01 ATEX 2175 Contents: Operating instructiOns ..........4 technical data ..............8 1.1 Definition of terms ............4 6.1 Conformity ..............8 1.2 Symbols ............... 4 6.2 Standards ..............8 6.3 Operating conditions ........... 8 authOrized use ............... 5 installatiOn ..............12 2.1... -
Page 4: Operating Instructions
PTB 01 ATEX 2175 Operating instructions Operating instructiOns Symbols The operating instructions describe the entire life cycle of the device. Danger Keep these instructions in a location which is easily accessible to every user and make these instructions available to every new Warns of an immediate danger. owner of the device. ▶ Failure to observe the warning may result in a fatal or serious injury. Operating instruction contain important information. Warning ▶ Read the operating instructions carefully and follow the safety instructions in particular. -
Page 5: Authorized Use
PTB 01 ATEX 2175 Authorized use authOrized use EX approval The EX approval is only valid if the modules and components unauthorized use of the solenoid coil ac21 may be dangerous authorized by Bürkert are used as described in these operating to people, nearby equipment and the environment. -
Page 6: Basic Safety Instructions
PTB 01 ATEX 2175 Basic safety instructions Basic safety instructiOns These safety instructions do not consider any contingencies risk of explosion. or incidents which occur during installation, operation and ▶ The device is a closed system and must not be modified in maintenance. any way. The operator is responsible for observing the location-specific A device which has already been used in a non-hazardous “i” safety regulations, also with reference to the personnel. circuit must no longer be used in the hazardous “i” circuit, as safety cannot be guaranteed. ▶ Use the device in the hazardous “i” circuit only. danger – high pressure. ▶ Devices which were used in a non-hazardous “i” circuit must When reaching into the system, there is an acute risk of injury. be identified after they have been removed, denoting that ▶ Before working on the device or system, switch off the pres- their use is prohibited in the hazardous “i” circuit. sure. Vent or drain lines. The solenoid coil and valve body form a closed system after ▶... -
Page 7: General Information
PTB 01 ATEX 2175 General information general infOrmatiOn to avoid the risk of explosion, the following must be observed for operation in explosion-risk areas: Contact addresses ▶ Information on the temperature class, ambient temperature, germany degree of protection and voltage on the type label for explosion- Bürkert Fluid Control Systems risk areas. Sales Center ▶ Installation, operation and maintenance may only be performed Christian-Bürkert-Str. 13-17... -
Page 8: Application Conditions Of The Devices
PTB 01 ATEX 2175 Application conditions of the devices applicatiOn cOnditiOns Of the technical data devices Conformity Individual assembly, block assembly The solenoid coil type AC21 conforms to the EU Directives as per the EU Declaration of Conformity (if applicable). The solenoid coils type AC21 are suitable for individual assembly and for block assembly. Standards Operating temperature range • EN 60079-0:2018; EN 60079-11:2012 For each type observe the operating temperature range specified The applied standards, which are used to demonstrate con- in the Electrical Data. formity with the EU Directives, are listed in the EU Type Exami- nation Certificate and/or the EU Declaration of Conformity. Operating conditions 6.3.1 Type label Warning risk of explosion. - Page 9 PTB 01 ATEX 2175 Technical data 6.3.2 Coil dimensions length Width height Weight electrical PTB 01 ATEX 2175 [mm] [mm] [mm] connection II 2G Ex ia IIC T6 Gb 15.5 Without IEC Ex PTB 06.0102 Ex ia IIC T6 Gb...
- Page 10 PTB 01 ATEX 2175 Technical data 6.3.4 Use in temperature class T6 feature description value designation Ignition protection type Ex ia, Gas group II C VAR1 Special feature **** Example: Assembly of the wires with temper- max. permitted assembly max. per- customer-specific plug ature class ambient mitted power VAR2 Encryption of JW** Various lengths consumption temperature [°c]...
- Page 11 PTB 01 ATEX 2175 Technical data 6.3.5 Safety data version resis- minimum minimum type tance clamping current Group: II C r20 [Ω] voltage [ma] Ignition protection type: Ex ia Temperature class: Version which 16IA Max. permitted input voltage U : 35 V uses 300 Ω Max. permitted input current I : 0.9 A supply module Inductance L High-resistance 10.9...
-
Page 12: Installation
PTB 01 ATEX 2175 Installation installatiOn 6.3.7 Degree of protection Safety instructions degree of protection electrical connection with matching plug Danger connector Cable plug in accordance with EN danger of explosion! IP65 175301-803, form C The device is a closed system. It must not be removed. 2 pressed-in single wires risk of electric shock! Rectangular plug connection, 2-pole IP20 ▶ Before reaching into the device or the equipment, switch off the power supply and secure to prevent reactivation! ▶ The connection lines of the electromagnets must be per- manently installed in such a way that they are adequately protected from mechanical damage. -
Page 13: Installation Of Type 6106 With Type Ac21 Solenoid Coil
PTB 01 ATEX 2175 Maintenance, Troubleshooting Installation of Type 6106 with Type MAInTEnAnCE, AC21 solenoid coil trOuBleshOOting Safety instructions Any installation position. Preferably with solenoid system at the top. Warning → Clean the pipelines. danger of explosion caused by electrostatic charge! → Install a dirt trap upstream. Observe the direction of flow! If there is a sudden discharge from electrostatically charged devices or persons, there is a danger of explosion in the EX → Establish the fluidic connection. area. → Install. -
Page 14: Troubleshooting
PTB 01 ATEX 2175 Transport, Storage, Disposal Troubleshooting TrAnSPOrT, STOrAgE, DISPOSAl If malfunctions occur, ensure that: note → the device has been installed correctly, transport damages. → the device is not damaged, Inadequately protected equipment may be damaged during → all screws have been tightened, transport. → the polarity is correct (to ensure proper function, the appropriate ▶ During transportation protect the device against wet and dirt connection on the connector terminal is marked with “+”), in shock-resistant packaging. ▶ Avoid exceeding or dropping below the allowable storage → the pipelines are free. temperature. incorrect storage may damage the device. - Page 16 www.burkert.com...
