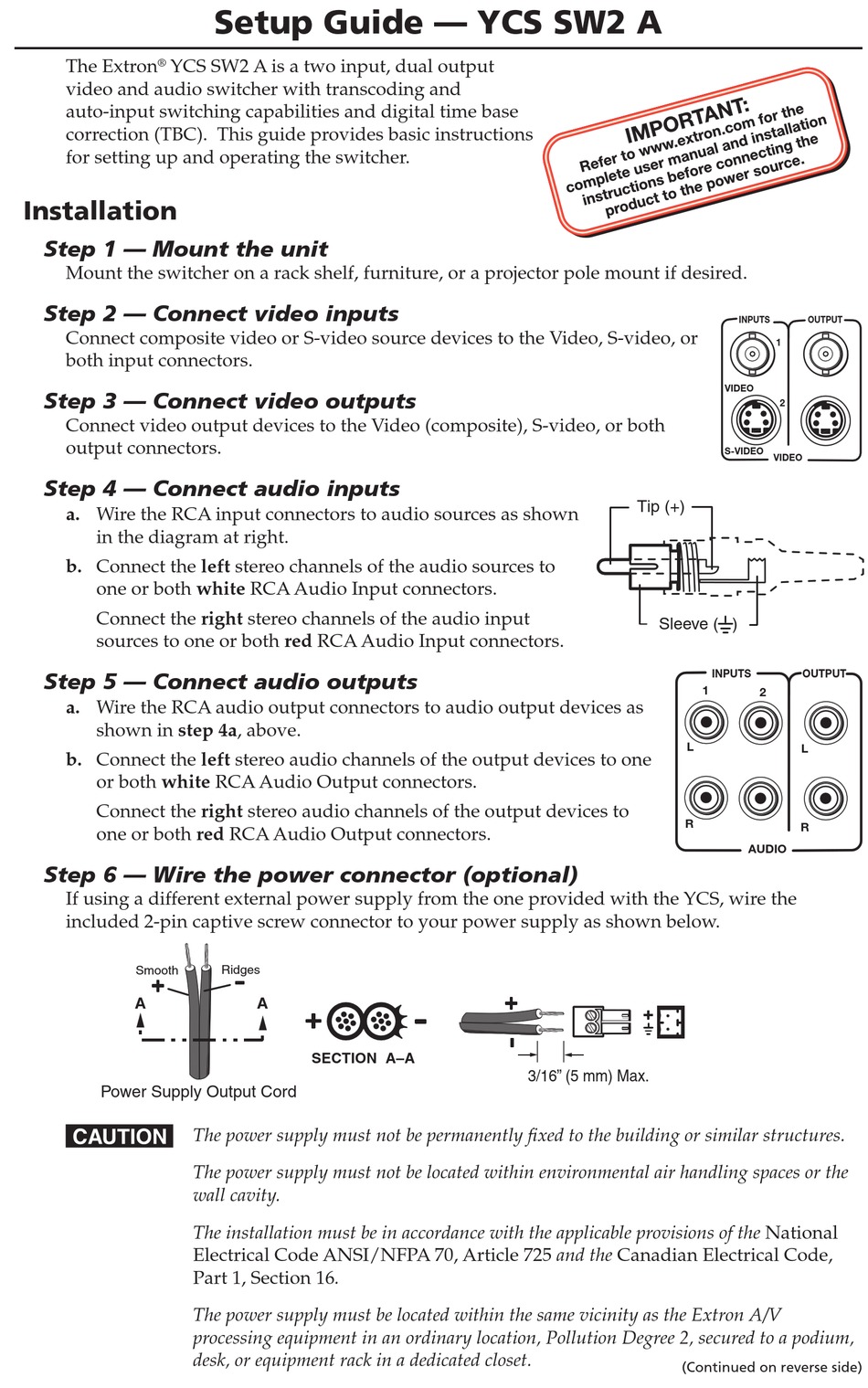

The Extron
YCS SW2 A is a two input, dual output
®
video and audio switcher with transcoding and
auto-input switching capabilities and digital time base
correction (TBC). This guide provides basic instructions
for setting up and operating the switcher.
Installation
Step 1 — Mount the unit
Mount the switcher on a rack shelf, furniture, or a projector pole mount if desired.
Step 2 — Connect video inputs
Connect composite video or S-video source devices to the Video, S-video, or
both input connectors.
Step 3 — Connect video outputs
Connect video output devices to the Video (composite), S-video, or both
output connectors.
Step 4 — Connect audio inputs
a. Wire the RCA input connectors to audio sources as shown
in the diagram at right.
b. Connect the left stereo channels of the audio sources to
one or both white RCA Audio Input connectors.
Connect the right stereo channels of the audio input
sources to one or both red RCA Audio Input connectors.
Step 5 — Connect audio outputs
a. Wire the RCA audio output connectors to audio output devices as
shown in step 4a, above.
b. Connect the left stereo audio channels of the output devices to one
or both white RCA Audio Output connectors.
Connect the right stereo audio channels of the output devices to
one or both red RCA Audio Output connectors.
Step 6 — Wire the power connector (optional)
If using a different external power supply from the one provided with the YCS, wire the
included 2-pin captive screw connector to your power supply as shown below.
Smooth
A
Power Supply Output Cord
C
The power supply must not be permanently fixed to the building or similar structures.
Setup Guide — YCS SW2 A
Ridges
A
SECTION A–A
The power supply must not be located within environmental air handling spaces or the
wall cavity.
The installation must be in accordance with the applicable provisions of the National
Electrical Code ANSI/NFPA 70, Article 725 and the Canadian Electrical Code,
Part 1, Section 16.
The power supply must be located within the same vicinity as the Extron A/V
processing equipment in an ordinary location, Pollution Degree 2, secured to a podium,
desk, or equipment rack in a dedicated closet.
Tip (+)
Sleeve ( )
L
R
3/16" (5 mm) Max.
(Continued on reverse side)
INPUTS
OUTPUT
1
VIDEO
2
S-VIDEO
VIDEO
INPUTS
OUTPUT
1
2
L
R
AUDIO
Advertisement
Table of Contents
Related Manuals for Extron electronics YCS SW2 A
Summary of Contents for Extron electronics YCS SW2 A
- Page 1 Setup Guide — YCS SW2 A The Extron YCS SW2 A is a two input, dual output ® video and audio switcher with transcoding and auto-input switching capabilities and digital time base correction (TBC). This guide provides basic instructions for setting up and operating the switcher.
-
Page 2: Application Diagram
Setup Guide — YCS SW2 A, cont’d Always use a power supply specified by Extron for the YCS SW2 A. Use of an unauthorized power supply voids all regulatory compliance certification and may cause damage to the supply and the YCS. Step 7 — Enable auto-input switching (optional) To set up the YCS to automatically select the active, connected input: a. Use two jumper wires to connect pins 1 and 2 and pins 2 and CONTACT 3 of the provided 3-pin captive screw connector.
