Extron electronics six input dual output, transcoding switcher specification sheet
Hide thumbs Also See for YCS SW6 MX:

Advertisement

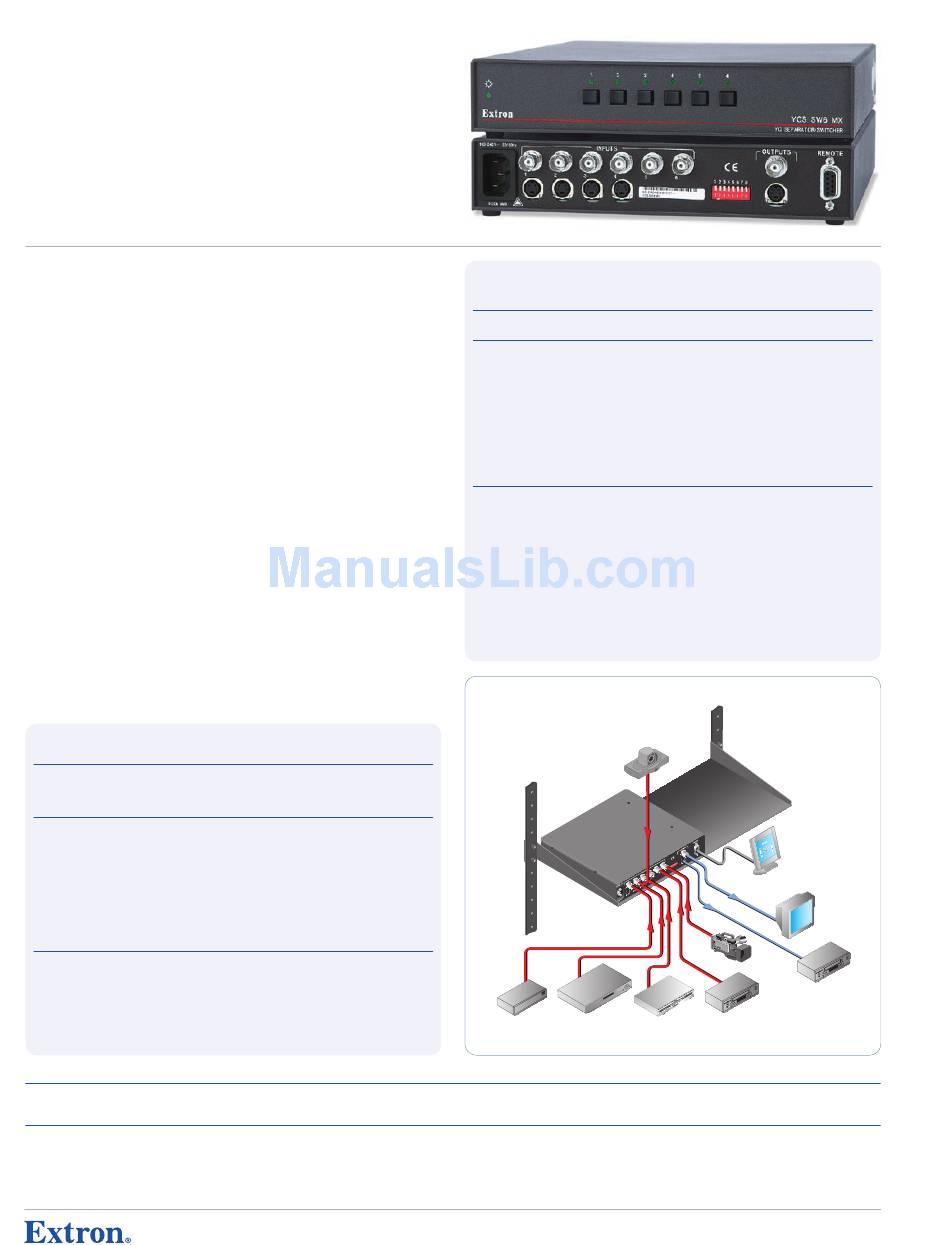

YCS SW 6 MX
Six Input Dual Output, Transcoding Switcher

FeAtureS

Inputs: Six female BNC connectors and four female 4-pin mini DIN connectors
Outputs: Simultaneous buffered outputs on one BNC and one 4-pin mini
DIN connector
Encodes S-video input into composite video
Decodes composite video input into S-video
Three-line NTSC/five-line PAL adaptive comb filter decoder
Six inputs with four available as either composite video or S-video
30 MHz (-3 dB) video bandwidth
RS-232 serial control port
SIS
- Simple Instruction Set
1U, half rack width metal enclosure
Internal international power supply

deScriPtion

The Extron YCS SW6 MX is a six input, two output switcher that encodes S-video luma and
chroma signals into composite video and decodes composite video into S-video. All six inputs
are compatible with composite video, while the first four inputs also accept S-video.
Ideal for video conferencing and video recording applications, the YCS SW6 MX provides
simultaneous output on composite video and S-video outputs from any input. The YCS SW6 MX
uses advanced decoder technology with a three-line adaptive comb filter, which virtually
eliminates chroma noise.

SPeciFicAtionS

Video
Gain.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Unity
Bandwidth.. . . . . . . . . . . . . . . . . . . . . . . . . 30 MHz (-3 dB)
Crosstalk. . . . . . . . . . . . . . . . . . . . . . . . . . . . -60 dB @ 3.58 MHz
Video inPut
Number / Signal type.. . . . . . . . . . . . 6 composite video, 4 of which can be configured as S-video;
NTSC/PAL selectable
Connectors.. . . . . . . . . . . . . . . . . . . . . . . . 6 female BNC female
4 female 4-pin mini-DIN
Nominal level.. . . . . . . . . . . . . . . . . . . . . 1 Vp-p for Y of S-video, and for composite video
0.3 Vp-p for C of S-video
Minimum / Maximum levels. . . . . 0.4 V to 2.0 Vp-p for Y of S-video and for composite video
Impedance. . . . . . . . . . . . . . . . . . . . . . . . . . 75 ohms
Return loss.. . . . . . . . . . . . . . . . . . . . . . . . <-30 dB @ 5 MHz
Input coupling. . . . . . . . . . . . . . . . . . . . . . AC
Video outPut
Number / Signal type.. . . . . . . . . . . . 1 S-video and composite video, NTSC/PAL, follows input
Connectors.. . . . . . . . . . . . . . . . . . . . . . . . 1 BNC female
(1) 4-pin mini-DIN female
Nominal level.. . . . . . . . . . . . . . . . . . . . . 1 Vp-p for Y of S-video, and for composite video
0.3 Vp-p for C of S-video
Minimum / Maximum levels. . . . . Analog: 0.3 V to 1.5 Vp-p
Impedance. . . . . . . . . . . . . . . . . . . . . . . . . . 75 ohms
Return loss.. . . . . . . . . . . . . . . . . . . . . . . . <-30 dB @ 5 MHz
modeL
YCS SW 6 MX

oPtionAL AcceSSorieS

MBU 129
CCR 306
IR 102 Remote Control Kit
RCAF-BNCM/10
240
VerSion deScriPtion
Six Input Transcoding
.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
modeL deScriPtion
1U, 1/2 Rack Width Under-Desk Mount Kit for Four-Piece Enclosure
Six-Button Contact Closure Remote
IR to RS-232 or Contact Closure Conversion Kit
RCA Female to BNC Male Adapter
USA
USA
europe
europe
714.491.1500 / 800.633.9876
714.491.1500 / 800.633.9876
+31.33.453.4040 / +800.3987.6673
+31.33.453.4040 / +800.3987.6673
714.491.1517
714.491.1517
+31.33.453.4050
+31.33.453.4050
FAX
FAX
DC offset.. . . . . . . . . . . . . . . . . . . . . . . . . . . ±5 mV maximum with input at 0 offset
Switching type. . . . . . . . . . . . . . . . . . . . . Vertical interval
Sync
Standards. . . . . . . . . . . . . . . . . . . . . . . . . . . NTSC, PAL
controL / remote — y/c SePArAtor / Switcher
Serial control port.. . . . . . . . . . . . . . . . RS-232, 9-pin D female connector
Baud rate and protocol. . . . . . . . . . . 9600 baud, 8 data bits, 1 stop bit, no parity
Serial control
pin configurations. . . . . . . . . . . . . . . . 2 = TX, 3 = RX, 5 = GND
Contact closure.. . . . . . . . . . . . . . . . . . . 9-pin D female connector, shared with RS-232
Contact closure
pin configurations. . . . . . . . . . . . . . . . 1 = input 1, 4 = input 2, 5 = GND, 6 = input 3, 7 = input 4, 8 = input 5,
IR controller module.. . . . . . . . . . . . . Extron IR 102 kit (optional)
Program control.. . . . . . . . . . . . . . . . . . Extron's control/configuration program for Windows
GenerAL
Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 VAC to 240 VAC, 50/60 Hz, 12 watts, internal, autoswitchable
Temperature / Humidity. . . . . . . . . . Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Rack mount.. . . . . . . . . . . . . . . . . . . . . . . Yes, with optional rack shelf, part #60-190-01
Enclosure type.. . . . . . . . . . . . . . . . . . . . Metal
Enclosure dimensions. . . . . . . . . . . . 1.75" H x 8.7" W x 9.5" D (1U high, half rack wide)
Product / Shipping weight. . . . . . . 2.8 lbs (1.3 kg) / 5 lbs (3 kg)
Vibration.. . . . . . . . . . . . . . . . . . . . . . . . . . . ISTA 1A in carton (International Safe Transit Association)
Listings / Compliances.. . . . . . . . . . UL, CUL / CE, FCC Class A
MTBF.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30,000 hours
Warranty.. . . . . . . . . . . . . . . . . . . . . . . . . . . 3 years parts and labor
NOTE: All nominal levels are at ±10%. Specifications are subject to change without notice.
Extron
YCS SW6 MX
Transcoding
Switcher
Cable Box
DSS Receiver
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Asia
Asia
+65.6383.4400 / +800.7339.8766
+65.6383.4400 / +800.7339.8766
+65.6383.4664
+65.6383.4664
FAX
FAX
FAX
FAX
S w i t c h e r S — A u d i o / V i d e o S w i t c h e r S
9 = input 6
Extron's Simple Instruction Set (SIS
)
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
4.4 cm H x 22.1 cm W x 24.1 cm D
(Depth excludes connectors.)
Codec
7 8
5 6
3 4
1 2
Video
Camera
DVD
VCR
PArt #
60-224-01
PAGe
PArt #
page 757
70-219-01
.. . . . . . . . . . . .
page 281
60-795-02
page 631
70-224-01
page 734
100-229-01
Japan
Japan
www.extron.com
www.extron.com
+81.3.3511.7655
+81.3.3511.7655
© 2006 Extron Electronics. All rights reserved.
© 2006 Extron Electronics. All rights reserved.
Pricing and specifications may change without notice.
Pricing and specifications may change without notice.
+81.3.3511.7656
+81.3.3511.7656
FAX
FAX
®
RS-232 Control
System
Monitor
VCR
mSrP
1,370
$
mSrP
50
$
110
$
500
$
20
$
