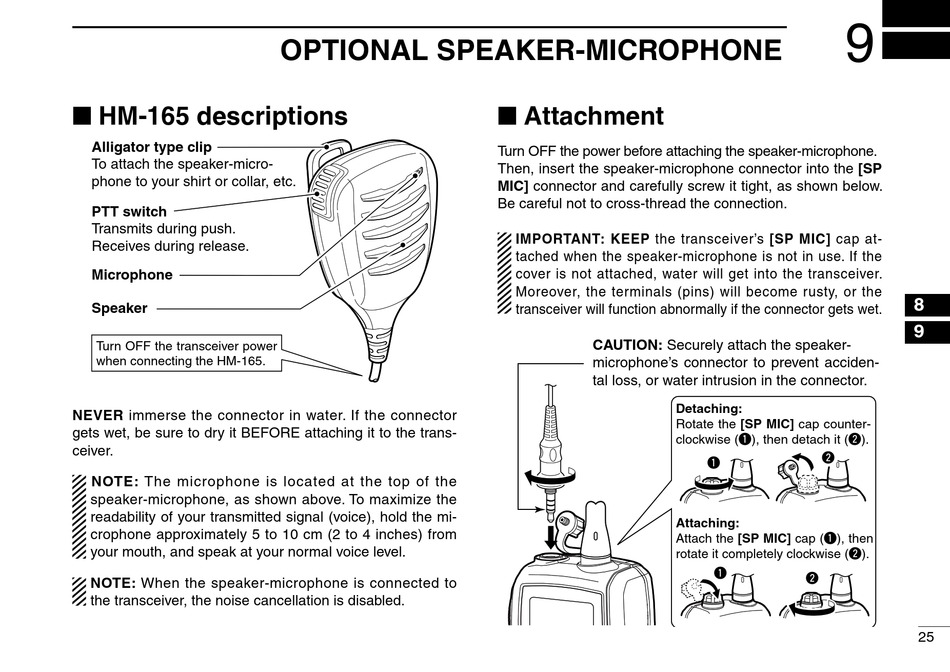

■ HM-165 descriptions

Alligator type clip
To attach the speaker-micro-
phone to your shirt or collar, etc.
PTT switch
Transmits during push.
Receives during release.
Microphone
Speaker
Turn OFF the transceiver power
when connecting the HM-165.
NEVER immerse the connector in water. If the connector
gets wet, be sure to dry it BEFORE attaching it to the trans-
ceiver.
NOTE: The microphone is located at the top of the
speaker-microphone, as shown above. To maximize the
readability of your transmitted signal (voice), hold the mi-
crophone approximately 5 to 10 cm (2 to 4 inches) from
your mouth, and speak at your normal voice level.
NOTE: When the speaker-microphone is connected to
the transceiver, the noise cancellation is disabled.

OPTIONAL SPEAKER-MICROPHONE

■ Attachment

Turn OFF the power before attaching the speaker-microphone.
Then, insert the speaker-microphone connector into the [SP
MIC] connector and carefully screw it tight, as shown below.
Be careful not to cross-thread the connection.
IMPORTANT: KEEP the transceiver's [SP MIC] cap at-
tached when the speaker-microphone is not in use. If the
cover is not attached, water will get into the transceiver.
Moreover, the terminals (pins) will become rusty, or the
transceiver will function abnormally if the connector gets wet.
CAUTION: Securely attach the speaker-
microphone's connector to prevent acciden-
tal loss, or water intrusion in the connector.
Detaching:
Rotate the [SP MIC] cap counter-
clockwise (q), then detach it (w).
Attaching:
Attach the [SP MIC] cap (q), then
rotate it completely clockwise (w).
