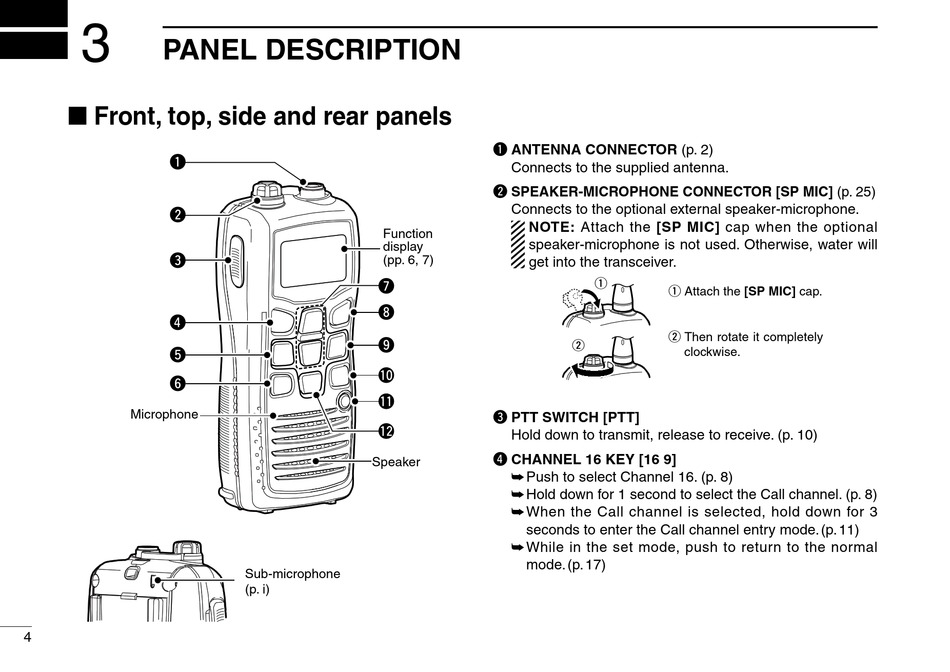

PANEL DESCRIPTION

■ Front, top, side and rear panels

q
w
e
r
t
y
Microphone
4
Function
display
(pp. 6, 7)
u
i
o
!0
!1
!2
Speaker
Sub-microphone
(p. i)
q ANTENNA CONNECTOR (p. 2)
Connects to the supplied antenna.
w SPEAKER-MICROPHONE CONNECTOR [SP MIC] (p. 25)
Connects to the optional external speaker-microphone.
NOTE: Attach the [SP MIC] cap when the optional
speaker-microphone is not used. Otherwise, water will
get into the transceiver.
q
q Attach the [SP MIC] cap.
w Then rotate it completely
w
e PTT SWITCH [PTT]
Hold down to transmit, release to receive. (p. 10)
r CHANNEL 16 KEY [16 9]
➥ Push to select Channel 16. (p. 8)
➥ Hold down for 1 second to select the Call channel. (p. 8)
➥ When the Call channel is selected, hold down for 3
seconds to enter the Call channel entry mode. (p. 11)
➥ While in the set mode, push to return to the normal
mode. (p. 17)
clockwise.
