Before replacing actuator, damper must be inspected and
determined to be fully functional. See damper checklist in NFPA 80 &
Contents

®
UL
............................................................................................................................... 2
Code and Standard Issues ........................................................................................... 2
NFPA 80 (Fire) & NFPA 105 (Smoke) ......................................................................... 3
Local Code Approval .................................................................................................... 4
Cross Reference .......................................................................................................... 5
Typical Multiproducts Replacement Concept ............................................................... 6
Examples of Multiproducts installations ....................................................................... 7
Shaft Springs and Fusible Links ................................................................................... 9
®
Link Bimetal ................................................................................................ 10
Negator Spring Applications - Ruskin and Air Balance ............................................. 11
Completed Installations .............................................................................................. 12
Special Mounting ........................................................................................................ 13
Instructions ................................................................................................................. 13
Wiring ......................................................................................................................... 15
Fire Marshal / Building Official Notification Form ....................................................... 18
Contacts:
East Coast 800 543-9038 x3119
Aaron Nobel 203 749-3119
Mike Knipple 203 749-3170
Installer must be trained and experienced with repair
INSTRUCTION SHEET
WARNING!
NFPA 105 sections.
INSTRUCTION SHEET
Replacement of MultiProducts motors
to Belimo FSxx Series
WARNING!
of fire and smoke dampers and actuators.
Replacement of Multiproducts motors with Belimo FSxx Series
West Coast 800 987-9042 x 2458
Jeremy English 775 355-2458
Larry Felker 775 355-2461
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FS Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Belimo FS Series

  • Page 1: Table Of Contents

    Aaron Nobel 203 749-3119 Jeremy English 775 355-2458 Mike Knipple 203 749-3170 Larry Felker 775 355-2461 WARNING! Installer must be trained and experienced with repair of fire and smoke dampers and actuators. INSTRUCTION SHEET Replacement of Multiproducts motors with Belimo FSxx Series...
  • Page 2: Code And Standard Issues

    Fire Fighters Control System. A permit and inspection may be required since connections to an alarm system have been touched. INSTRUCTION SHEET Replacement of Multiproducts motors with Belimo FSxx Series...
  • Page 3: Nfpa 80 (Fire) & Nfpa 105 (Smoke)

    Test voltage input to actuators and repair as necessary if voltage is not correct. Old breakers often deliver below 115V and failed actuators may be due to power supply problems. A record of all repairs must be kept and made available to AHJ. INSTRUCTION SHEET Replacement of Multiproducts motors with Belimo FSxx Series...
  • Page 4: Local Code Approval

    Local Code Approval While it is not detailed in codes, the following rules should be followed for selecting Belimo actuators for replacement: Check the technical specifications to ensure an “equal or better” actuator is used.  Temperature – the replacement actuator shall have been UL555S tested at the same or better temperature as the original actuator.
  • Page 5: Cross Reference

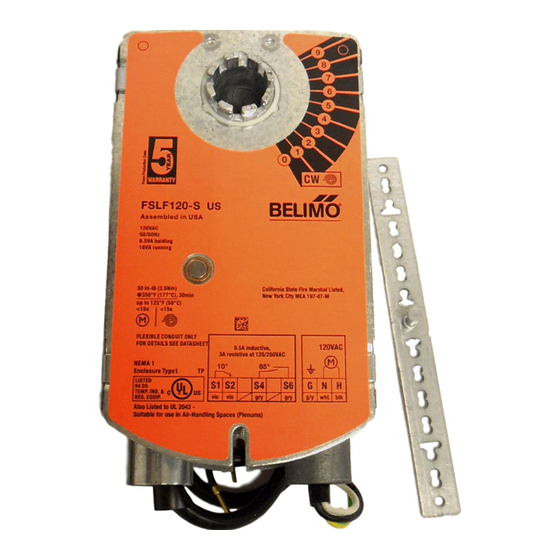

    A general rule of thumb is that the FSLF replaces motors on dampers 3 sq.ft. and smaller and the FSNF replaces motors on dampers greater than 3 sq.ft. The Belimo FSLF has passed UL555S testing at larger sizes; however, with age and corrosion, it is best to be conservative.
  • Page 6: Typical Multiproducts Replacement Concept

    Belimo anti- rotation strap. The Belimo is mounted on the shaft with no linkages or external spring. Test by cycling and tripping thermal sensor. Reset and completed. INSTRUCTION SHEET Replacement of Multiproducts motors with Belimo FSxx Series...
  • Page 7: Examples Of Multiproducts Installations

    amples o f Multipro oducts in nstallation Blac ck arrow po oints to the e spring. W White arrow w points to o the damp per shaft. INSTRUCT TION SHEET Replacem ment of Multip products moto ors with Belim mo FSxx Serie...
  • Page 8 The spring is missing on the left application. As with the other examples above, remove the old motor, linkage and spring. Mount the Belimo over the shaft. Other examples are shown above. The arrow points at the spring in the right photograph.
  • Page 9: Shaft Springs And Fusible Links

    In above examples, the extraneous parts are removed and the Belimo dropped onto the damper shaft. Shaft Springs and Fusible Links In the examples below there is a spring wrapped around the damper shaft with a fusible link holding it (arrows). The link prevents the spring from slamming the damper blades closed.
  • Page 10: Mccabe Link Bimetal

    McCabe link dampers can be found at www.belimo.us/firesmoke Spring Bottom. As with most of this type of application, remove the motor, spring, cable, and linkage. Mount Belimo and wire per drawings found below. INSTRUCTION SHEET Replacement of Multiproducts motors with Belimo FSxx Series...
  • Page 11: Negator Spring Applications - Ruskin And Air Balance

    If they are intact then a kit is available from Ruskin. See below. If the springs are not intact, then the rod can be replaced with ones made by a machine shop. A Belimo BAE 165 US sensor can be installed. This upgrades the damper to modern standards. Call for information.
  • Page 12: Completed Installations

    Completed Installations FSLF (left) or FSNF (right) mounted on the damper shaft. Two sheet metal screws hold the anti- rotation strap. Two nuts secure cold-weld clamp onto shaft. INSTRUCTION SHEET Replacement of Multiproducts motors with Belimo FSxx Series...
  • Page 13: Special Mounting

    Clean, lubricate (food grade silicone spray or equal – NOT WD40). 5. The Belimo is slightly wider than the old MultiProducts. If the Belimo does not fit in the space available, then any thermal sensor sheet metal enclosure can be removed and a 4”...
  • Page 14 Belimo for analysis. NOTE: If the damper shaft bearing does not hold the shaft firmly, then a Belimo FSNF should be used with a leg kit, ZG-AF. The actuator then serves to hold the jackshaft steady. On small dampers, it may be necessary to extend a flat plate out in the air in order to mount leg kit.
  • Page 15: Wiring

    Use it as a basis for any of the other wiring schematics. Note that the alarm connections are not touched when replacing an actuator. This is a major concern for Fire Marshals. INSTRUCTION SHEET Replacement of Multiproducts motors with Belimo FSxx Series...
  • Page 16 120 or 24 VAC BELIMO FSxx ACTUATOR To alarm system If more wiring space is required, a j-box can be attached to the actuator with a chase nipple and locknut. INSTRUCTION SHEET Replacement of Multiproducts motors with Belimo FSxx Series...
  • Page 17 In rare cases the motor was installed as a retrofit on dampers with fusible links. There is no electric sensor in the damper in that case as there is typically a shaft spring performing the fire function. Wiring is shown to right. Notes: INSTRUCTION SHEET Replacement of Multiproducts motors with Belimo FSxx Series...
  • Page 18: Fire Marshal / Building Official Notification Form

    Auto. Damper is normally Open; check sequence of operation. Damper Numbers or Location Identifying Numbers..……………………………………………………… Date……-…………-..…… Contractor………………………………………………………………………………………………………. Service Technician (Print)……………..……………………………………………………………………… Service Technician (Signed)……………..…………………………………………………………………… Phone Number (……)……………………………………………… Notes…….……………………………………………………………………………………………………… ……………..……………………………………………………………………………………………………. ……………...…………………………………………………………………………………………………… INSTRUCTION SHEET Replacement of Multiproducts motors with Belimo FSxx Series...
