Macurco™ CD-6H / CD-6MC
Carbon Dioxide Detector, Controller and Transducer
User Instructions
IMPORTANT: Keep these User Instructions for reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CD-6MC and is the answer not in the manual?

Questions and answers

Related Manuals for Macurco CD-6MC

Summary of Contents for Macurco CD-6MC

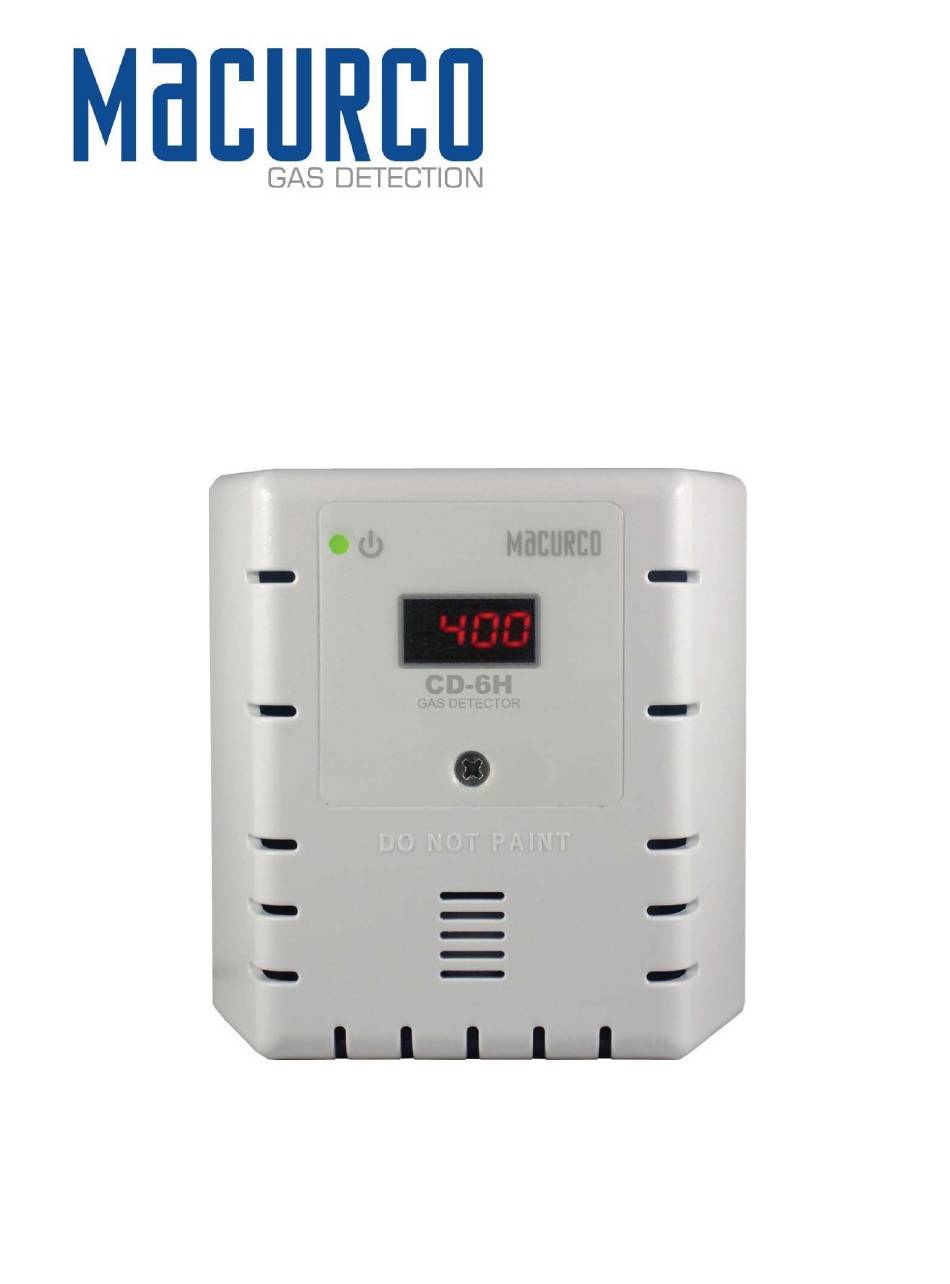

  • Page 1 Macurco™ CD-6H / CD-6MC Carbon Dioxide Detector, Controller and Transducer User Instructions IMPORTANT: Keep these User Instructions for reference.

  • Page 3: Table Of Contents

    4.3.6 FCK Information ............................18 4.3.7 Gas Testing ............................... 18 4.3.11 Manual Calibration – CD-6MC ONLY ....................... 20 Appendix A – Menu Structure ..............................22 Main Menu ..................................22 Auto Test Menu “bUZ” ................................ 23 Configuration Menu “CON” ..............................24 Select Test Menu “tst”...

  • Page 5: General Safety Information

    The CD-6H uses an automated background calibration program to set the clean air level on a regular basis. The CD-6MC has the same setting and features of the CD-6H with the addition of being able to perform a manual calibration. The CD- 6MC requires a manual calibration process at a minimum of once per year using the Macurco CD6-FCK calibration kit.

  • Page 6: User Instructions And Limitations

    “clean air reference value” (this reference value is the lowest concentration to which the sensor is exposed) at least once per week. The CD-6MC does not perform automated background calibrations and it is suggested to perform a Manual Calibration on the unit no less than once per year using the Macurco CD6-FCK calibration kit.

  • Page 7: Features

    The CD-6H uses an automated background calibration program to set the clean air level on a regular basis *  The CD-6MC uses a manual Calibration to set clean and polluted air levels using a Calibration Kit **  Selectable fan and alarm relay activation ...

  • Page 8: Installation And Operating Instructions

    3 INSTALLATION AND OPERATING INSTRUCTIONS The following instructions are intended to serve as a general guideline for the use of the Macurco CD-6H / CD-6MC Carbon Dioxide Detector. It is not to be considered all-inclusive, nor is it intended to replace the policy and procedures for each facility. If you have any doubts about the applicability of the equipment to your situation, consult an industrial hygienist or call Technical Support at 844-325- 3050.
  • Page 9  Carbon Dioxide concentration has dropped below fan setting  Fan Relay Run time has been exceeded Note that the “disable” fan setting will cause the fan relay to not engage. The fan relay will engage in trouble fault condition (if the Trouble Fan Setting Option is set to “ON”) and will disengage once trouble fault condition is cleared.
  • Page 10 3.2.3 Typical Installation in a room 3.2.4 Use with Alarm Panel...
  • Page 11 3.2.5 Multiple CD-6 Installation 3.2.6 DVP-120 Control Panel Connection...

  • Page 12: Power Up

    3.2.7 Alternate connection to alarm panel In this application (3.2.7 Alternate connection to alarm panel) the Fan or primary relay is used as a low-level alarm relay. The Alarm or secondary relay is used as a supervisory relay when utilized in the normally closed configuration. The CD-6”x” monitors all critical functions of the unit through software diagnostics that continually test and verify its operations.

  • Page 13: Default Configuration - Factory Settings

    3.5 Default Configuration – Factory Settings Setting: Default: Power Up Test Display Buzzer Alarm Relay Setting 4000 ppm Alarm Relay Configuration Normally Open (NO) Fan Relay Setting 2000 ppm Fan Relay Delay 3 minutes Fan Relay Minimum Runtime 0 minutes Fan Relay Latching Trouble Fan Setting 4-20mA...

  • Page 14: Selecting Power Up Test Option - "Put

    3.5.2 Selecting Power Up Test Option – “PUt” To select the Power Up Test Configuration, in normal mode, push the Next button to get to “Con” or the Configuration menu. Then push the Enter button to enter the Con menu. Then push the Next button to get to the second selection “PUt” or Power Up Test setting.

  • Page 15: Selecting Fan Relay Latching Option - "Frl

    If the error mode repeats frequently, check for continuous power and proper voltage. If power is not the problem and a unit has repeating error conditions, it may need to be returned to Macurco for service, per these User Instructions.

  • Page 16: Maintenance

    "ENTER/TEST" button or by temporarily dropping power to the unit. The end-of-life signal provides the user an opportunity to test and/or calibrate the sensor (CD-6MC only) assuring that it is still performing within acceptable parameters though the sensor is nearing the end of its expected life.

  • Page 17: Operation Test

    Check that the green CD-6”x” status indicator LED light is illuminated continuously. If not, do not proceed with the tests. If the unit is in error mode, contact your local representative or Macurco technical support representative for information on resolving the problem.

  • Page 18: Field Calibration Kit - Cd6-Fck

     If the instrument cannot be calibrated, do not use until the reason can be determined and corrected.  Do not cover or obstruct display or visual alarm cover.  Ensure sensor inlets are unobstructed and is free of debris. 4.3.5 Field Calibration Kit –...
  • Page 19 Gas cylinder has reached its expiration date. Replace the gas cylinder. c. Unit needs to be re-calibrated (automated background calibration for CD-6H, Manual Calibration for CD-6MC) then re-test. Detector is in need of servicing (contact Technical Support for at 844-325-3050 servicing options).

  • Page 20: Manual Calibration - Cd-6Mc Only

    Note: For optimum calibration results the unit should be in clean air and be in a low ambient air flow. 1. Remove the Philips screw on the front of the CD-6MC. Remove the front cover. 2. Open the FCK. Connect the 400-ppm gas cylinder to the regulator.
  • Page 21 11. Once the calibration has passed, remove gas and disassemble the cylinder and regulator. 12. Re-assemble the CD-6MC (make sure the LED is aligned with the front case hole). 13. See Calibration Flowchart on the inside of the housing, or section 5.5 CAL...

  • Page 22: Appendix A - Menu Structure

    5 Appendix A – Menu Structure 5.1 Main Menu Normal Normal Mode “Con” Config 1 Wait Configuration Mode “tst” Wait Test Mode “CAL” Calibration Wait (CD6MC only)

  • Page 23: Auto Test Menu "Buz

    5.2 Auto Test Menu “bUZ” “bUZ” Buzzer test Wait “Art” Alarm relay test Wait “Frt” Fan relay test Wait “420” Current loop test Wait Normal...

  • Page 24: Configuration Menu "Con

    5.3 Configuration Menu “CON” Config 1 “dEF” Default Deafult values? “ /YES” “YES” Wait “YES” Wait Wait Wait “_nO” “ /_nO” “_no” Wait Wait Wait Wait “Put” Go to current setting – ON in “_On” Power up test this example Wait Wait “oFF”...
  • Page 25 Config 2 Wait Go to current setting – 4000 Alarm Relay “4000” in this example Setting Wait Wait “4100” “ /4100” Wait 8 more options: 4200, 4300, …..4900 Wait “5000” “ /5000” Wait Wait “diS” “ /_diS” Wait Wait “_900” “...
  • Page 26 Config 3 Wait “Arc” Go to current setting – nO in Alarm relay “_nO” this example configuration Wait Wait “_nC” “ /_nC” Wait Wait “_nO” “ /_nO” Wait Go to current setting – 2000 “FrS” in this example Fan Relay “2000”...
  • Page 27 Config 4 Wait “Frd” Go to current setting – 3 in “__3” Fan relay delay this example Wait Wait “__5” “ /_5” Wait Wait “__10” “ /_10” Wait Wait “__0” “ /_0” Wait Wait Normal “__1” “ /_1” Wait Wait “__3”...
  • Page 28 Config 5 Wait “Frr” Fan relay Go to current setting – 0 in “__0” runtime this example Wait Wait “__3” “ /_3” Wait Wait “__5” “ /_5” Wait Wait “_10” “ /_10” Wait Wait “_15” “ /_15” Wait Wait “__0” “...
  • Page 29 Config 6 Wait “420” Go to current setting – On in “_On” Current loop this example Wait Wait “_OFF” “ /OFF” Wait Wait “_On” “ /_On” “End” Wait Normal Config 1...

  • Page 30: Select Test Menu "Tst

    5.4 Select Test Menu “tst” “bUZ” “___/bUZ” Wait Buzzer test Buzzer test “Art” “___/Art” Wait Alarm relay test Alarm relay test “Frt” “___/Frt” Wait Fan relay test Fan relay test “420” “___/420” Wait Current loop test Current loop test “gSt” “___/gSt”...

  • Page 31: Cal Menu * Cd-6Mc Only

    5.5 CAL Menu * CD-6MC Only “400” “400/___” Cal mode Waiting for gas (CD6MC only) “GR/CAL" Gas OK within Gas reading 90 secs? alternates with CAL until stable (165 s) “GR/FAil” alternate “GR/PAS” gas gas reading with Cal OK? reading alternating...

  • Page 32: Macurco Products Limited Warranty

    6 MACURCO PRODUCTS LIMITED WARRANTY Macurco warrants the CD-6H / CD-6MC gas detector will be free from defective materials and workmanship for a period of two (2) years from date of manufacture (indicated on the inside cover of the CD-6H / CD-6MC), provided it is maintained and used in accordance with Macurco instructions and/or recommendations.
