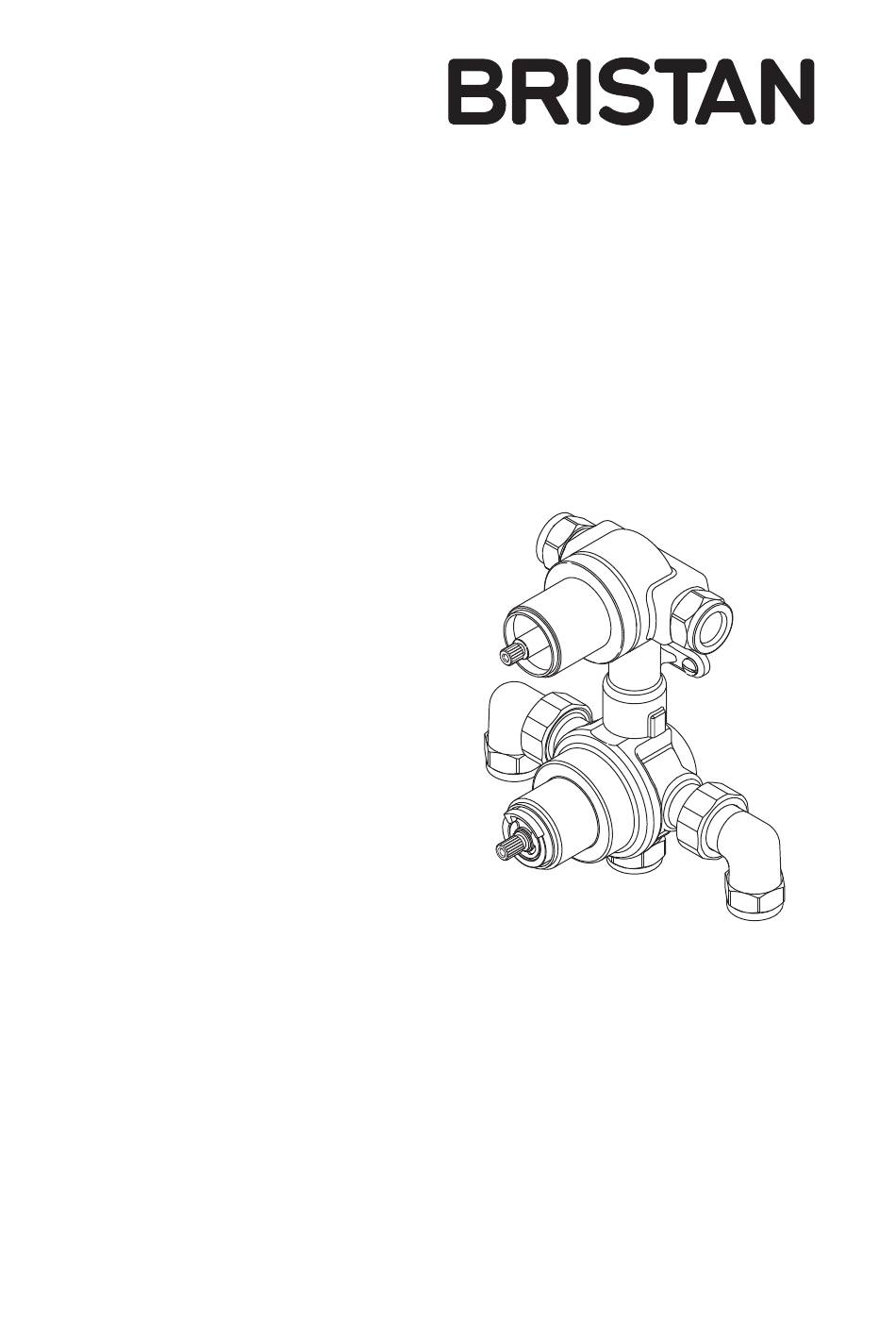

Installation Instructions
and User Guide

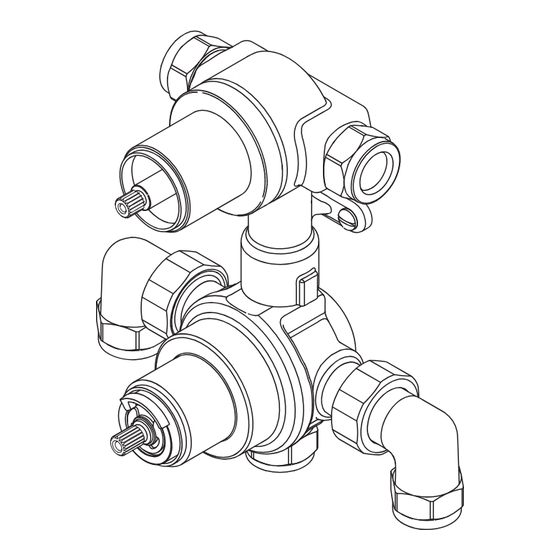

Thermostatic Recessed
Dual Control Shower
Valve with Integral
Diverter
Models covered: N2 SHCDIV C,
N2 SHCDIV G, AR3 SHCDIV C,
PM2 SHCDIV C & RS SHCDIV C
Please keep this booklet for future
reference.
Installer, when you have read these
instructions please ensure you leave
them with the user.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bristan N2 SHCDIV G
Summary of Contents for Bristan N2 SHCDIV G
- Page 1 Thermostatic Recessed Dual Control Shower Valve with Integral Diverter Models covered: N2 SHCDIV C, N2 SHCDIV G, AR3 SHCDIV C, PM2 SHCDIV C & RS SHCDIV C Please keep this booklet for future reference. Installer, when you have read these instructions please ensure you leave them with the user.
-
Page 2: Table Of Contents
Contents Thank you for choosing Bristan, the UK’s leading showers and taps expert. We have designed this product with your enjoyment in mind. To ensure that it works to its full potential, it needs to be fi tted correctly. These fi tting instructions have been created to give you all of the information you need and, if you need any further help, please do not hesitate to give us a call on 0844 701 6273. -
Page 3: Important Safety Information
Important Safety Information • Please read these instructions thoroughly and retain for future use. • All products manufactured and supplied by Bristan are safe provided they are installed, used correctly and receive regular maintenance in accordance with these instructions. • If you are in any doubt about your ability to install this product safely you must employ the services of an experienced qualifi... -
Page 4: General Information
General Information This product has been tested to the Water Regulations Advisory Scheme (WRAS) and satisfi es the requirements of the Water Supply (Water Fittings) Regulations 1999 and current bylaws. For full Installation Requirements & Notes (IRN) please visit www.wras.co.uk/directory. BS7600 recommends the temperature of stored water should never exceed 65ºC. -
Page 5: Product Features
Product Features 1. Two outlet diverter This outlet allows the user to divert the fl ow of water from one water outlet to another. E.g. Fixed rigid riser or an adjustable riser. 2. Temperature control Adjustable temperature control. Turn the handle clockwise for a cooler temperature. -
Page 6: Specifi Cations
Note: When using a pumped system we recommend that an essex flange is used. Important: Minimum wall cavity depth: 35mm Min - Max Concealing plate thickness: 45-75mm For full dimensional drawings please visit www.bristan.com. Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers. -
Page 7: Pack Contents
Pack Contents - N2 SHCDIV C/G 1. Concealing plate x1 2. Valve body x1 3. Handles x2 4. Shrouds x2 5. Shroud extention screws x1 6. Valve body fi xings x2/2 7. Inserts x2 8. Flow regulators x2 9. Filter washers x2 10. - Page 8 Pack Contents - AR3 SHCDIV C 1. Concealing plate x1 2. Valve body x1 3. Handles x2 4. Valve body fi xings x2/2 5. Inserts x2 6. Flow regulators x2 7. Filter washers x2 8. Wall outlet x1 Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.
- Page 9 Pack Contents - PM2 SHCDIV C 1. Concealing plate x2 2. Valve body x1 3. Handles x2 4. Spline adaptors x2 5. Valve body fi xings x2/2 6. Inserts x2 7. Flow regulators x2 8. Filter washers x2 9. Wall outlet x1 Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.
-
Page 10: Pack Contents
Pack Contents -RS SHCDIV C 1. Concealing plate x1 2. Valve body x1 3. Handle x1 4. Lever x1 5. Shrouds x2 6. Shroud extention screws x2 7. Valve body fi xings x2/2 8. Inserts x2 9. Flow regulators x2 10. -
Page 11: Prior To Installation
Prior to Installation Flow Regulators This shower valve is supplied with a 5 and 7 litre per minute fl ow regulator loose in the box which must be fi tted if the shower Filter valve is installed in conjunction with an Washer instantaneous water heater / combination boiler. -
Page 12: Installation
Installation - Shower Valve This shower valve is designed for installations where a recessed valve is already installed in the wall cavity and is to be replaced or for new installations. Wall plugs Before Installation Flush through the pipework to ensure removal of any debris. - Page 13 Installation - Shower Valve 4. Fit concealing plate Note: The concealing plate can be used as a template by drawing around the plate and measuring in by 10mm to give suffi cient clearance. See page 18 for concealing plate adjustment. Run a bead of waterproof silicon sealant around the inner edge of the concealing plate.
-
Page 14: Wall Outlet
Installation - Wall Outlet Fitting the Wall Outlet There are two methods of fi xing the wall Backnut outlet depending on the type of wall: a: With rear access once wall fi nished Fit the rubber washer to the back of the Rubber wall outlet, place the assembly through a seal... -
Page 15: Operating The Shower
Operating the Shower 1. Two outlet diverter This outlet allows the user to divert the flow of water from one product to another. Turn the handle one way or the other to turn the flow of water on to your chosen product. -
Page 16: Maintenance
• Turning off the isolation valves to the shower valve. 4. Grease the seals with a silicon grease 1. Remove the temperature handle and supplied by Bristan (part number: SP-495- plastic stop. 0002) and carefully refit. Important: Take note of the position 5. -
Page 17: Adjusting The Temperature
Adjusting the Temperature Adjusting the Temperature temperature of the water with a The shower valve has been factory set to thermometer. If the temperature is not 42ºC with equal (balanced) hot and cold correct, re-calibrate the shower valve: water supply pressures, with the hot water 1. -
Page 18: Troubleshooting
Troubleshooting Symptom Cause Remedy No fl ow or low Check showerhead, hose and Clean as necessary, refer to fl ow rate and fi lters for any blockage. Maintenance section (page 16). / or varying Partially closed stop or service Open stop or service valve. temperatures. - Page 19 Troubleshooting Symptom Cause Remedy Maximum water Maximum water temperature Reset maximum water temperature too set incorrectly. temperature. Refer to ‘Maximum hot or cold. Temperature setting’ in Maintenance section (page 16) and ‘Adjusting the Temperature’ (page 17) Outlet water Inlet fi lter is partially blocked. Check inlet fi...
-
Page 20: Notes
Notes please use this space to add any notes you or your installer may have regarding the plumbing system / installation of this product. Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers. -
Page 21: Notes
Notes please use this space to add any notes you or your installer may have regarding the plumbing system / installation of this product. Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers. -
Page 22: Guarantee
Guarantee At Bristan, we want to make things as • Repair under this guarantee does not easy as possible for our customers. That’s extend the original expiry date. The why we design products that are easy to guarantee on any replacement parts or fit and use, and that are quality tested to product ends at the original expiry date. - Page 23 ‘phone or with a spare part, then we’ll guarantee period, contact Bristan Care send out one of our Bristan Care Customer Service on 0844 701 6273 with engineers to take a look. Bristan Care...
- Page 24 Part Number: FI: SHCDIV FA Issue: D3 Useful contact details: Customer Service: 0844 7016273 Bristan Group Ltd, Customer Service Email: Birch Coppice Business Park Customercare@bristan.com Dordon Tamworth Customer Service Fax: Staffordshire 0844 7016275 B78 1SG Reception: Web: www.bristan.com 0844 7016274 Email: enquire@bristan.com...
