Summary of Contents for Bristan TS4753ECP

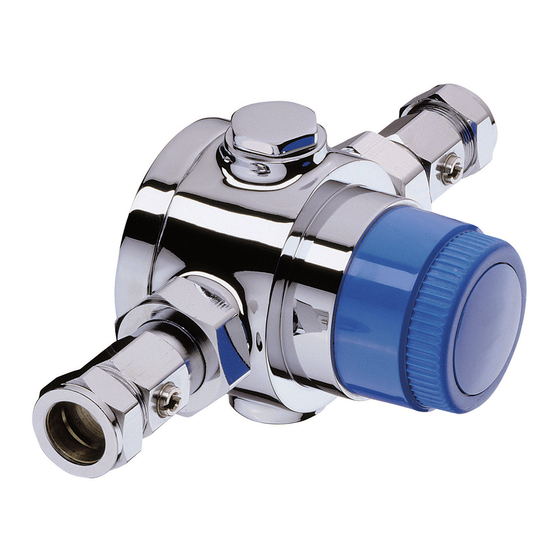

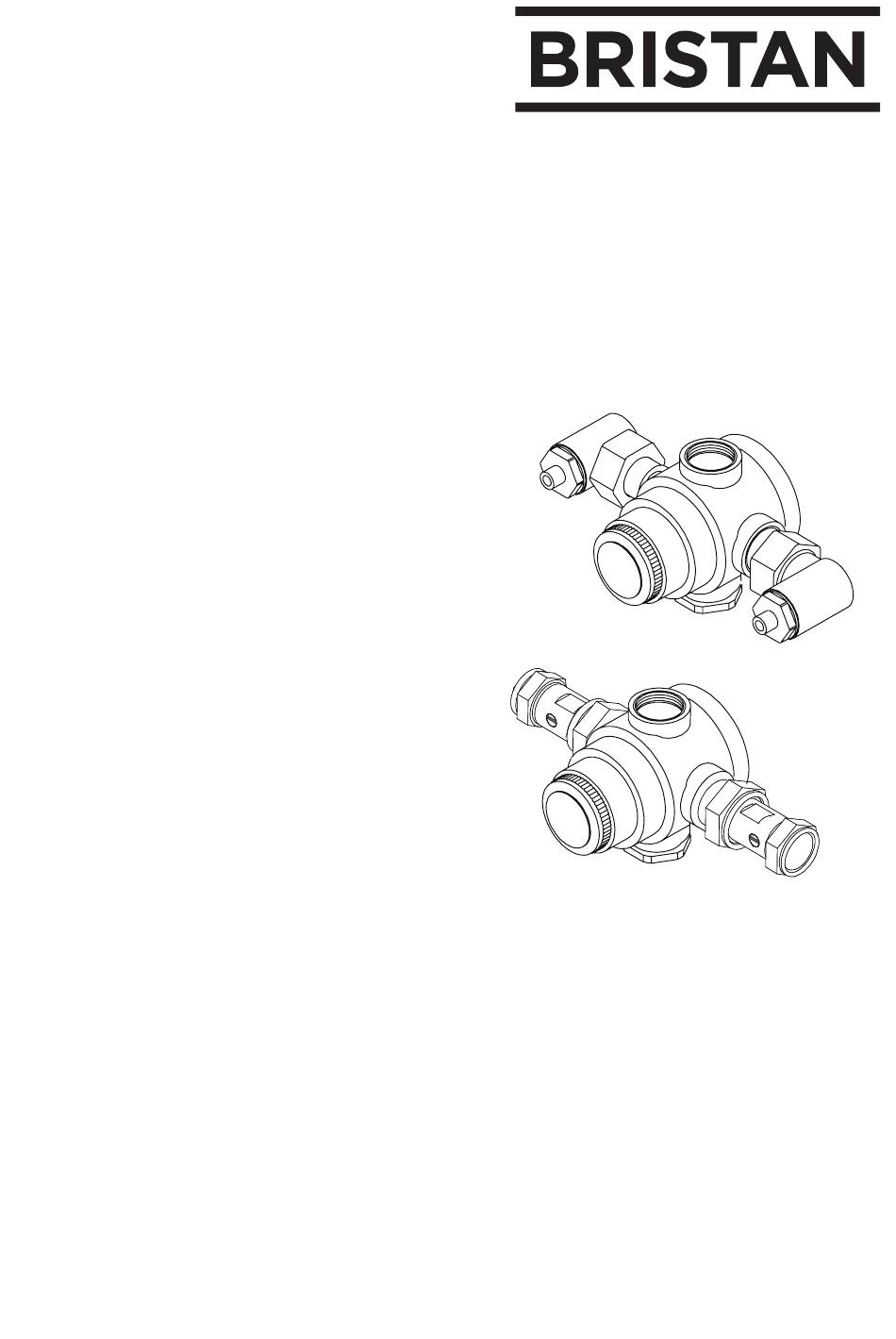

- Page 1 Installation Instructions and User Guide Thermostatic Mixing Valve Models Covered: TS4753ECP Please keep this booklet for future reference. Installer, when you have read these instructions please ensure you leave them with the user.
-
Page 2: Table Of Contents
Contents Welcome to your new Bristan Shower. All products manufactured and supplied by Bristan are safe provided they are installed, used correctly and receive regular maintenance in accordance with these instructions Isolation valves must be fitted to the inlet water supplies to ensure ease of future maintenance. -
Page 3: Specifications
Specifications Specifications Inlet Water Temperature Inlet & Outlet Connection Cold Water Supply Hot Water Supply Working Pressures 22mm Min: 0.01 MPa Max: 0.5 MPa (0.1 bar) (5.0 bar) 80°C TMV Designation 65°C 20°C 5°C HP-T44 & LP-T44 Min: 5°C Max: 20°C 65°C Recommended Pressure Pressure... - Page 4 Installation Component List: Item Description Washer Piston Thermostat Housing Wire Ring Spring Ring Large Spring Return Spring O-Ring O-Ring O-Ring O-Ring O-Ring O-Ring O-Ring O-Ring Grub Screw Bottom Cap Adjusting Screw Screw Head Spindle Nut Adjustment Housing Retaining Screw Thermostat Element Filter Washer Filter Washer Hexagon Insert...
-
Page 5: General Cleaning
‘Low’ on the sticker on the bottom of the valve body. General Cleaning Bristan products are made from premium materials, with hand polishing and electroplated finishes. Your shower kit should be regularly cleaned with warm water, a mild pH-neutral liquid soap, and polished with a soft cloth. -
Page 6: Maintenance
Maintenance Temperature Adjustment This valve is pre-set to a maximum outlet temperature of 43°C. It can be adjusted to have a maximum temperature between 30°C - 55°C IMPORTANT: To comply with the TMV scheme, this valve cannot have a maximum outlet temperature of 44°C. If set higher, it will no longer comply with the TMV scheme. - Page 7 Maintenance Servicing the Valve This valve should at least be serviced with a frequency as set out in the TMV manual guidelines to comply with the scheme. It may need more frequent servicing if sited in a hard water area to ensure optimum performance.
- Page 8 Email: enquire@bristan.com A Masco Company At Bristan, we want to make things as easy as possible for our customers. That’s why we offer solid guarantees on all our products, effective from the date of purchase, to give you peace of mind.
