f Immediately remove spillages of grease, oil and other
liquids.
f Avoid dirt on the display field of the ATS3080.

2 .5 .3 Spare parts and accessories

• Use only original replacement parts.
• After parts have been replaced, always make sure that
everything is in full working order.
• Use only accessories approved by HellermannTyton.
Accessories can affect the way in which the ATS3080 or
Bench mount kit horizontal 3080 works.

3 Functional description

ATS3080 and Power pack 3080 are not included in the scope
of supply. For a description of the ATS3080 and the Power
pack 3080, see the Operating Instructions for the ATS3080.

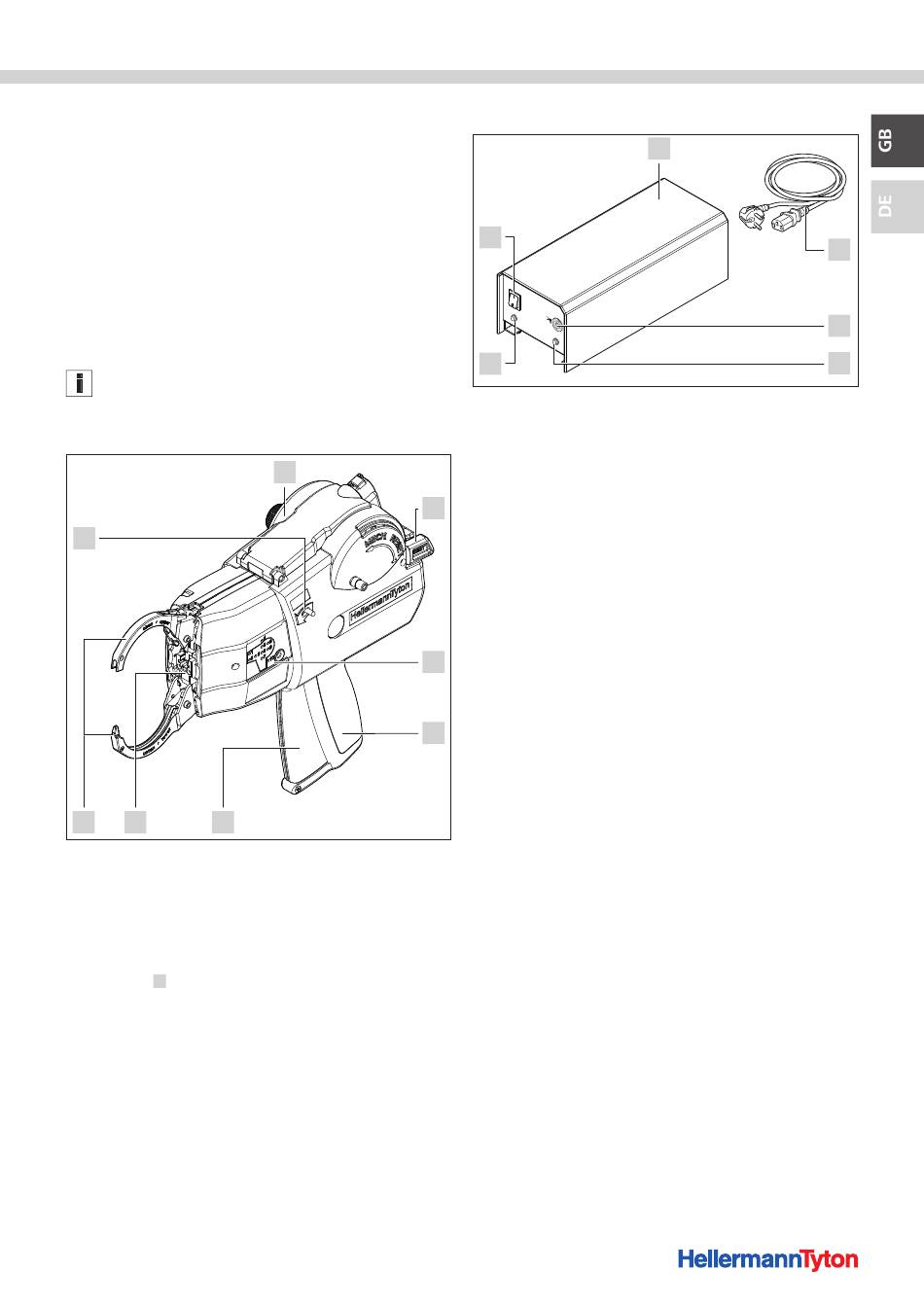

3 .1 ATS3080

8
7 6 5
1 ATS3080
2 Reset lever
3 Display
4 Grip
5 Triggering lever
6 Front cap with sensor
7 Upper and lower jaws
8 Jaw-opening lever
The ATS3080 loops the inserted strap round the
1
bundle, tensions and then cuts off the strap. Binding is a
zero-waste operation.
Assembly instructions Bench mount kit, horizontal, 3080 • 03-2017 • v02 • 102-01011
1
2
3
4

3 .2 Power pack 3080

6
P ow
er
S ig
na
l
5
1 Housing
2 Power cable (socket and fuse on the rear of the housing)
3 Socket for connection to ATS3080
4 LED indicator, operating voltage
5 LED indicator on Power pack 3080 switched on
6 Main switch
The Power pack 3080 supplies electricity to the
ATS3080.
To the interfaces on both sides of the housing,
à "Interface overview, Power pack 3080" on
page 15.
Functional description
1
2
3
4
6
