OPERATION MANUAL

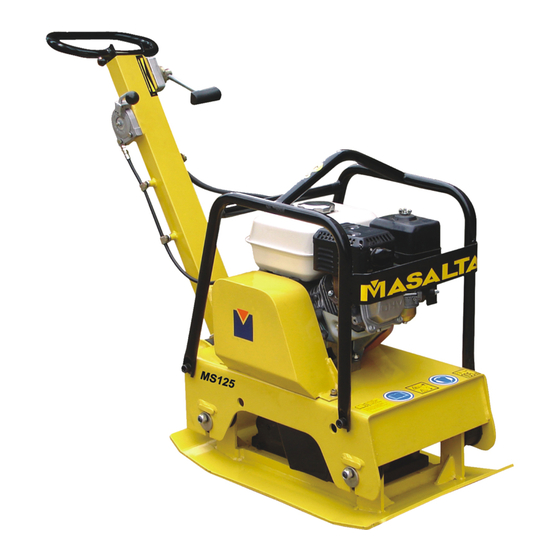

REVERSIBLE PLATE COMPACTOR
MS125 / MSH160 / MSH160E / MS250/MS330
To reduce the risk of injury, all operators and maintenance personnel must read and understand these
instructions before operating, changing accessories, or performing maintenance on Masalta power
equipment. All possible situations cannot be covered in these instructions. Care must be exercised
by everyone using, Maintaining or working near this equipment.
!
WARNING
R
Advertisement
Table of Contents
Related Manuals for Masalta MS125-1
Summary of Contents for Masalta MS125-1
- Page 1 To reduce the risk of injury, all operators and maintenance personnel must read and understand these instructions before operating, changing accessories, or performing maintenance on Masalta power equipment. All possible situations cannot be covered in these instructions. Care must be exercised...
-
Page 2: Table Of Contents
CONTENTS APPLICATIONS Introduction ……………………………………………….…1 Applications ……………………………..……….………….1 Trench compaction Earthworks Functions and controls……………………..………………1 Road maintenance Landscaping Accessories………………………………………………….1 Brick paving Driveway topping Hazards and risks………………………………………...1-3 Operation ………………………………………………..4-5 FUNCTIONS AND CONTROLS Care and preventive maintenance…………………….. 6-7 Specification ……………………………………….…..…8-9 The motor is controlled by an ON/OFF switch or Transportation…………………………………………….…9 push button is mounted on the motor below the Trouble shooting………………………….…………..…….10... -
Page 3: Hazards And Risks
HAZARDS AND RISKS NEVER allow any person to operate the machine without adequate instruction. ENSURE all operators read, understand and follow the operating instructions. SERIOUS INJURY could result from improper or careless use of this machine. Plate compactors are heavy units and should be positioned by two people of appropriate strength. Using the lifting handles provided on the machine, along with correct lifting techniques. - Page 4 HAZARDS AND RISKS DO NOT over fill the fuel tank and avoid spilling petrol when refueling. Spilled petrol or petrol vapour may ignite. If spillage occurs, ensure that the area is dry before starting the motor. ENSURE that the fuel tank cap is securely fitted after refueling. ! CHEMICAL HAZARDS DO NOT operate or refuel a petrol or diesel motor in a confined area without adequate ventilation.
-
Page 5: Operation
OPERATION Pre-start-up inspection The following Pre-start-up inspection must be performed before the start of each work session or after every four hours of use, whichever is first.. If any fault is discovered, the compactor must not be used until the fault is rectified. Thoroughly inspect the compactor for signs of damage. -
Page 6: Operation
OPERATION Taking care not to pull the starter’s cope fully out, pull the starter handle briskly. Repeat until the engine fires. Once the engine fires gradually, set the choke lever to the OFF position by moving it to the right. If the engine fails to fire after several attempts, follow the trouble-shooting guide on page 9. -
Page 7: Care And Preventive Maintenance
CARE AND PREVENTIVE MAINTENANCE Check the oil level in the motor crankcase daily. Inspect the rubber anti vibration mounts for wear or deterioration. If the optional water tank is fitted inspect the water hose and its connections to ensure that they do not leak. Clean the underside of the plate regularly to prevent a build up of material. -
Page 8: Care And Preventive Maintenance
CARE AND PREVENTIVE MAINTENANCE Changing Vibrator Oil When changing the vibrator oil, remove the drain plug located at the bottom-right of the vibrator, and simply tip the compactor to drain the oil. Note that the oil will drain more easily while it is hot. For MS125 series, MSH160(E) series, replace the oil with 500ML of 10W-30 motor oil;... -
Page 9: Specification
SPECIFICATIONS Motor Model Engine Type Max. Output MS125-1 Diesel, Kipor 170 3.1 kW (4.2hp) MS125-2 Chinese Petrol Engine 4.8 kW (6.5hp) MS125 MS125-3 Petrol, Robin EX17 4.2 kW (5.7hp) MS125-4 Petrol, Honda GX160 4.1 kW (5.5hp) MSH160(E)-1 Diesel, Kipor 178 4.4 kW (6.0hp) -
Page 10: Transportation
Serial No.: Serial No.: Manuf. Yr.: Manuf. Yr.: Guaranteed sound 108dB 105.2dB Masalta Engineering Co., Limited Masalta Engineering Co., Limited power level Rm 501, Fortune Plaza, No.278 of Suixi Rd., Hefei China Http://www.masalta.com.cn Uncertainty Hand-Arm-Vibration (as per ISO8662, Part 1, m/s ): 4.9 m/s... -
Page 11: Trouble Shooting
TROUBLE SHOOTING SYMPTOM POSSIBLE CAUSES SOLUTION Engine speed too low? Set engine speed to correct RPM. Clutch slips? Check or replace clutch. Travel speed too low, and vibration is V-belt slips? Adjust or replace V-belt. weak. Excessive oil in vibration? Drain excess oil and fill to proper level. -
Page 12: Warranty
WARRANTY These products are covered by warranty for a period of six (6) months from the date of purchase against defects in material or workmanship provided that: · The product concerned has been operated and maintained in accordance with the operating instructions. ·... -
Page 13: Ec Declaration
CE-KONFORMITÄTSERKLÄUNG DECLARACIÓN DE CONFORMIDAD DE LA CE DÉCLARATION DE CONFORMITÉ C.E. MASALTA ENGINEERING CO., LTD Weisi Road, Baohe Industrial Estate, HeFei 230051, China hereby certifies that the construction equipment specified hereunder / bescheinigt, da. das Bauger.t / certifica que la máquina de construcció n / atteste que le matériel : Category / Art / Categorí... - Page 14 Distributed By MASALTA ENGINEERING CO., LTD Add: Weisi Road, Baohe Industrial Estate, Hefei, China Tel: 86-551-64846600, 64846601 Fax: 86-551-64846616, 64846626 E-mail: sales@masalta.com.cn, masalta@mail.hf.ah.cn Http://www.masalta.com.cn Version: 01/13/01 Printed:01/2013...
