  • Page 1 MS60 / MSR90 / MS100 PLATE COMPACTOR OWNER’S MANUAL Distributed By www.ruggedmade.com MASALTA ENGINEERING CO., LTD www.masalta.com.cn...
  • Page 2: Table Of Contents

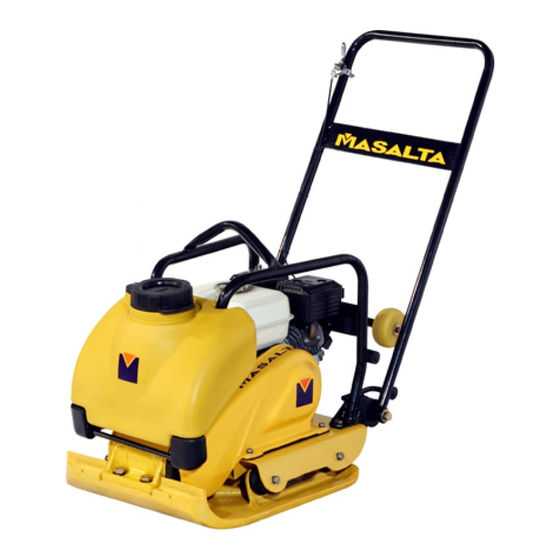

    The goal of our company is to produce power equipment that helps the operator work safely and efficiently. The most Built-in wheel - for easy MS60 series, important safety device for this or any tool is the operator. transportation. MSR90 series Care and good judgement are the best protection against injury.
  • Page 3 ! MECHANICAL HAZARDS DO NOT operate the machine unless all protective guards are in place. KEEP handles and feet clear of rotating and moving parts as they will cause injury if contacted. ENSURE that the motor operation switch is in the OFF position and the spark plug ignition lead is disconnected before removing the guards or making adjustments.
  • Page 4: Operation

    WEAR an approved hearing protection device to limit noise exposure. As required by Occupational Health and Safety regulations. PROTECTIVE CLOTHING ALWAYS wear approved hearing protection when working in a confined work space. Protective goggles and a dust mask should be worn when working in a dusty environment. Protective clothing and footwear may also be desirable when working with hot mix bitumen.
  • Page 5 Turn the engine ON/OFF switch clockwise to the “1” position. Set the throttle to the idle position by moving the throttle lever fully to the right. Do not start the engine on full throttle, as the compactor will vibrate as soon as the engine starts.
  • Page 6: Care And Preventive Maintenance

    CARE AND PREVENTIVE MAINTENANCE Check the oil level in the motor crankcase daily. Inspect the rubber anti vibration mounts for wear or deterioration. If the optional water tank is fitted inspect the water hose and its connections to ensure that they do not leak. Clean the underside of the plate regularly to prevent a build up of material.
  • Page 7 When changing the vibrator oil, remove the drain plug located at the bottom-right of the vibrator, and simply tip the compactor to drain the oil. Note that the oil will drain more easily when it is hot. For MS60 series and MS90 series, replace the oil with 200ML of 10W-30 motor oil;...
  • Page 8: Specification

    MS100-4 Petrol, Honda GX160 4.1 kW (5.5hp) Governed Speed - 3,500r/min Drive Belt 1 x ‘A’ section vee belt Vibrator Model MS50 series MS60 series MS80 series MS90 series MS100 series Frequency (vibration/min) 5900 5600 5500 5500 7000 Centrifugal Force (kN) 10.5...
  • Page 9: Transportation

    Hand-Arm-Vibration (as per ISO8662, Part 1, m/s ): 4-9 DIMENSIONS (L x W x H): MS60 series: 108 x 40 x 80 cm MSR90 series: 110 x 83 x 50 cm MS100 series: 110 x 46 x 66 cm TRANSPORTATION Always shut off engine when transporting machine.
  • Page 10: Warranty

    WARRANTY These products are covered by warranty for a period of six (6) months from the date of purchase against defects in material or workmanship provided that: · The product concerned has been operated and maintained in accordance with the operating instructions. ·...
  • Page 11 To reduce the risk of injury, all operators and maintenance personnel must read and understand these instructions before operating, changing accessories, or performing maintenance on Masalta power equipment. All possible situations cannot be covered in these instructions. Care must be exercised...
  • Page 13 MS60 PARTS LIST 1 ITEM NO. PART NO. DESCRIPTION 103100 SHOCK ABSORBER 103000 BASE PLATE 104000 VIBRATOR ASSY 095016 WASHER 16-GB93 093016 SPRING WASHER 16-GB93 057016-40 BOLT M16 X 40 - GB5783-86 105100 ENGINE NUT 105000 ENGINE MOUNTING PLATE WITH WHEEL PLATE...
  • Page 14 MS60 PARTS LIST 1 ITEM NO. PART NO. DESCRIPTION 106003 COLLAR 057012 BOLT M12 x 55-GB5782 152000 CLUTCH PULLEY ASSY. 152005 CLUTCH WASHER 093008 SPRING WASHER 8-GB93 057008-25 BOLT M8 X 25 - GB5783 107001 INSIDE BELT COVER 011544 V-BELT SPA - GB11544...
  • Page 16 MS60 PARTS LIST 2 ITEM NO. PART NO. DESCRIPTION 154003 WASHER 093010 SPRING WASHER 10 - GB93 057010-25 BOLT M10 x 25-GB5783 154004-1 PULLEY FOR HONDA ENGINE 154004-2 PULLEY FOR ROBIN ENGINE 010008 154005 PROTECTIVE COVER 154006 CASE COVER ( L )
  • Page 18 MS60 PARTS LIST 3 ITEM NO. PART NO. DESCRIPTION 0081800 BOLT M10X30-GB818 0097010 WASHER 10-GB97.1 A2008005-1 CAP OF WATER TANK 0097010 WASHER 10-GB97.1 0088910 NUT M10-GB889 A2008007-1 COCK A2008003-1 CLIP HOOP HOSE ∮10X100 A2008008 A2008009-1 SPRING PIPE 0070008 BOLT M8X16-GB70...
  • Page 19 MSR90 PLATE COMPACTOR - PARTS LIST...
  • Page 21 MS90 PARTS LIST 1 ITEM NO. PART NO. DESCRIPTION 153001 BASE PLATE 154000 VIBRATOR ASSY. 153002 SHOCK ABSORBER 017010 NUT M10 - GB170 093010 SPRING WASHER 10 - GB93 095010 WASHER 095016 WASHER 16 - GB93 093016 SPRING WASHER 16 - GB93 057016 BOLT M16 X 40 - GB5783 - 86 153003...
  • Page 22 MS90 PARTS LIST 1 ITEM NO. PART NO. DESCRIPTION 011544-1 V-BELT FOR DIESEL ENGINE 011544-2 V-BELT FOR PETROL ENGINE 153004 INSIDE BELT COVER 153005-1 BELT COVER FOR DIESEL ENGINE 153005-2 BELT COVER FOR PETROL ENGINE 057008-20 BOLT M8 X 20 - GB5783 093008 SPRING WASHER 8 - GB93 095008...
  • Page 24 MS90 PARTS LIST 2 ITEM NO. PART NO. DESCRIPTION 154009 VIBRATING CASE 154002 PLUG SCREW 154001 PACKING PIECE 154007 ECCENTRIC ROTATOR 027011 BEARING 6211 - GB276 154008 CASE COVER ( R ) 154006 CASE COVER ( L ) 154005 PROTECTIVE COVER 098035 OIL SEAL 35 X 8 - GB9877 034100...
  • Page 25 MS90 PARTS LIST 3 ITEM NO. PART NO. DESCRIPTION 157001 WATER TANK 157007 COCK 157004 SPRINKLING PIPE 157003 PIPE HOLDER ( L ) 157005 PIPE HOLDER ( R ) 057008-30 BOLT M8 X 30 - GB5783 095008 WASHER8-GB95 157002 CAP WATER TANK 057010-30 BOLT M10 X 30 - GB5783 095010...
  • Page 26 MS100 PLATE COMPACTOR - PARTS LIST...
  • Page 28 MS100 PARTS LIST 1 ITEM NO. PART NO. DESCRIPTION 0020001-1 DIESEL ENGINE 0020001-2 HONDA ENGINE 0020001-3 ROBIN ENGINE 0070000 BOLT-GB70 0097000 WASHER-GB97.1 2006000-1 CLUTCH CPL FOR DIESEL ENGINE 2006000-2 CLUTCH CPL FOR HONDA ENGINE 2006000-3 CLUTCH CPL FOR ROBINE ENGINE 0013575-1 V-BELT FOR DIESEL ENGINE 0013575-2...
  • Page 30 MS100 PARTS LIST 2 ITEM NO. PART NO. DESCRIPTION 0061710 NUT M10-GB6170 0093010 SPRING WASHER10-GB93 0097010 WASHER10-GB97.1 2002001 VIBRATION DAMPER 0057812 BOLT M12 X 40-GB5782 0093012 SPRING WASHER12-GB93 2007007 MOUNTING BAR 2007006 ALUMINIUM BASE 2007000 EXCITER CPL 0093016 SPRING WASHER16-GB93 0057816 BOLT M16 X 155-GB5782 2001000...
  • Page 32 MS100 PARTS LIST 3 ITEM NO. PART NO. DESCRIPTION 0057808 BOLT M8X20 - GB5782 0093008 SPRING WASHER 8-GB93 2007001 PULLEY 0089424 RETAINING RING24-GB894 2007005 UNBALANCE WEIGHT 0070006 CAP SCREW M6 X 20-GB70.1 0098770 OIL SEAL-GB9877 2007004 BEARING COVER 2007008 BEARING COVER GASKET 0027606 BEARING42306-GB276 0010768...
  • Page 34 MS100 PARTS LIST 4 ITEM NO. PART NO. DESCRIPTION A2008009-1 SPRING PIPE 0070008 BOLT M8X16-GB70 0093008 SPRING WASHER8-GB93 A2008010 PIPE HOLDER (L.) A2008011 PIPE HOLDER (R.) 0057838 BOLT M8X16-GB5783 0093008 SPRING WASHER8-GB93 A2008012 SEAT PACKING A2008013 RUBBER WASHER 0093008 SPRING WASHER 8-GB93 0081800 BOLT M10X30-GB818 0097010...
