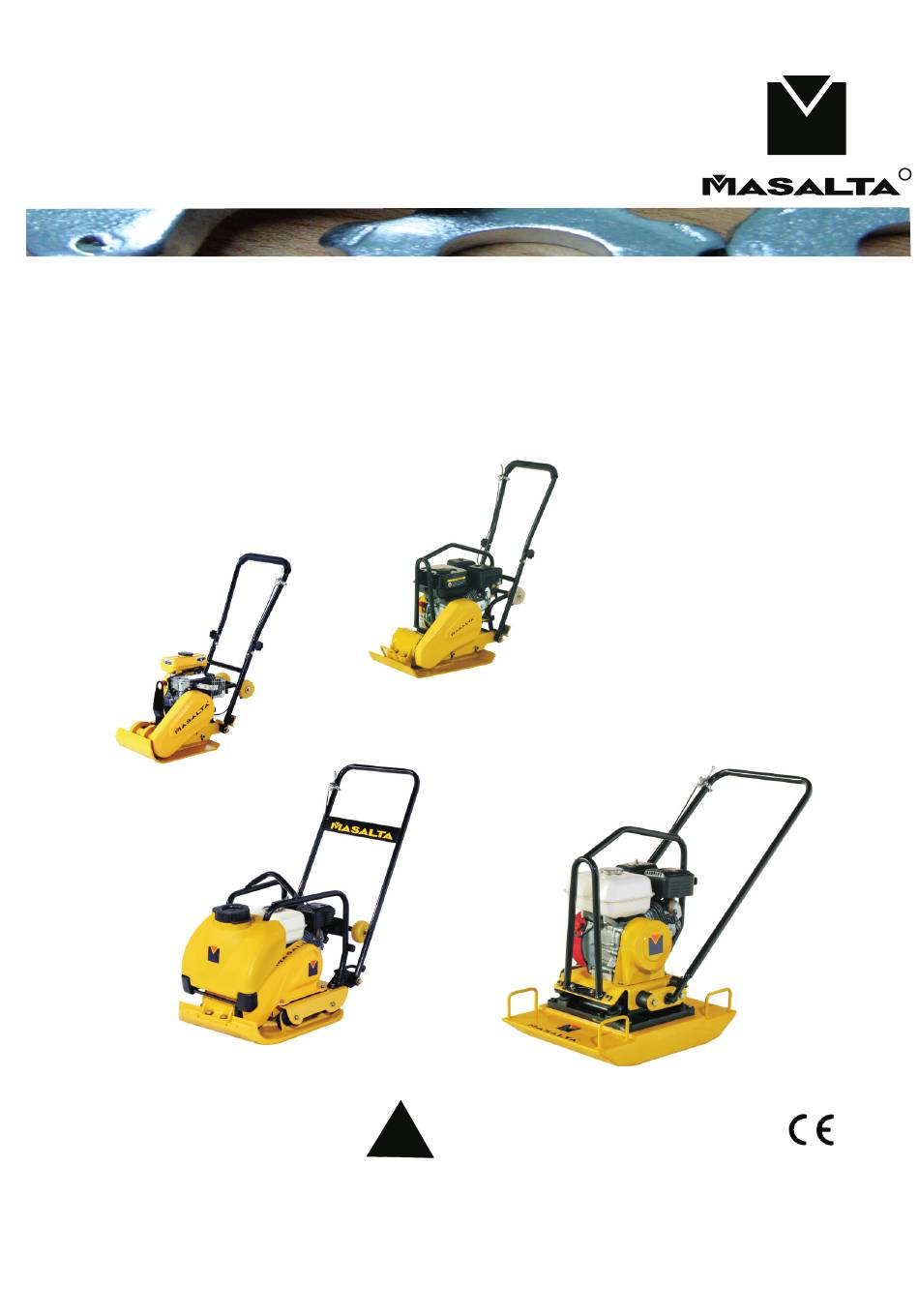

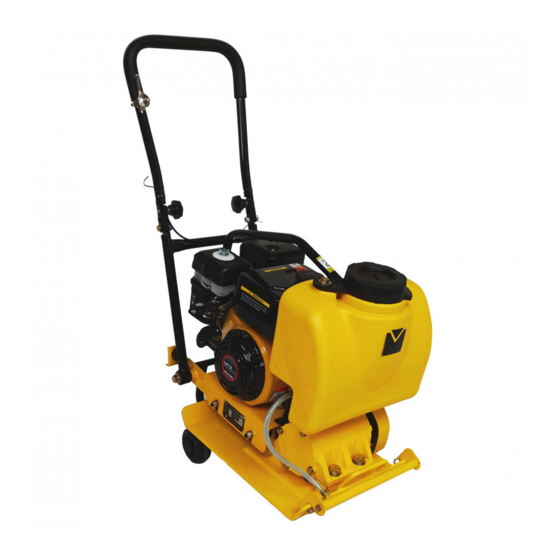

OPERATION MANUAL
PLATE COMPACTOR
MS50 / MS60 / MS90 / MS100
To reduce the risk of injury, all operators and maintenance personnel must read and understand these
instructions before operating, changing accessories, or performing maintenance on Masalta power
equipment. All possible situations cannot be covered in these instructions. Care must be exercised
by everyone using, Maintaining or working near this equipment.
MS50-2
MS90-4
MS60-2
!
WARNING
MS100-4
R
Advertisement
Table of Contents
Related Manuals for Masalta MS60-2
Summary of Contents for Masalta MS60-2
- Page 1 To reduce the risk of injury, all operators and maintenance personnel must read and understand these instructions before operating, changing accessories, or performing maintenance on Masalta power equipment. All possible situations cannot be covered in these instructions. Care must be exercised...
-
Page 2: Table Of Contents
CONTENTS APPLICATIONS Introduction ……………………………………………….…1 Trench compaction Earthworks Applications ……………………………..……….………….1 Road maintenance Landscaping Functions and controls……………………..………………1 Brickpaving Driveway topping Accessories………………………………………………….1 Hazards and risks………………………………………...1-3 FUNCTIONS AND CONTROLS Operation ………………………………………………..3-4 Care and preventive maintenance…………………….. 5-6 Specification ……………………………………….…..…7-8 The motor is controlled by an ON/OFF switch or Transportation…………………………………………….…8 push button is mounted on the motor below the Trouble shooting………………………….…………..……..9... - Page 3 ! MECHANICAL HAZARDS DO NOT operate the machine unless all protective guards are in place. KEEP handles and feet clear of rotating and moving parts as they will cause injury if contacted. ENSURE that the motor operation switch is in the OFF position and the spark plug ignition lead is disconnected before removing the guards or making adjustments.
-
Page 4: Operation
WEAR an approved hearing protection device to limit noise exposure. As required by Occupational Health and Safety regulations. PROTECTIVE CLOTHING ALWAYS wear approved hearing protection when working in a confined work space. Protective goggles and a dust mask should be worn when working in a dusty environment. Protective clothing and footwear may also be desirable when working with hot mix bitumen. - Page 5 Turn the engine ON/OFF switch clockwise to the “1” position. Set the throttle to the idle position by moving the throttle lever fully to the right. Do not start the engine on full throttle, as the compactor will vibrate as soon as the engine starts.
-
Page 6: Care And Preventive Maintenance
CARE AND PREVENTIVE MAINTENANCE Check the oil level in the motor crankcase daily. Inspect the rubber anti vibration mounts for wear or deterioration. If the optional water tank is fitted inspect the water hose and its connections to ensure that they do not leak. Clean the underside of the plate regularly to prevent a build up of material. - Page 7 Changing Vibrator Oil / Vibrator Grease When changing the vibrator oil, remove the drain plug located at the bottom-right of the vibrator, and simply tip the compactor to drain the oil. Note that the oil will drain more easily while it is hot. For MS50 series, MS60 series, MS80 series, MS90 series, replace the oil with 200ML of 10W-30 motor oil;...
-
Page 8: Specification
SPECIFICATIONS Motor Model Engine Type Max. Output MS50 MS50-2 Chinese Petrol Engine 1.8 kW (2.5hp) MS60-2 Chinese Petrol Engine 4.1 kW (5.5hp) MS60 MS60-3 Petrol, Robin EX13 3.2 kW (4.3hp) MS60-4 Petrol, Honda GX160 4.1 kW (5.5hp) MS90-1 Diesel, Kipor 170 3.1 kW (4.2hp) -
Page 9: Transportation
Speed (cm/s): Measured sound power 105dB 102.2dB Manuf. Yr.: Serial No.: level Guaranteed sound Masalta Engineering Co., Limited 108dB 105.2dB Rm 501, Fortune Plaza, No.278 of Suixi Rd., Hefei China power level Http://www.masalta.com.cn Uncertainty Hand-Arm-Vibration (as per ISO8662, Part 1, m/s... -
Page 10: Trouble Shooting
TROUBLE SHOOTING SYMPTOM POSSIBLE CAUSES SOLUTION Engine speed too low? Set engine speed to correct RPM. Clutch slips? Check or replace clutch. Travel speed too low, and vibration is V-belt slips? Adjust or replace V-belt. weak. Excessive oil in vibration? Drain excess oil and fill to proper level. -
Page 11: Warranty
WARRANTY These products are covered by warranty for a period of six (6) months from the date of purchase against defects in material or workmanship provided that: · The product concerned has been operated and maintained in accordance with the operating instructions. ·... -
Page 12: Ec Declaration
CE-KONFORMITÄTSERKLÄUNG DECLARACIÓN DE CONFORMIDAD DE LA CE DÉCLARATION DE CONFORMITÉ C.E. MASALTA ENGINEERING CO., LTD 20 Dalian Road, Baohe Industrial Estate, HeFei 230051, China hereby certifies that the construction equipment specified hereunder / bescheinigt, da. das Bauger.t / certifica que la máquina de construcción / atteste que le matériel : Category / Art / Categoría / Catégorie:... - Page 13 Distributed By MASALTA ENGINEERING CO., LTD Add: 20 Dalian Road, Baohe Industrial Estate, Hefei, China Tel: 86-551-64846600, 64846601 Fax: 86-551-64846616, 64846626 E-mail: sales@masalta.com.cn, masalta@mail.hf.ah.cn Http://www.masalta.com.cn Version: 01/14/01 Printed:01/2014...
