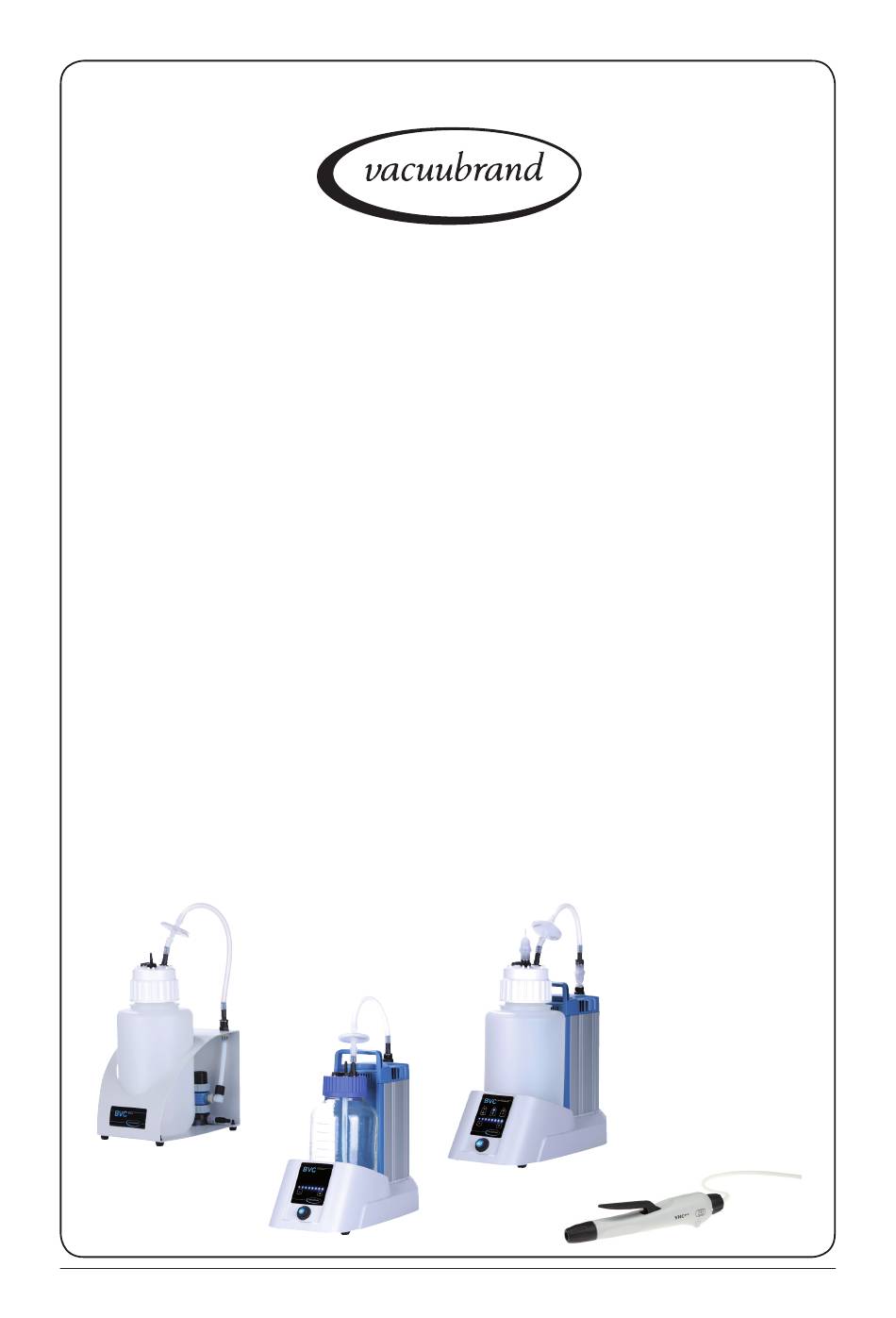

Technology for Vacuum Systems

Decontamination

BVC basic

BVC basic G

BVC control

BVC control G

BVC professional

BVC professional G

VHC

pro

Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check carefully

the validity of this document with respect to his product. 11/08/2015 // 999281

Table of Contents

Need help?

Do you have a question about the BVC Basic and is the answer not in the manual?

Questions and answers

Summary of Contents for vacuubrand BVC Basic

Page 1 1 of 20 Technology for Vacuum Systems Decontamination BVC basic BVC basic G BVC control BVC control G BVC professional BVC professional G Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check carefully...
Page 2 page 2 of 20 After sales service: Contact your local dealer or call +49 9342 808-5500. Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check carefully the validity of this document with respect to his product. 11/08/2015 // 999281...
Page 3: Table Of Contents
Safety information! .....................5 Materials ........................6 Decontamination of the vacuum pump ..............8 Disassembling the BVC control / professional............9 Disassembling the BVC basic .................15 Disassembling the VHC ..................16 Repair - Maintenance - Return - Calibration ............18 Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check carefully...
Page 4 page 4 of 20 + WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury. NOTICE NOTICE is used to address practices not related to personal injury. Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check carefully the validity of this document with respect to his product.
Page 5: Safety Information
Do not return devices which have been in contact with biological substances of risk level 3 or 4. These devices cannot be checked, maintained or repaired. The devices must not returned to VACUUBRAND due to a residual risk in spite of decon- tamination.
Page 6: Materials
To facilitate the selection of a compatible disinfectant the materials of the devices NOTICE are listed. For information about the compatibility with the materials, ask the manufacturer of the disinfectant. Surfaces Material* BVC basic / G Support coated stainless steel PA, PTFE, PP, PPS, POM, ETFE, Valve block aluminium alloy Feet...
Page 7 page 7 of 20 continued „Filter and bottles“ Collection bottle 2l Bottle borosilicate glass Cap insert Flat seal EPDM Hose nozzle at bottle head (connection VHC Hose in bottle PTFE Hose nozzle (connection filter) PPS, glass fibre reinforced Closing screw PPS, glass fibre reinforced Vacuum pump Material...
Page 8: Decontamination Of The Vacuum Pump
page 8 of 20 Decontamination of the vacuum pump Important information Devices may be contaminated due to operation. IMPORTANT The vacuum pump of the BVC may contaminated as well. The protective filter with a pore size of 0.2 µm does not avoid safely a contamination of the vacuum pump in all cases.
Page 9: Disassembling The Bvc Control / Professional
page 9 of 20 Disassembling the BVC control / professional IMPORTANT Connect person to ground before coming in contact with electronic parts. Tools required (metric): Diaphragm key SW 46 (order no.: 637777) Screw driver Torx TX20 Open-ended wrench SW 19 Tweezers ➨...
Page 10 page 10 of 20 ➨ Unscrew hose nozzle, or hose nozzle with coupling, using an open-ended wrench. ➨ Unscrew cover, paying attention to washers. ➨ Remove the cover of the housing cover from the housing. Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check carefully the validity of this document with respect to his product.
Page 11 page 11 of 20 View of the disassembled pump head parts ME 1C 1: Cover of housing cover Diaphragm clamping disc with square head 2: Housing cover screw Housing cover insert Diaphragm Valves Diaphragm support disc Head cover 10: Washers Guiding pin 11: Rod 12: Housing...
Page 12 page 12 of 20 ➨ Unscrew four screws at the pump head, paying attention to washers. Remove housing cover. ➨ Unscrew union nut and remove hose from elbow fitting. ➨ Remove housing cover insert with elbow fitting. ➨ Note position of valves. ➨...
Page 13 page 13 of 20 ➨ Lay down the BVC as shown in the figure. ➨ Unscrew screws at the base plate. ➨ Slide the base plate to the side. IMPORTANT Connect person to ground before coming in contact with electronic parts.
Page 14 page 14 of 20 Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check carefully the validity of this document with respect to his product. 11/08/2015 // 999281...
Page 15: Disassembling The Bvc Basic
15 of 20 Disassembling the BVC basic Disassemble the BVC basic into individual components as shown in the figure. Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check carefully...
Page 16: Disassembling The Vhc Pro
page 16 of 20 Disassembling the VHC ➨ Select continuous aspiration. ➨ Turn cap (1) and remove (2). ➨ Pull adapter with hose out of the VHC ➨ Remove adapter from hose. ➨ Pull aspiration hose out of the handle. Documents are only to be used and distributed completely and unchanged.
Page 17 page 17 of 20 NOTICE It is not possible to disassemble the VHC completely. IMPORTANT Do not return the aspiration hose. Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check carefully the validity of this document with respect to his product.
Page 18: Repair - Maintenance - Return - Calibration
The declaration must arrive before the equipment. Enclose a second completed copy with the product. Remove all components from the device that are no original VACUUBRAND compo- nents. VACUUBRAND will not be responsible for lost or damaged components that are no original components.
Page 19: The Validity Of This Document With Respect To His Product. 11/08/2015 // 999281
* Contact the VACUUBRAND service absolutely before dispatching the device. ** Devices which have been in contact with biological substances of risk level 3 or 4 cannot be checked, main- tained or repaired. Also decontaminated devices must not returned to VACUUBRAND due to a residual risk. ☐...
Page 20 T +49 9342 808-0 · F +49 9342 808-5555 info@vacuubrand.com · www.vacuubrand.com © 2013 VACUUBRAND GMBH + CO KG Printed in Germany Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check carefully...
