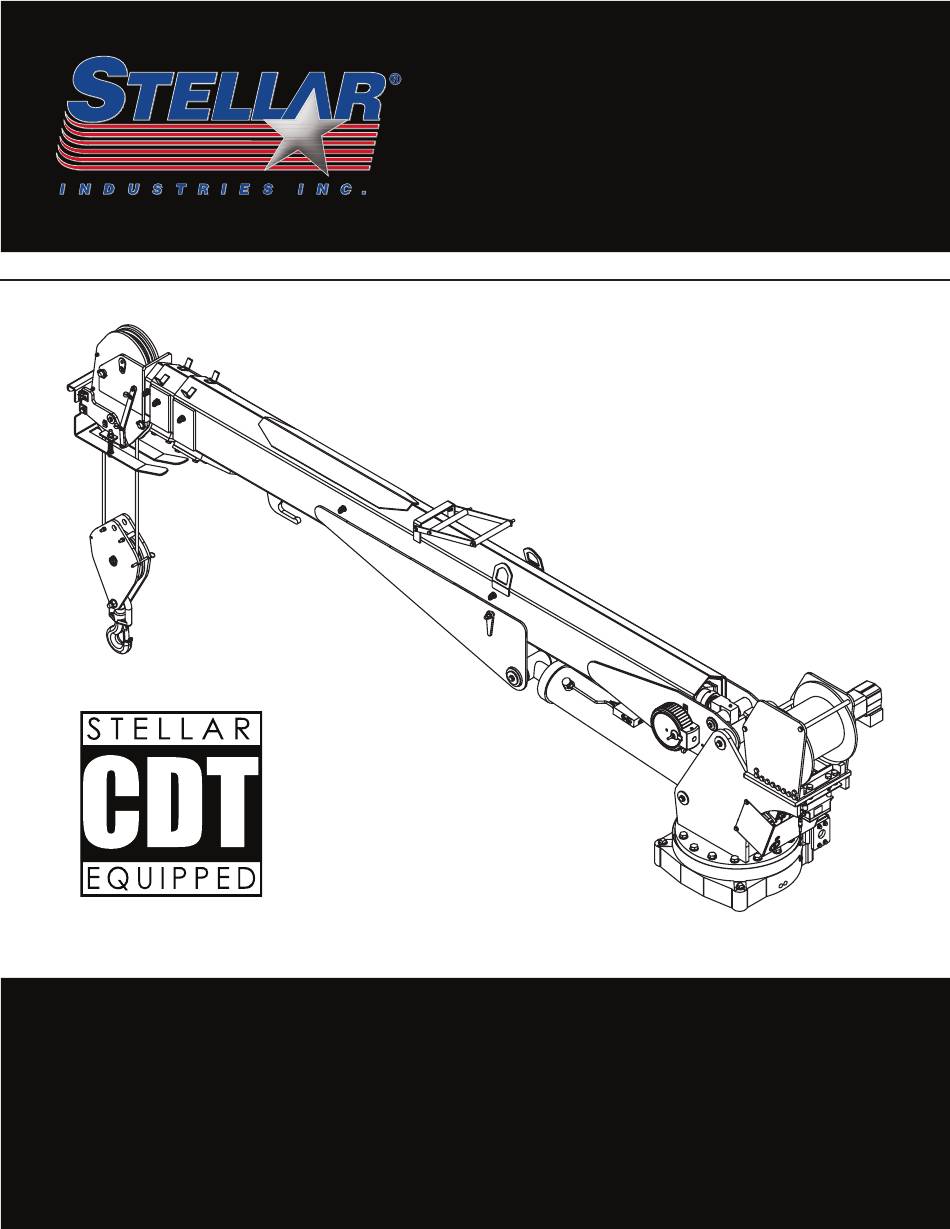

- Page 1 Model 14530 Telescopic Crane Owner’s Manual Installation • Assembly Drawings • Parts ® Notice: A copy of this manual must remain with the equipment at all times. For a printable download copy, please visit: www.stellarindustries.com Stellar Industries, Inc. 190 State Street...
- Page 2 MADE IN THE U.S.A. BY STELLAR INDUSTRIES, INC. PN C5942 M OD EL NO . S E R I A L N O. MADE IN THE U.S.A. BY STELLAR INDUSTRIES, INC. PN C5942 Page ii | Stellar 14530 Telescopic Crane Owner’s Manual ®...
-
Page 3: Table Of Contents
Main Cylinder Assembly - PN 26197 ......23 Extension Cylinder Assembly - PN 72940 ...... 24 Cable & Hook Assembly - PN 56274 ......25 Chapter 4 - Replacement Parts ........27 Stellar 14530 Telescopic Crane Owner’s Manual | Page iii ®... -
Page 4: Introduction
For Technical Questions, Information, Parts, or Warranty, Call Toll-Free at 800-321-3741 Hours: Monday - Friday, 8:00 a.m. - 5:00 p.m. CST Or email at the following addresses: Technical Questions, and Information service@stellarindustries.com Order Parts parts@stellarindustries.com Warranty Information warranty@stellarindustries.com Page iv | Stellar 14530 Telescopic Crane Owner’s Manual ®... -
Page 5: Chapter 1 - Specifications
PTO & Pump: 12 gpm @ 2,600 psi (45.4 lpm @ 180 bar) *Crane rating in Boost Mode. Normal crane rating is 70,000 ft-lbs (9.68 TM). **Maximum capacities in Boost Mode. Stellar 14530 Telescopic Crane Owner’s Manual | Page 1 ®... -
Page 6: Capacity Chart - Decal Pn 71873
8.5 m 2420 kg 2795 lbs 3280 lbs 1270 kg 1490 kg 2365 lbs 1070 kg 0’ 13’4” 21’8” 30’ 4.06 m 6.60 m 9.14 m PN 71873 - Rev A Page 2 | Stellar 14530 Telescopic Crane Owner’s Manual ®... -
Page 7: Dimensional Drawing 1
Specifications Sheet Dimensional Drawing 1 Page: 3 of 4 6'7" 2.01m 5'1" 1.55m 3'7" 1.09m 32'0" 9.75m 23'9" 7.25m 15'7" 4.75m 1'11" 1'2" 0.58m 0.36m 13'3" 4.04m 21'7" 6.58m 29'11" 9.12m Stellar 14530 Telescopic Crane Owner’s Manual | Page 3 ®... -
Page 8: Dimensional Drawing 2
Dimensional Drawing 2 4'2" 1.27m 2'4" 0.72m 3'7" 1.09m 1'10" 0.57m 1'1" 0.33m 4'6" 1.38m 13'3" 4.04m 15'3" 4.64m Page 4 | Stellar 14530 Telescopic Crane Owner’s Manual ®... -
Page 9: Chapter 2 - Installation
Chapter 2 - Installation General Installation This chapter is designed to serve as a general guide for the installation of a Stellar 14530 Crane on a Stellar Service Body. Each installation is considered unique so certain portions of this chapter may or may not apply to your direct application. If a question should arise during the installation process, please contact Stellar Customer Service at (800) 321 3741. -
Page 10: Torque Data Chart
“Dry” means plain or zinc plated without lubrication. Tighten lubricated bolts to approximately 80% of dry bolts. Page 6 | Stellar 14530 Telescopic Crane Owner’s Manual ®... -
Page 11: Installation Overview
Installation Overview 1. Determine that the mounting location for the 14530 crane is at least 25” x 22” (63.5 x 55.9 cm). 2. Use the detail below to drill 1.31” diameter holes into the mounting plate. Run tap on the threads of the base to be sure they are clean. -
Page 12: Control Kit - Pn 72936
EXTENSION EXTENSION EXTEND RETRACT WINCH WINCH DOWN MAIN MAIN DOWN PROPORTIONAL VALVE ROD END BASE END Page 8 | Stellar 14530 Telescopic Crane Owner’s Manual ®... -
Page 13: Control Kit (Non-Boost) - Pn 72937
EXTENSION EXTENSION RETRACT EXTEND WINCH WINCH DOWN MAIN MAIN DOWN PROPORTIONAL VALVE ROD END BASE END Stellar 14530 Telescopic Crane Owner’s Manual | Page 9 ®... -
Page 14: Hydraulic Kit - Pn 57573
Hydraulic Kit - PN 57573 PN 57573 Page 10 | Stellar 14530 Telescopic Crane Owner’s Manual ®... -
Page 15: Valve Bank - Pn 57572
B4 A4 2600 PSI 1/4 NPT PN 57572 61059 VALVE RELIEF 14528 D03 61060 VALVE FLOW CTRL 14528 D03 61061 COIL FLOW CTRL 14528 D03 61062 VALVE TANDEM 14528 D03 Stellar 14530 Telescopic Crane Owner’s Manual | Page 11 ®... -
Page 16: Hydraulic Installation
Lubrication Recommendations for fluid details). Winch Case Drain (Blue) Optional Load Sense 3/8” Line 1/4” Line Return Pressure 3/4” Line 1/2” Line Stabilizer Functions Stabilizer Functions Typical Stabilizer Valve with Power Beyond Capabilities Page 12 | Stellar 14530 Telescopic Crane Owner’s Manual ®... -
Page 17: Winch Case Drain Installation
Connect the second end of the winch case drain to unshared fitting on the top of the reservoir as shown in Fig 2. Fig.1 Fig. 2 Winch Case Drain (Blue) Optional Load Sense 3/8” Line 1/4” Line Return Pressure 3/4” Line 1/2” Line Stellar 14530 Telescopic Crane Owner’s Manual | Page 13 ®... -
Page 18: Hydraulic System
Hydraulic System B3 A3 B2 A2 2600 PSI 1/4 NPT Page 14 | Stellar 14530 Telescopic Crane Owner’s Manual ®... -
Page 19: Stability Procedure
Note: The radio can only be put into stability mode five times. After that, the radio would have to be returned to Stellar to be reprogrammed to allow additional stability testing. All other radio functions will work properly even if stability mode is not available. Stellar 14530 Telescopic Crane Owner’s Manual | Page 15 ®... - Page 20 6. Record this number in the data box for Zone 1. This is the revised capacity due to stability for this zone. 7. Repeat this procedure for each zone until the worksheet is completed. 8. This is the revised capacity based on stability of this package. Page 16 | Stellar 14530 Telescopic Crane Owner’s Manual ®...
-
Page 21: Decal Kit - Pn 71871
Main Boom (Both Sides) 71873 DECAL CAPACITY 14530 Main Boom and Crane Compartment For CDT™ equipped cranes, use PN 54588. For CDTplus™ equipped cranes, use PN 71895. ** Not shown. Stellar 14530 Telescopic Crane Owner’s Manual | Page 17 ®... - Page 22 This page intentionally left blank. Page 18 | Stellar 14530 Telescopic Crane Owner’s Manual ®...
-
Page 23: Chapter 3 - Assembly Drawings
TBE AIR SAEJ844 TYPE A .25 (RM) 22161 FTG 2-2 FP-FP COUPLER STRAIGHT BRASS 0343 WASHER 0.31 USS FLAT ZINC 0420 CAP SCR 0.31-18X0.75 HHGR5 56589 ZERK 1/8 NPT STRAIGHT LONG THREAD 21151 GASKET MOTOR 008-10056-1 Stellar 14530 Telescopic Crane Owner’s Manual | Page 19 ®... -
Page 24: Mast Assembly - Pn 71864
WASHER 0.63 SAE FLAT YELLOW GR8 C6219 WASHER 0.75 SAE FLAT YELLOW GR8 0343 WASHER 0.31 USS FLAT ZINC 24868 NUT 0.63-11 HHGR8 NYLOC 53067 NUT 0.63-11 JAM NYLOC 56165 CAP SCR 6MMX8MM HH 8.8(GR5) Page 20 | Stellar 14530 Telescopic Crane Owner’s Manual ®... -
Page 25: Main Boom Assembly - Pn 71865
NUT 0.38-16 HHGR5 NYLOC 9320 PIN CAP 0.44X1.75X0.19 SS 26755 CAP SCR 0.38-16X10.00 HHGR5 72601 CORD REEL ASM 30 FT CRANE 18618 SCREW #6-32X1.00 PHMS PH 18765 WASHER #6 SAE FLAT ZINC Stellar 14530 Telescopic Crane Owner’s Manual | Page 21 ®... -
Page 26: Extension Boom Assembly - Pn 71866
CAP SCR 0.50-13X1.25 HHGR8 C6106 NUT 0.50-13 HHGR5 NYLOC 0342 NUT 0.31-18 HHGR5 NYLOC 71870 EXT BOOM 2ND 14530 FS/CRADLE A2B 61838PC PLATE SHEAVE MOUNTING 14528 13400ZP PIN TEAR DROP 1.00X4.38 45125 PIN HITCH 1.00 FORK KPCC 61549PC COLLAR 1.13X2.00X1.13 W/HOLE 0489 CAP SCR 0.31-18X2.50 HHGR5... -
Page 27: Main Cylinder Assembly - Pn 26197
This cylinder uses the following seal kits: • Seal Kit PN 35649 on cylinders manufactured prior to July 2012. • Seal Kit PN 65935 on cylinders manufactured after July 2012. Stellar 14530 Telescopic Crane Owner’s Manual | Page 23 ®... -
Page 28: Extension Cylinder Assembly - Pn 72940
Extension Cylinder Assembly - PN 72940 CYLINDER SERIAL TAG LOCATION C-BALANCE VALVE 9803 CYLINDER SEAL KIT 80505 PN 72940 72939 CYLINDER EXT 2 STAGE 3.0X3.0X200 14530 28840 MANIFOLD ASM14528 EXT CBBD-LJN-XVO 14601 CAP SCR 0.38-16X2.25 SH ZC 11882 CAP SCR 0.38-16X1.75 SH ZC 73490 TUBE ASM 0.50X89.25 EXT CYL 14530... -
Page 29: Cable & Hook Assembly - Pn 56274
WASHER 0.75 SAE FLAT YELLOW GR8 0867 MACHY WASHER 1.00ID 14GA 26762 HOOK 7 TON SWIVEL CROSBY 1028632 13436 PIN .38X4.00 QUICK RELEASE 26761 WIRE ROPE .50 6X19 IWRC-XIP 120FT Stellar 14530 Telescopic Crane Owner’s Manual | Page 25 ®... - Page 30 This page intentionally left blank. Page 26 | Stellar 14530 Telescopic Crane Owner’s Manual ®...
-
Page 31: Chapter 4 - Replacement Parts
Wire Rope 12824 Hitch Pin 1.00 x 4.50 45125 Hitch Pin 1.00 Fork 13436 Quick Release Pin .38 x 4.00 35105 Limit Switch 72601 Cord Reel 26762 Hook 42302 Winch Motor Stellar 14530 Telescopic Crane Owner’s Manual | Page 27 ®... - Page 32 Subject to Change without Notification. © 2018 Stellar Industries, Inc.
