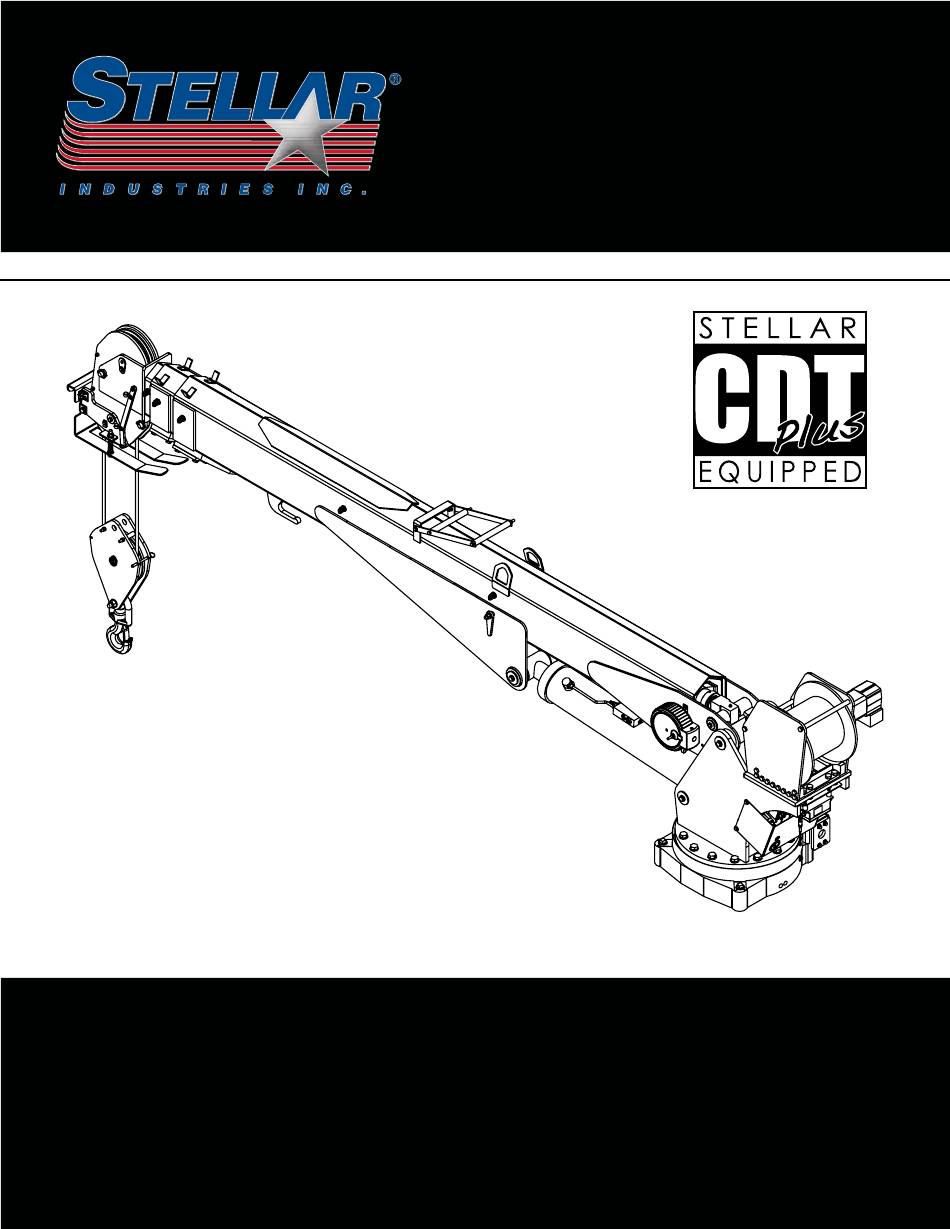

Model 14530
Telescopic Crane
Owner's Manual
Installation • Assembly Drawings • Parts
®
TM
Notice: A copy of this manual must remain with the equipment at all times.
For a printable download copy, please visit: www.stellarindustries.com
Stellar Industries, Inc.
190 State Street
PO Box 169
Garner, IA 50438
800-321-3741
Fax: 641-923-2811
Subject to Change without Notification.
www.stellarindustries.com
© 2016 Stellar Industries, Inc.
Last Revision: 10/27/16
Advertisement
Table of Contents
Related Manuals for stellar labs 14530
Summary of Contents for stellar labs 14530
- Page 1 Model 14530 Telescopic Crane Owner’s Manual Installation • Assembly Drawings • Parts ® Notice: A copy of this manual must remain with the equipment at all times. For a printable download copy, please visit: www.stellarindustries.com Stellar Industries, Inc. 190 State Street...
- Page 2 MADE IN THE U.S.A. BY STELLAR INDUSTRIES, INC. PN C5942 http://www.stellarindustries.com/ip M O DE L NO . SER IA L N O. MADE IN THE U.S.A. BY STELLAR INDUSTRIES, INC. PN C5942 Page ii | Stellar 14530 Telescopic Crane Owner’s Manual ®...
-
Page 3: Table Of Contents
Extension Boom Assembly - PN 75099 ..........22 Main Cylinder Assembly - PN 74655 ..........23 Extension Cylinder Assembly - PN 72940 ......... 24 Cable & Hook Assembly - PN 56274 ..........25 Stellar 14530 Telescopic Crane Owner’s Manual | Page iii ®... -
Page 4: Introduction
For Technical Questions, Information, Parts, or Warranty, Call Toll-Free at 800-321-3741 Hours: Monday - Friday, 8:00 a.m. - 5:00 p.m. CST Or email at the following addresses: Technical Questions, and Information service@stellarindustries.com Order Parts parts@stellarindustries.com Warranty Information warranty@stellarindustries.com Page iv | Stellar 14530 Telescopic Crane Owner’s Manual ®... -
Page 5: Chapter 1 - Specifications
PTO & Pump: 12 gpm @ 2,600 psi (45.4 lpm @ 180 bar) *Crane rating in Boost Mode. Normal crane rating is 70,000 ft-lbs (9.68 TM). **Maximum capacities in Boost Mode. Stellar 14530 Telescopic Crane Owner’s Manual | Page 1 ®... -
Page 6: Capacity Chart - Decal Pn 71873
8.5 m 2420 kg 2795 lbs 3280 lbs 1270 kg 1490 kg 2365 lbs 1070 kg 0’ 13’4” 21’8” 30’ 4.06 m 6.60 m 9.14 m PN 71873 - Rev A Page 2 | Stellar 14530 Telescopic Crane Owner’s Manual ®... -
Page 7: Dimensional Drawing 1
Specifications Sheet Page: 3 of 4 Dimensional Drawing 1 6'7" 2.01m 5'1" 1.55m 3'7" 1.09m 32'0" 9.75m 23'9" 7.25m 15'7" 4.75m 1'11" 1'2" 0.58m 0.36m 13'3" 4.04m 21'7" 6.58m 29'11" 9.12m Stellar 14530 Telescopic Crane Owner’s Manual | Page 3 ®... -
Page 8: Dimensional Drawing 2
Model 14530 Crane Specifications Sheet Page: 4 of 4 Dimensional Drawing 2 4'2" 1.27m 2'4" 0.72m 3'7" 1.09m 1'10" 0.57m 1'1" 0.33m 4'6" 1.38m 13'3" 4.04m 15'3" 4.64m Page 4 | Stellar 14530 Telescopic Crane Owner’s Manual ®... -
Page 9: Chapter 2 - Installation
Chapter 2 - Installation General Installation This chapter is designed to serve as a general guide for the installation of a Stellar 14530 Crane on a Stellar Service Body. Each installation is considered unique so certain portions of this chapter may or may not apply to your direct application. If a question should arise during the installation process, please contact Stellar Customer Service at (800) 321 3741. -
Page 10: Torque Data Chart
“Dry” means plain or zinc plated without lubrication. Tighten lubricated bolts to approximately 80% of dry bolts. Page 6 | Stellar 14530 Telescopic Crane Owner’s Manual ®... -
Page 11: Installation Overview
Installation Overview 1. Determine that the mounting location for the 14530 crane is at least 25” x 22” (63.5 x 55.9 cm). 2. Use the detail below to drill 1.31” diameter holes into the mounting plate. Run tap on the threads of the base to be sure they are clean. -
Page 12: Control Kit - Pn 74985
RETRACT EXTEND WINCH WINCH DOWN MAIN MAIN DOWN PROPORTIONAL VALVE Page 8 | Stellar 14530 Telescopic Crane Owner’s Manual ®... -
Page 13: Electrical Circuit Grounding
• Be sure to grind the frame rail around the hole to ensure a proper ground connection. • Frame rail thickness may require additional flat washers (as shown). • Use an electrical coating on hardware to prevent corrosion. Stellar 14530 Telescopic Crane Owner’s Manual | Page 9 ®... -
Page 14: Hydraulic Kit - Pn 57573
Hydraulic Kit - PN 57573 PN 57573 Page 10 | Stellar 14530 Telescopic Crane Owner’s Manual ®... -
Page 15: Valve Bank - Pn 57572
B4 A4 2600 PSI 1/4 NPT PN 57572 61059 VALVE RELIEF 14528 D03 61060 VALVE FLOW CTRL 14528 D03 61061 COIL FLOW CTRL 14528 D03 61062 VALVE TANDEM 14528 D03 Stellar 14530 Telescopic Crane Owner’s Manual | Page 11 ®... -
Page 16: Hydraulic Installation
Lubrication Recommendations for fluid details). Winch Case Drain (Blue) Optional Load Sense 3/8” Line 1/4” Line Return Pressure 3/4” Line 1/2” Line Stabilizer Functions Stabilizer Functions Typical Stabilizer Valve with Power Beyond Capabilities Page 12 | Stellar 14530 Telescopic Crane Owner’s Manual ®... -
Page 17: Winch Case Drain Installation
Connect the second end of the winch case drain to unshared fitting on the top of the reservoir as shown in Fig 2. Fig.1 Fig. 2 Winch Case Drain (Blue) Optional Load Sense 3/8” Line 1/4” Line Return Pressure 3/4” Line 1/2” Line Stellar 14530 Telescopic Crane Owner’s Manual | Page 13 ®... -
Page 18: Hydraulic System
Hydraulic System B3 A3 B2 A2 2600 PSI 1/4 NPT Page 14 | Stellar 14530 Telescopic Crane Owner’s Manual ®... -
Page 19: Face Seal/O-Ring Size Chart
Fitting Face Seal (A) O-ring Boss (B) Size Size Stellar Stellar ® ® 1/4” C2027 D1245 3/8” C2028 D1246 1/2” C2029 D1247 5/8” 32223 D1248 3/4” D1244 D1249 1” D1250 Stellar 14530 Telescopic Crane Owner’s Manual | Page 15 ®... -
Page 20: Stability Procedure
Note: The radio can only be put into stability mode five times. After that, the radio would have to be returned to Stellar to be reprogrammed to allow additional stability testing. All other radio functions will work properly even if stability mode is not available. Page 16 | Stellar 14530 Telescopic Crane Owner’s Manual ®... -
Page 21: Crane Load Level Indicator
This level should be installed in the isolated crane compartment of the body. If level indicator is missing or damaged, please contact Stellar Customer Support for a replacement. PN 76483 Stellar 14530 Telescopic Crane Owner’s Manual | Page 17 ®... -
Page 22: Decal Kit - Pn 71871
Suggested: Rear body/tailgate 27** C5911 DECAL STELLAR 2x4.5 Suggested: Side corners of body For CDT™ equipped cranes, use PN 54588. For CDTplus™ equipped cranes, use PN 71895. ** Not shown. Page 18 | Stellar 14530 Telescopic Crane Owner’s Manual ®... -
Page 23: Chapter 3 - Assembly Drawings
TBE AIR SAEJ844 TYPE A .25 (RM) 22161 FTG 2-2 FP-FP COUPLER STRAIGHT BRASS 0343 WASHER 0.31 USS FLAT ZINC 0420 CAP SCR 0.31-18X0.75 HHGR5 56589 ZERK 1/8 NPT STRAIGHT LONG THREAD 21151 GASKET MOTOR 008-10056-1 Stellar 14530 Telescopic Crane Owner’s Manual | Page 19 ®... -
Page 24: Mast Assembly - Pn 74653
WASHER 0.75 SAE FLAT YELLOW GR8 C1028 CAP SCR 0.75-10X3.00 HHGR8 C0922 CAP SCR 0.31-18X1.00 HHGR5 0484 CAP SCR 0.31-18X0.50 HHGR5 0481 CAP SCR 0.25-20X2.00 HHGR5 0333 NUT 0.25-20 HHGR5 NYLOC Page 20 | Stellar 14530 Telescopic Crane Owner’s Manual ®... -
Page 25: Main Boom Assembly - Pn 74654
CAP SCR 0.50-13X1.25 HHGR8 0333 NUT 0.25-20 HHGR5 NYLOC 0478 CAP SCR 0.25-20X0.50 HHGR5 0480 CAP SCR 0.25-20X1.00 HHGR5 C6353 WASHER 0.38 SAE FLAT YELLOW GR8 9843 CAP SCR 0.38-16X0.75 HHGR8 Stellar 14530 Telescopic Crane Owner’s Manual | Page 21 ®... -
Page 26: Extension Boom Assembly - Pn 75099
CAP SCR 0.50-13X1.25 HHGR8 C6106 NUT 0.50-13 HHGR5 NYLOC 0342 NUT 0.31-18 HHGR5 NYLOC 71870 EXT BOOM 2ND 14530 FS/CRADLE A2B 61838PC PLATE SHEAVE MOUNTING 14528 13400ZP PIN TEAR DROP 1.00X4.38 45125 PIN HITCH 1.00 FORK KPCC 61549PC COLLAR 1.13X2.00X1.13 W/HOLE 0489 CAP SCR 0.31-18X2.50 HHGR5... -
Page 27: Main Cylinder Assembly - Pn 74655
PN 74655 26198 CYLINDER INNER 6.00X25.75 C1854 FTG 6-8 MFS-MORB STRAIGHT 0279 FTG 6-6 MFS-MORB STRAIGHT 13080 MANIFOLD SINGLE T11A 3500 PSI 26212 TUBE ASM 0.38X9.63 MAIN CYL 6620 YZ Stellar 14530 Telescopic Crane Owner’s Manual | Page 23 ®... -
Page 28: Extension Cylinder Assembly - Pn 72940
Extension Cylinder Assembly - PN 72940 CYLINDER SERIAL TAG LOCATION C-BALANCE VALVE 9803 CYLINDER SEAL KIT 80505 PN 72940 72939 CYLINDER EXT 2 STAGE 3.0X3.0X200 14530 28840 MANIFOLD ASM14528 EXT CBBD-LJN-XVO 14601 CAP SCR 0.38-16X2.25 SH ZC 11882 CAP SCR 0.38-16X1.75 SH ZC 73490 TUBE ASM 0.50X89.25 EXT CYL 14530... -
Page 29: Cable & Hook Assembly - Pn 56274
WASHER 0.75 SAE FLAT YELLOW GR8 0867 MACHY WASHER 1.00ID 14GA 26762 HOOK 7 TON SWIVEL CROSBY 1028632 13436 PIN .38X4.00 QUICK RELEASE 26761 WIRE ROPE .50 6X19 IWRC-XIP 120FT Stellar 14530 Telescopic Crane Owner’s Manual | Page 25 ®... - Page 30 Subject to Change without Notification. © 2016 Stellar Industries, Inc.
