Installation Instructions
1 Relay connection
2 Fuses
3 Motor connection
4 Input/mains connection

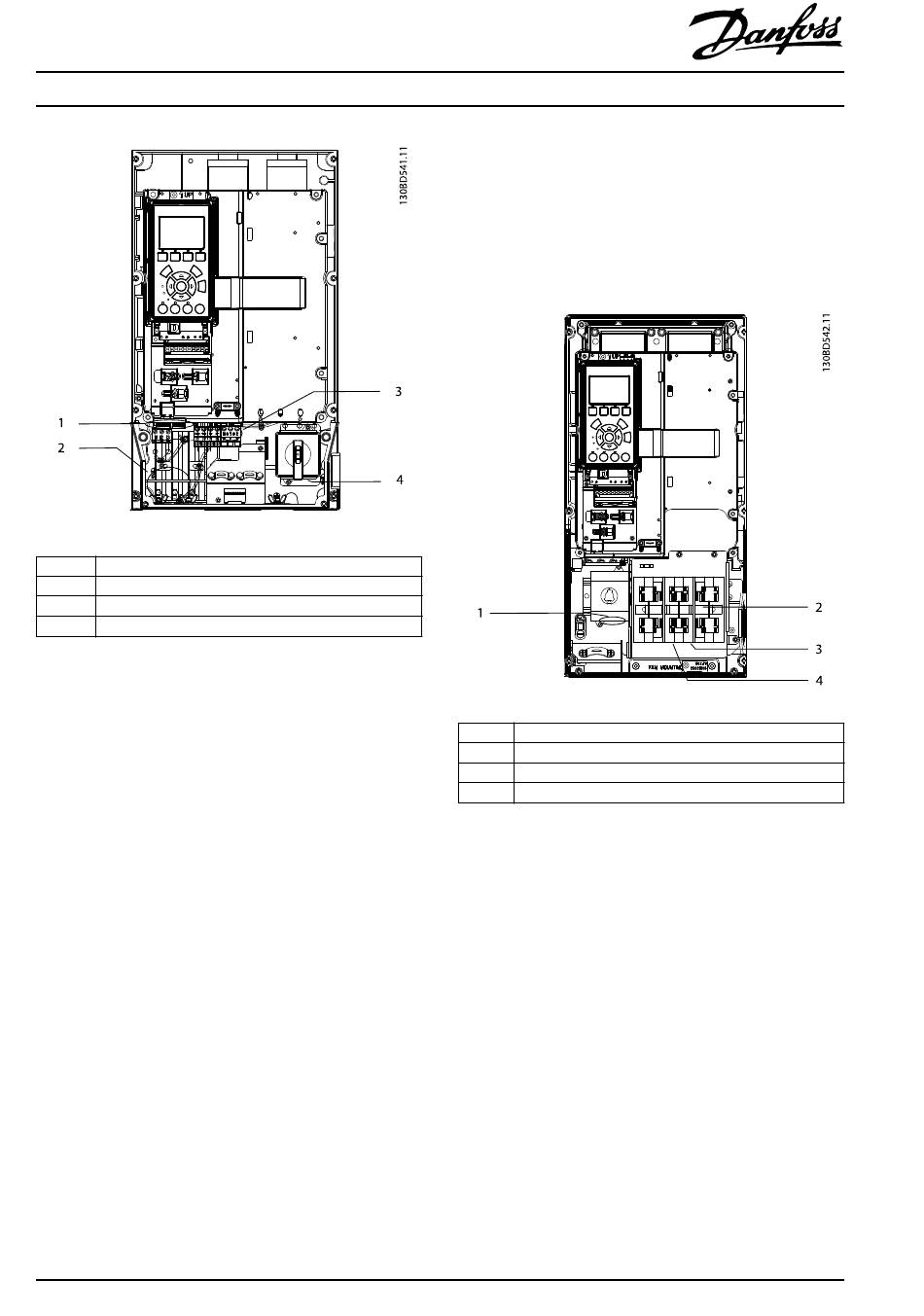

Illustration 1.2 A5 Enclosure (Single-phase and 3-phase)
2
Internal Mains Fuse Replacement for VLT
FC 102/FC 103/FC 202/FC 301/FC 302
Enclosure size B
Illustration 1.3, Illustration 1.4, and Illustration 1.5 show the
mains, motor, and relay connection locations for B1 and B2
enclosures.
Motor and relay connections are located under the fuse block
plate. To access these connectors, remove the 3 T20 screws
that are securing the fuse block plate to the drive and lift off
the plate. Do not disassemble the fuse block plate.
1
2
3
4
Illustration 1.3 B1 Enclosure (Single-phase and 3-phase)
Danfoss A/S © 10/2018 All rights reserved.
®
Drives, 0.25–90 kW (0.3–125 hp)
Input/mains connection
Fuse block plate
Motor connection (beneath the fuse block plate)
Relay connection (beneath the fuse block plate)
