4. INSTALLATION

Connections
Back view
BooXTer Uno
BooXTer Trio
FASTBIND BooXTer Uno/Duo/Trio USER MANUAL | Version 0.1 | © Maping Co 2010

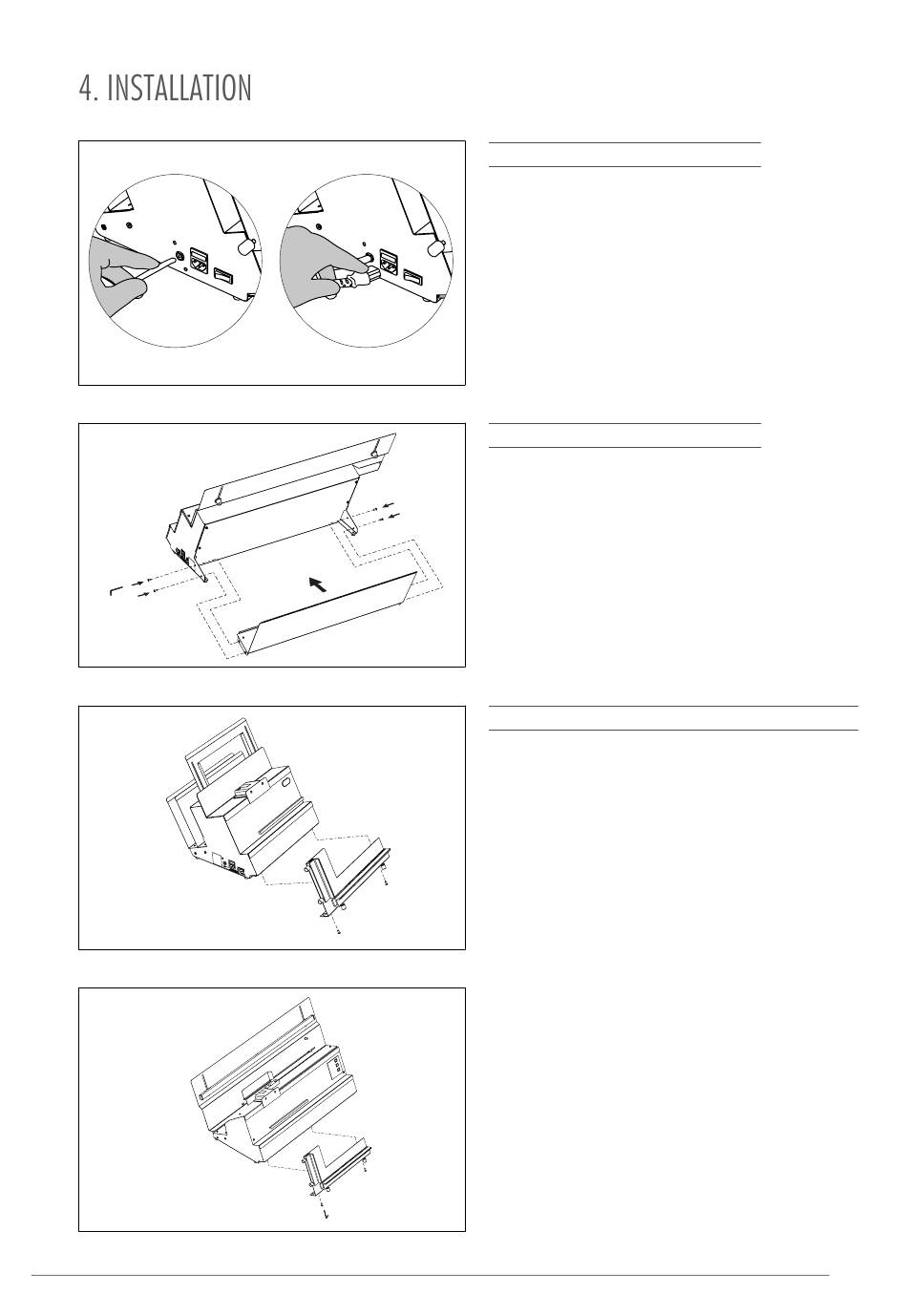

CONNECTIONS
Install the machine on a stable horizonal surface, close to
a power outlet. Before lifting, note the machine weight.
Leave enough free space on each side of the machine to
organize your work and materials
Connect foot pedal and power cord. Connect power
cord only to grounded power supply (100-240V AC,
50/60 Hz).
SUPPLY SHELF (BOOXTER TRIO ONLY)
To reduce shipping volume, the supply shelf is mounted
backwards for transportation. Remove the supply shelf ,
turn it around and reattach it before using the machine.
- open and remove 4 screws using allen key
- remove the supply shelf, any packing material
- turn the supply shelf around and fasten it with screws
COVER SETTER ACCESSORY (BOOXTER UNO AND TRIO)
Fasten cover setter with two screws using allen key.
7
