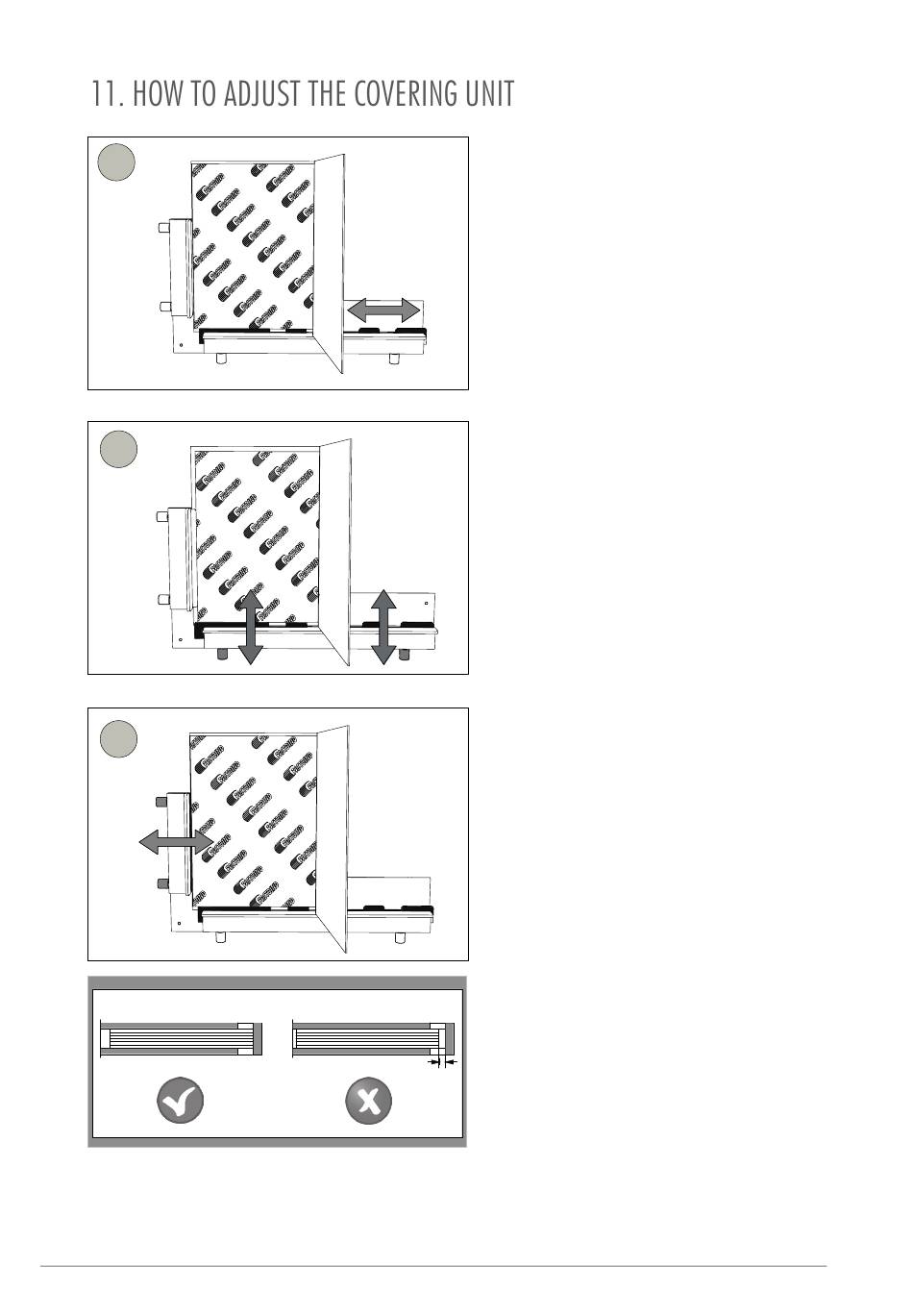

11. HOW TO ADJUST THE COVERING UNIT

1.
2.
3.
View from top
FASTBIND BooXTer Uno/Duo/Trio USER MANUAL | Version 0.1 | © Maping Co 2010
Move the adjustable bottom guide sideways so that the
spine stick of the hard cover sits in one of the slots in the
bottom guide.
Place book block on bottom guide. Use the thumb
screws to adjust the height of the bottom guide. The ad-
justment is correct when the lower and upper margins are
the same size.
Use the left side thumb screws to adjust the side margin.
Keep the front edge of the hard cover against fixed side
guide and turn thumb screws to move stapled block until
it touches the cover spine (see the detail picture).
17
