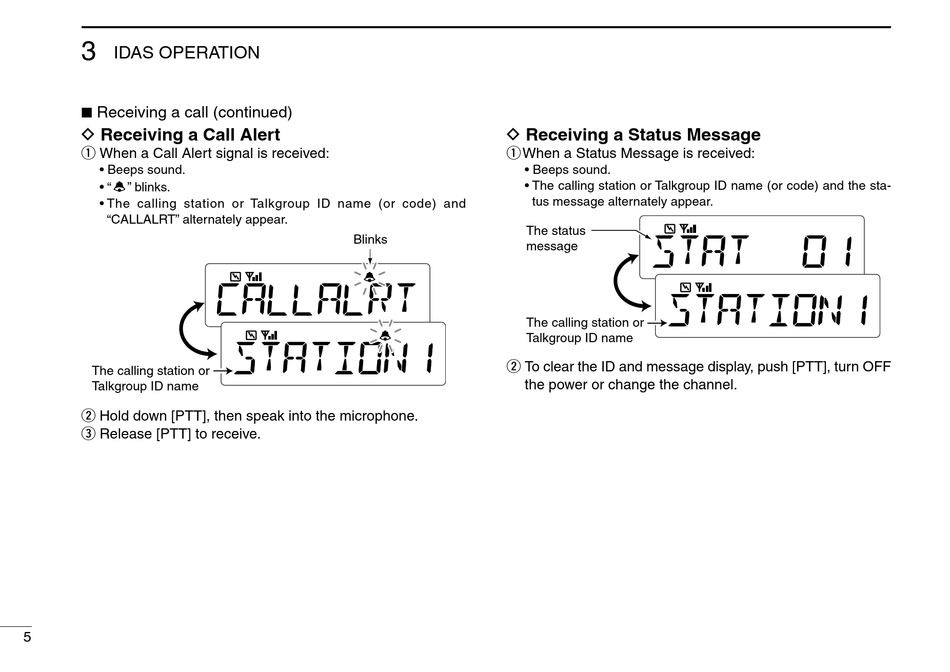

Icom IC-F5120D series Operating Manual page 8

3
IDAS OPERATION
Receiving a call (continued)
■
D Receiving a Call Alert
q When a Call Alert signal is received:
• Beeps sound.
• " " blinks.
• The calling station or Talkgroup ID name (or code) and
"CALLALRT" alternately appear.
The calling station or
Talkgroup ID name
w Hold down [PTT], then speak into the microphone.
e Release [PTT] to receive.
5
D Receiving a Status Message
q When a Status Message is received:
• Beeps sound.
• The calling station or Talkgroup ID name (or code) and the sta-
tus message alternately appear.
The status
Blinks
message
The calling station or
Talkgroup ID name
w To clear the ID and message display, push [PTT], turn OFF
the power or change the channel.
