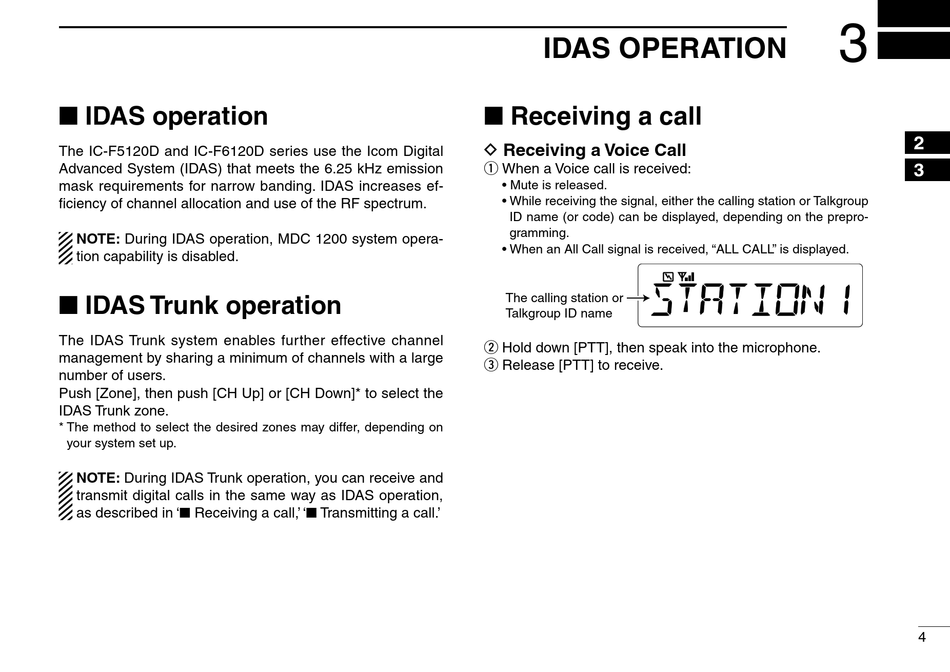

■ IDAS operation

The IC-F5120D and IC-F6120D series use the Icom Digital
Advanced System (IDAS) that meets the 6.25 kHz emission
mask requirements for narrow banding. IDAS increases ef-
ficiency of channel allocation and use of the RF spectrum.
NOTE: During IDAS operation, MDC 1200 system opera-
tion capability is disabled.

■ IDAS Trunk operation

The IDAS Trunk system enables further effective channel
management by sharing a minimum of channels with a large
number of users.
Push [Zone], then push [CH Up] or [CH Down]* to select the
IDAS Trunk zone.
* The method to select the desired zones may differ, depending on
your system set up.
NOTE: During IDAS Trunk operation, you can receive and
transmit digital calls in the same way as IDAS operation,
as described in '■ Receiving a call,' '■ Transmitting a call.'
IDAS OPERATION

■ Receiving a call

D Receiving a Voice Call
q When a Voice call is received:
• Mute is released.
• While receiving the signal, either the calling station or Talkgroup
ID name (or code) can be displayed, depending on the prepro-
gramming.
• When an All Call signal is received, "ALL CALL" is displayed.
The calling station or
Talkgroup ID name
w Hold down [PTT], then speak into the microphone.
e Release [PTT] to receive.
