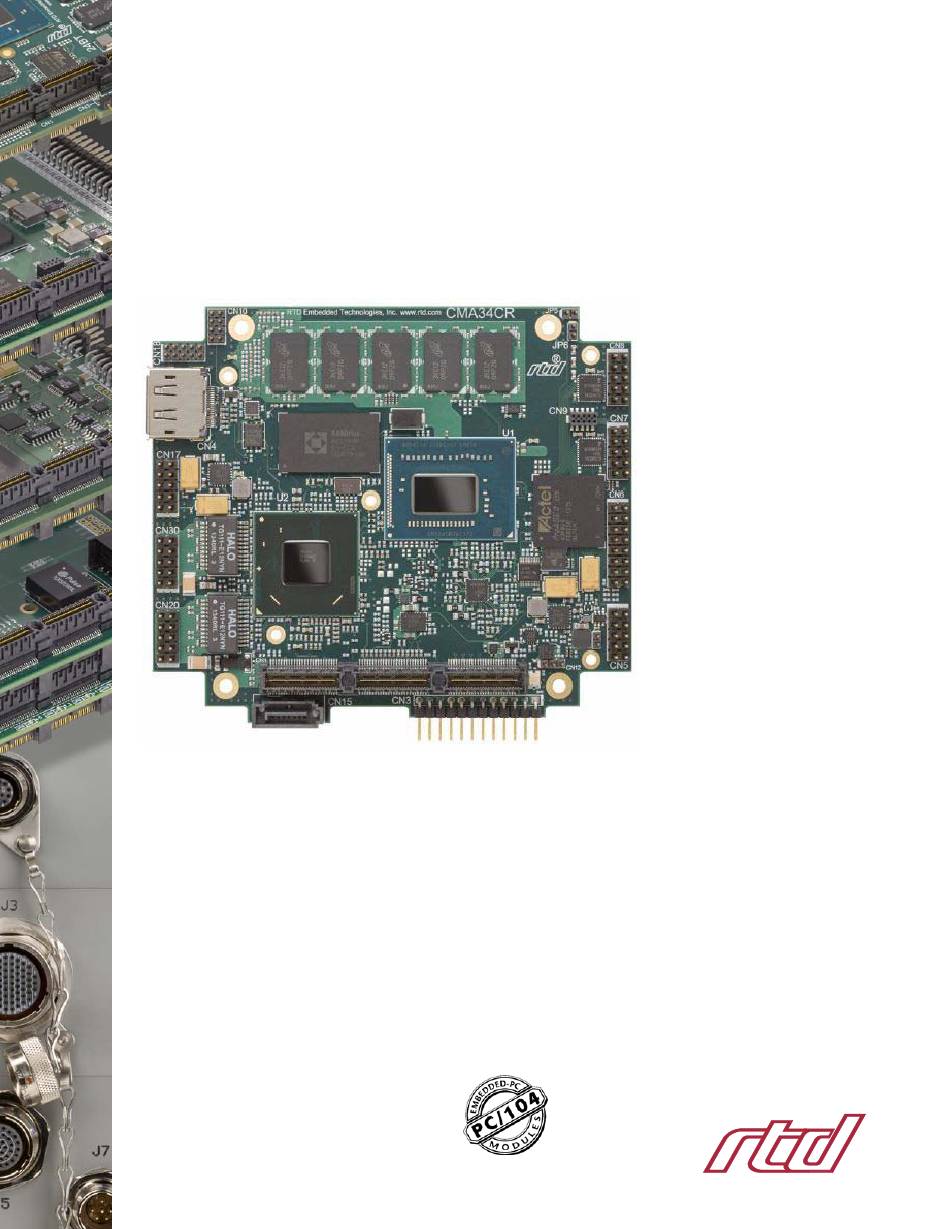

CMA34CR cpuModules™
User's Manual
BDM-610000083 Revision L
®
www.rtd.com
ISO9001 and AS9100 Certified
"Accessing the Analog World" ®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the cpuModules CMA34CR and is the answer not in the manual?

Questions and answers

Related Manuals for rtd cpuModules CMA34CR

Summary of Contents for rtd cpuModules CMA34CR

  • Page 1 CMA34CR cpuModules™ User’s Manual BDM-610000083 Revision L ® www.rtd.com ISO9001 and AS9100 Certified “Accessing the Analog World” ®...
  • Page 2 Contents and specifications within this manual are given without warranty, and are subject to change without notice. RTD Embedded Technologies, Inc. shall not be liable for errors or omissions in this manual, or for any loss, damage, or injury in connection with the use of this manual.
  • Page 3 CMA34CR cpuModules™ ® www.rtd.com ISO9001 and AS9100 Certified “Accessing the Analog World” ®...
  • Page 4 iv CMA34CR cpuModule BDM-610000083 Rev L...

  • Page 5: Table Of Contents

    Migrating to RTD’s Intel Core i7 cpuModules ........
  • Page 6 Configuring the RTD Enhanced BIOS ........
  • Page 7 Thermal Management ................. Thermal Monitor .
  • Page 8 Interrupt Programming ................Serial Port Programming .

  • Page 9: Chapter 1 Introduction

    Troubleshooting Offers advice on debugging problems with your system Appendix C IDAN™ Dimensions and Pinout Provides connector pinouts for the cpuModule installed in an RTD Intelligent Data Acquisition Node (IDAN) frame Appendix D Additional Information Lists sources and websites to support the cpuModule installation and configuration...

  • Page 10: Cma34Cr Cpumodules

    RS-232/422/485 COM ports and Advanced Digital I/O (aDIO). RTD has gone the extra mile to include additional advanced features for maximum flexibility. These include an onboard SATA surface-mount flash drive with a standard SATA interface. An Advanced Watchdog Timer is provided that can generate an interrupt or reset when the timer expires.

  • Page 11: Adio

    The cpuModule uses the RTD Enhanced BIOS. Drivers in the BIOS allow booting from hard disk, UEFI shell, or PXE Ethernet, thus enabling the system to be used with traditional disk drives or nonmechanical drives. Boot from USB devices and network are also supported.

  • Page 12: Ordering Information

    PC/104 systems. CMA34CR Model Options The basic cpuModule model options are shown below. Refer to the RTD website (www.rtd.com) for more detailed ordering information and any new variations that may be available. Each CPU has the option to go up to 8GB DDR3-SDRAM, and up to a 32 GByte onboard SATA flash drive.

  • Page 13: Cable Kits And Accessories

    Cable Kits and Accessories For maximum flexibility, RTD does not provide cables with the cpuModule. You may wish to purchase the CMA34CR cpuModule cable kit (P/N XK-CM113), which contains: • Utility Port 2.0 multi-function cable (2x USB 2.0 ports, battery, reset button, power button, speaker) •...

  • Page 14: Board Features

    Board Features • Intel Core i7 Processor: Part Number Cores Core Frequency Intel Smart Cache Intel Part Number CMA34CRS1500 1.5 GHz 1 MByte 927UE CMA34CRD1700 1.7 GHz 4 MByte 3517UE CMA34CRQ2100 Four 2.1 GHz 6 MByte 3612UE – Enhanced Intel SpeedStep Technology –...

  • Page 15: I/O

    – ACPI 3.0 Compliant – Supported power down modes: S3 (Suspend to RAM), S4 (Hibernate), and S5 (Soft-Off) – ACPI processor C-States – Wake events include: • USB event (device insertion, keyboard keystroke, etc.) • Real Time Clock alarm or time-out •...

  • Page 16: Rtd Enhanced Bios

    User-configurable using built-in Setup program • Flash-based CMOS Setup - No battery required to store CMOS settings • Supports boot from SATA, USB, or Ethernet (PXE) • UEFI (Unified Extensible Firmware Interface) Shell • Special RTD Reliability Enhancements 8 CMA34CR cpuModule BDM-610000083 Rev L...

  • Page 17: Block Diagram

    Block Diagram The next figure shows a simplified block diagram of the CMA34CR cpuModule. Figure 2 CMA34CR cpuModule Simplified Block Diagram BDM-610000083 Rev L Chapter 1: Introduction 9...

  • Page 18: Specifications

    Specifications Physical Characteristics Basic dimensions and the weight of the CMA34CR are listed below. For a more detailed dimensional drawing, refer to the Physical Dimensions section on page 75. • Dimensions – Board Size • Length (L): 95.885mm L (3.775") •...
  • Page 19 Table 5 Max Power Consumption Part Number Power Consumption CMA34CRS1500HR-8192 17.0 W CMA34CRD1700HR-8192 31.9 W CMA34CRQ2100HR-8192 49.2 W Table 6 Power Consumption (1.5 GHz, Single Core, 8 GBytes) Idle Single-Threaded Multi-Threaded CPU & Graphics ACPI ACPI Application Application Intensive S4/S5 Application +5V Current Draw 1.7 A...
  • Page 20 Note The measurements listed above are intended to represent common usage scenarios. The cpuModule’ s power consumption is heavily influenced by the running software and system activity. 12 CMA34CR cpuModule BDM-610000083 Rev L...

  • Page 21: Operating Conditions

    2. With supplied heat sink solution. Depending on the CPU usage, performance may degrade as the ambient temperature approaches the maximum. Contact RTD Tech Support for more information. 3. Less than 10% reduction in Aggregate Processor Performance at temperatures from +70 to +85 as measured by Sandra 2013 SP4.

  • Page 22: Electrical Characteristics

    Electrical Characteristics The table below lists the Electrical Characteristics of the CMA34CR. Operating outside of these parameters may cause permanent damage to the cpuModule. Table 11 Electrical Characteristics Symbol Parameter Test Condition Min. Max. USB Ports Overcurrent Limit Each port 0.5 A 5.0 A SVGA Port...
  • Page 23 Table 11 Electrical Characteristics Symbol Parameter Test Condition Min. Max. Update Interval — Utility Port 2.0 Connector (CN5) Input RTC Voltage — 2.5V 3.6 V RTC Battery Current — < 4 uA Utility Supply — 500 mA UTILvcc Current 1. Only required to maintain date and time when power is completely removed from the system. Not required for board operation.

  • Page 24: Migrating To Rtd's Intel Core I7 Cpumodules

    Complete information about the connectors on the CMA34CR can be found in Chapter 3, Connecting the cpuModule. New I/O Connectors The CMA34CR cpuModule introduces a new I/O connector that was not present on previous RTD cpuModules: • DisplayPort (CN4) –...

  • Page 25: Software Differences

    Previous generations of RTD cpuModules contained a Fail-safe Boot ROM image, which permitted the cpuModule to boot to a DOS prompt even when no disk drives were connected to the system. The RTD Intel Core i7 cpuModules provide a similar prompt, called the Unified Extensible Firmware Interface (UEFI) Shell, which provides an environment to execute simple commands.

  • Page 26: Contact Information

    Contact Information RTD Embedded Technologies, Inc. 103 Innovation Blvd. State College, PA 16803-0906 Phone: +1-814-234-8087 Fax: +1-814-234-5218 E-mail: sales@rtd.com techsupport@rtd.com Internet: http://www.rtd.com 18 CMA34CR cpuModule BDM-610000083 Rev L...

  • Page 27: Chapter 2 Getting Started

    Chapter 2 Getting Started For many users, the factory configuration of the CMA34CR cpuModule can be used to get a PC/104 system operational. You can get your system up and running quickly by following the simple steps described in this chapter, which are: Before connecting the cpuModule, the user must be properly grounded to prevent electrostatic discharge (ESD).

  • Page 28: Connector Locations

    Connector Locations Figure 3 shows the connectors of the CMA34CR cpuModule. Factory Factory (CN10) (CN9) SVGA Video (CN18) COM2&4 (CN8) DisplayPort (CN4) COM1&3 (CN7) USB 2.0 (CN17) aDIO Ethernet (CN6) (CN30) Utility Port 2.0 Ethernet (CN5) (CN20) SATA Battery (CN15) (CN13) PCIe/104 Bus Auxiliary Power...
  • Page 29 3M 89110-0001 WARNING If you connect power incorrectly, the module will almost certainly be damaged or destroyed. Such damage is not covered by the RTD warranty! Please verify connections to the module before applying power. Power is normally supplied to the cpuModule through the top or bottom PCIe connectors (CN1 or CN2). If you are placing the cpuModule onto a stack that has a PCIe/104 power supply, you do not need to make additional connections to supply power.

  • Page 30: Selecting The Stack Order For The Cma34Cr

    Selecting the Stack Order for the CMA34CR There are several things to consider when selecting the order of boards in the stack. Before selecting the order, be sure to determine which bus connector on each board is the “Active” bus. Typically, if a peripheral module has both PCIe and PCI bus connectors, only the PCIe is active and the PCI is pass-through.

  • Page 31: Stack Example

    Stack Example The figure below shows an example of a complete system stack. Most systems will be a subset of this example. This example stack may be further expanded with PCIe to PCIe bridges, or a PCIe to PCI bridge. PCIe x1 Peripheral PCIe PCIe x1 Peripheral...

  • Page 32: Connecting To The Stack

    Connecting to the Stack The bus connectors of the cpuModule are simply plugged onto a PC/104 stack to connect to other devices. Follow the procedure below to ensure that stacking of the modules does not damage connectors or electronics. WARNING Do not force the module onto the stack! Wiggling the module or applying too much pressure may damage it.

  • Page 33: Connecting To The Utility Port 2.0

    To use these interfaces, you must connect to the Utility Port 2.0 connector (CN5). The Utility Port 2.0 cable from the RTD cable kit provides a small speaker, two USB 2.0 ports for a keyboard and mouse, a push-button for resetting the system, a soft-power button, and a lithium battery to provide backup power for the real time clock.
  • Page 34 26 CMA34CR cpuModule BDM-610000083 Rev L...

  • Page 35: Chapter 3 Connecting The Cpumodule

    Chapter 3 Connecting the cpuModule This chapter provides information on all CMA34CR cpuModule connectors. Proper Grounding Techniques—page 28 Connector Locations—page 28 Auxiliary Power (CN3)—page 30 Utility Port 2.0 Connector (CN5)—page 31 SVGA Video Connector (CN18)—page 33 DisplayPort Connector (CN4)—page 34 SATA Data Connector (CN15)—page 36 Serial Port 1 (CN7) and Serial Port 2 (CN8)—page 37 Advanced Digital I/O (aDIO™) Port (CN6)—page 44...

  • Page 36: Proper Grounding Techniques

    Proper Grounding Techniques Before removing the CMA34CR from its static bag, proper grounding techniques must be used to prevent electrostatic discharge (ESD) damage to the cpuModule. Common grounding procedures include an anti-static mat on a workbench, which may connect to an anti-static wrist strap (also known as an ESD wrist strap) on the wrist of the technician or engineer.
  • Page 37 Table 13 CMA34CR Basic Connectors Connector Function Size and Pitch Mating Connector PCIe/104 Type 2 Bus (Top) 156-pin, 0.635mm Samtec ASP-129646-03 PCIe/104 Type 2 Bus (Bottom) 156-pin, 0.635mm Samtec ASP-129637-03 Auxiliary Power 1x12, 0.1” FCI 65039-025LF DisplayPort Molex P/N Series Molex P/N Series 47272-xxxx 68783-xxxx...

  • Page 38: Auxiliary Power (Cn3)

    Connector and verifying that it meets the input voltage specifications. The voltage at the connector should be checked with an oscilloscope while the system is operational. WARNING This 12-pin power connector is not compatible with previous generations of RTD cpuModules.

  • Page 39: Utility Port 2.0 Connector (Cn5)

    WARNING The pinout of the Utility Port 2.0 connector is not compatible with previous generations of RTD cpuModules. Attaching a legacy Utility Port harness to the Utility Port 2.0 connector may damage or destroy the cpuModule.

  • Page 40: Speaker

    Speaker A speaker output is available on pins 1 and 2 of the Utility Port 2.0 connector. These outputs are controlled by a transistor to supply 0.1 W of power to an external speaker. The external speaker should have 8 Ohm impedance and be connected between pins 1 and 2.

  • Page 41: Svga Video Connector (Cn18)

    SVGA Video Connector (CN18) Table 16 provides the pinout of the video connector. Table 16 SVGA Video Connector (CN18) Signal Function In/Out VSYNC Vertical Sync HSYNC Horizontal Sync DDCSCL Monitor Communications Clock Red Analog Output DDCSDA Monitor Communications Data bidirectional GREEN Green Analog Output +5 V...

  • Page 42: Displayport Connector (Cn4)

    DisplayPort Connector (CN4) The DisplayPort connector on the CMA34CR cpuModule is a standard PC DisplayPort connector complete with latch holes to provide a rugged connecting solution for latching DisplayPort cables. The DisplayPort supports all mandatory features of the VESA DisplayPort Standard (Version 1.1a), permits a resolution of 2560 x 1600, and supports audio out the connector.
  • Page 43 Facing the connector pins of the DisplayPort connector (CN4), the pinout is: AUX- AUX+ CFG1 LN2- LN2+ LN0- LN0+ CFG2 LN3- LN3+ LN1- LN1+ BDM-610000083 Rev L Chapter 3: Connecting the cpuModule 35...

  • Page 44: Sata Data Connector (Cn15)

    SATA Data Connector (CN15) SATA Data Connector (CN15) provides a SATA host interface connection on a vertical surface mount SATA data connector. For more information on configuring the SATA ports on the CMA34CR, refer to on page 61. 36 CMA34CR cpuModule BDM-610000083 Rev L...

  • Page 45: Serial Port 1 (Cn7) And Serial Port 2 (Cn8)

    FIFO is not empty. There is no indication of when the FIFO is full, so software must keep track of how many bytes are written to the FIFO. In the BIOS you can navigate to Advanced -> RTD Advanced Options -> RTD Serial Port control and change the “LSR-THRE Optional Mode”...

  • Page 46: Serial Port (Default)

    RS-232 Serial Port (Default) The default serial port mode is full-duplex RS-232. With this mode enabled, the serial port connectors must be connected to RS-232 compatible devices. Table 19 provides the serial port connector pinout and shows how to connect to an external DB-25 or DB-9 compatible serial connector. Table 19 Serial Port in RS-232 Mode Signal Function...

  • Page 47: Rs-422 Or Rs-485 Serial Port

    Facing the serial port’s connector pins, the pinout is: RS-422 or RS-485 Serial Port You may use the BIOS setup utility to configure the serial ports as RS-422 or RS-485. In this case, you must connect the serial port to an RS-422 or RS-485 compatible device. When using RS-422 mode, you can use the serial ports in either half-duplex (two-wire) or full-duplex (four-wire) configurations.

  • Page 48: Mode Pinout

    Facing the serial port connector, the pinout is: RXD- RXD+ TXD+ TXD- Rsvd Rsvd Rsvd Rsvd WARNING The pinout of the COM ports in RS-422 mode is not compatible with previous generations of RTD cpuModules. 40 CMA34CR cpuModule BDM-610000083 Rev L...

  • Page 49: Mode Pinout

    Rsvd WARNING The pinout of the COM ports in RS-485 mode is not compatible with previous generations of RTD cpuModules. Note When using the serial port in RS-485 mode, the serial transmitters are enabled and disabled under software control. The transmitters are enabled by manipulating the Request To Send (RTS*) signal of the serial port controller.

  • Page 50: Dual Serial Port Modes

    1. Dual RS-485 mode with echo uses dual RS-422 mode pinout WARNING The dual serial port mode pinouts of the COM ports are not compatible with previous generations of RTD cpuModules. Note The cpuModule has 120 Ohm termination resistors. Termination is usually necessary on all RS-422 receivers and at the ends of the RS-485 bus.
  • Page 51 Table 26 COM A (RS-422) and COM B (RS-422) Signal Function In/Out DB-9 TXD1- COM A- Transmit Data(-) TXD2- COM B- Transmit Data (-) TXD1+ COM A - Transmit Data (+) TXD2+ COM B - Transmit Data (+) RXD1+ COM A - Receive Data (+) RXD2+ COM B - Receive Data (+) RXD1-...

  • Page 52: Advanced Digital I/O (Adio™) Port (Cn6)

    Advanced Digital I/O (aDIO™) Port (CN6) Connector CN6 is configured as an aDIO port. aDIO is 12 digital bits configured as 8-bit programmable and 4-bit port programmable I/O, providing any combination of inputs and outputs. Match, event, and strobe interrupt modes mean no more wasting valuable processor time polling digital inputs.

  • Page 53: Usb 2.0 Connector (Cn17)

    DATA2+ DATA2– VCC2 Note For proper operation at USB 2.0 speeds, be sure to use a cable that is rated for USB 2.0, such as the cable kit supplied by RTD. BDM-610000083 Rev L Chapter 3: Connecting the cpuModule 45...

  • Page 54: Ethernet (10/100/1000Base-T And -Tx) Connectors (Cn20 And Cn30)

    Ethernet (10/100/1000Base-T and -TX) Connectors (CN20 and CN30) This connector provides a 10/100/1000Base-T Ethernet connection. Table 30 provides the pinout of the Ethernet connector. For 1000Base-T, all four pairs are used for transmit and receive. To use the onboard 10/100/1000 Ethernet controller, Ethernet must be enabled in the BIOS. When enabled, the multi-color LED will blink to indicate an Ethernet connection.

  • Page 55: Pcie/104 Type 2 Bus (Cn1 - Top And Cn2 - Bottom)

    PCIe/104 Type 2 Bus (CN1 - Top and CN2 - Bottom) Connectors CN1 and CN2 carry the signals of the PCIe/104 PCIe bus. These signals match definitions found in the PCI/104-Express & PCIe/104 Specification Version 2.10 from the PC/104 Embedded Consortium. Table 31 lists the pinouts of the PC/104-Express bus connector.
  • Page 56 Table 31 PCIe/104 Type 2 Bus Signal Assignments (Top View) Signal Signal STK0 / WAKE# STK1 PEx4_1T(0)p PEx4_0T(0)p PEx4_1T(0)n PEx4_0T(0)n PEx4_1T(1)p PEx4_0T(1)p PEx4_1T(1)n PEx4_0T(1)n PEx4_1T(2)p PEx4_0T(2)p PEx4_1T(2)n PEx4_0T(2)n PEx4_1T(3)p PEx4_0T(3)p PEx4_1T(3)n PEx4_0T(3)n SATA_1Tp SATA_0Tp SATA_1Tn SATA_0Tn SSTX1p SSTX0p SSTX1n SSTX0n Reserved Reserved Reserved...

  • Page 57: Pcie/104 Type 2 Compatibility

    Table 31 PCIe/104 Type 2 Bus Signal Assignments (Top View) Signal Signal STK2 Reserved PEx4_1R(0)p PEx4_0R(0)p PEx4_1R(0)n PEx4_0R(0)n PEx4_1R(1)p PEx4_0R(1)p PEx4_1R(1)n PEx4_0R(1)n PEx4_1R(2)p PEx4_0R(2)p PEx4_1R(2)n PEx4_0R(2)n PEx4_1R(3)p PEx4_0R(3)p PEx4_1R(3)n PEx4_0R(3)n SATA_1Rp SATA_0Rp SATA_1Rn SATA_0Rn SSRX1p SSRX0p SSRX1n SSRX0n Reserved Reserved Reserved Reserved Reserved...

  • Page 58: Usb 3.0

    USB 3.0 This module supports USB 3.0, or SuperSpeed USB, on the CN1 and CN2 bus connectors. There are two USB 3.0 links available on the top bus connector (CN1) and two links available on the bottom bus connector (CN2). The links are provided by the Intel Chipset.

  • Page 59: Optional Rtc Battery Input (Cn13)

    Optional RTC Battery Input (CN13) The optional RTC battery input is the connection for an external backup battery. This battery is used by the cpuModule when system power is removed in order to preserve the date and time of the real time clock. Connecting a battery is only required to maintain time when power is completely removed from the cpuModule.
  • Page 60 52 CMA34CR cpuModule BDM-610000083 Rev L...

  • Page 61: Chapter 4 Using The Cpumodule

    This chapter provides information for users who wish to develop their own applications programs for the CMA34CR cpuModule. This chapter includes information on the following topics: The RTD Enhanced BIOS —page 54 Onboard PCI/PCIe Devices—page 56 Advanced Digital I/O Ports (aDIO™)—page 57 SATA Controller Configuration—page 62...

  • Page 62: The Rtd Enhanced Bios

    The RTD Enhanced BIOS The RTD Enhanced BIOS is software that interfaces hardware-specific features of the cpuModule to an operating system (OS). Physically, the BIOS software is stored in a Flash EPROM on the cpuModule. Functions of the BIOS are divided into two parts.

  • Page 63: Field Selection

    WARNING Incorrect modifications to the BIOS can cause your system to break. If you are unsure of any changes made to the BIOS there is a Load RTD Defaults option under the Exit tab in the SCU. This option restores the BIOS to the default factory settings.

  • Page 64: Onboard Pci/Pcie Devices

    Onboard PCI/PCIe Devices The CMA34CR cpuModule has several onboard PCI/PCIe devices, all of which are listed in the table below. This table shows a typical configuration, and the actual devices may change based on BIOS settings. Table 37 Onboard PCI Devices Device ID Vendor ID Description...

  • Page 65: Advanced Digital I/O Ports (Adio™)

    This board supports 12 bits of TTL/CMOS compatible digital I/O (TTL signaling). These I/O lines are grouped into two ports, Port 0 and Port 1. Port 0 is bit programmable; Port 1 is byte programmable. Port 0 supports RTD’s Advanced Digital Interrupt modes. The three modes are strobe, match and event. Strobe mode generates an interrupt and latches Port 0 when the strobe input transitions from low to high.

  • Page 66: Digital I/O Register Set

    Digital I/O Register Set Table 38 Port 0 Data I/O Address EC0h P0.7 P0.6 P0.5 P0.4 P0.3 P0.2 P0.1 P0.0 Port 0 Data register is a read/write bit direction programmable register. A particular bit can be set to input or output.
  • Page 67 Table 41 DIO-Control I/O Address EC3h—Read Access Strobe 1 Status Strobe 0 Status 0 = no strobe 0 = no strobe Multi-Function 1 = strobe Digital IRQ Mode 1 = strobe Register Select 00 = Disabled 00 = clear mode 01 = strobe Mode Digital IRQ Status Port 1 Direction...

  • Page 68: Port 1 Data Register Is A Read/Write Byte Direction

    Advanced, I/O Devices, aDIO Configuration, aDIO Interrupt. The Digital I/O can use interrupts 3, 5, 6, 10, and 11. To configure the aDIO interrupt, navigate to the BIOS Setup option, the “Advanced”, “RTD aDIO”, and “aDIO Interrupt” menu options. The BIOS will automatically reserve the selected interrupt so that is it not assigned to PCI devices.

  • Page 69: Strobe Mode

    Figure 6 aDIO Match Mode Strobe Mode Another interrupt mode supported by aDIO is Strobe mode. This allows the strobe pin of the DIO connector to trigger an interrupt. A low to high transition on the strobe pin will cause an interrupt request. The request will remain high until the Clear Register is read from.

  • Page 70: Sata Controller Configuration

    SATA Controller Configuration The CMA34CR has a combined total of six SATA links. Four SATA links reside on the top and bottom PCIe/104 Type 2 connectors (CN1 and CN2). A fifth is available on a standard SATA data connector (CN15), on the South side of the board. The sixth SATA link connects to the onboard SATA storage.
  • Page 71 CMOS memory. In a typical desktop PC, the CMOS memory is used by the BIOS to store user settings. This RTD cpuModule uses onboard flash to store user BIOS settings. Except for a few well-known CMOS locations which are automatically populated for legacy compatibility, the CMOS memory is largely unused and should be considered “Reserved”.

  • Page 72: Watchdog Timer Control

    The Advanced Watchdog Timer has a Setup Register and a Runtime Register. The Setup Register is set by the BIOS, and can be adjusted by entering the BIOS Setup Utility, and going to “Advanced”, “RTD Advanced Options”, “RTD Miscellaneous Feature Control”. The Setup Register may also be read to determine if the Watchdog is enabled, and the interrupt and base address that it is using.

  • Page 73: Thermal Management

    Thermal Management The cpuModule has several thermal features which can be used to monitor and control the board’s temperature when extreme operating conditions are prevalent. Thermal Monitor The Thermal Monitor is a feature on the CMA34CR that automatically throttles the CPU when the CPU exceeds its thermal limit.

  • Page 74: Power Management

    Power Management The CMA34CR cpuModule supports various powering mechanisms which allow the cpuModule to monitor power consumption and temperature, and achieve minimal power consumption states. These unique features include thermal monitoring and thermal throttling, as well as low power modes including ACPI configurations. Various wake options are also available to resume normal system power.

  • Page 75: At Vs. Atx Power Supplies

    Table 47 Supported ACPI Resume/Wake Mechanisms Wake from USB — — Wake from RTC Alarm / Timeout — — Wake from WAKE# (CN1 & CN2, CN20 &CN30) — — Power Button Input (CN5) AT vs. ATX Power Supplies Both AT and ATX power supplies may be used with the CMA34CR cpuModule, however AT power supplies do not provide any standby power to the cpuModule.

  • Page 76: Multi-Color Led

    1. If power is applied to the cpuModule while jumper JP5 is installed, the LED will be red. This does not indicate that the board is in reset 2. Unlike previous generations of RTD cpuModules, the CMA34CR requires both +5V and +12V to be present to come out of reset. For more information, refer to: Auxiliary Power (CN3)— page 30 3.

  • Page 77: Reset Status Register

    Reset Status Register The cpuModule has several different signals on board which can cause a system reset. If a reset occurs, the reset status register can be used to see which reset or resets have been asserted on the cpuModule. The user has the ability to see which resets have been asserted.

  • Page 78: Trusted Platform Module

    Trusted Platform Module The CMA34CR cpuModule includes a Trusted Platform Module (TPM) that is fully compliant to the Trusted Computing Group (TCG) TPM version 1.2 specifiction. The TPM is a controller which uses hardware-based cryptography to securely store paswords, certificates, and encryption keys for authenticating the cpuModule.

  • Page 79: Features And Settings That Can Affect Boot Time

    ROMs. During POST, the BIOS executes the card's extension code. This extension code is third-party code, which is beyond RTD's control. The BIOS extension will most likely increase the boot time. Exactly how much it increases boot time will depend on the particular card and firmware version.

  • Page 80: System Recovery

    It is also a good starting point when making BIOS changes. After restoring defaults, the BIOS settings should be reviewed and modified as needed. The default BIOS can be restored either by using Reset Button Recovery, or the “Load RTD Defaults” option in the BIOS.

  • Page 81: Appendix A Hardware Reference

    Appendix A Hardware Reference This appendix provides information on CMA34CR cpuModule hardware, including: Jumper Settings and Locations—page 74 Physical Dimensions—page 75 BDM-610000083 Rev L Appendix A: Hardware Reference 73...

  • Page 82: Jumper Settings And Locations

    Used to load the default BIOS settings. Install this jumper and boot the open stack to load the RTD default BIOS settings, remove the jumper once the system has booted. Used to disable the Bus Stacking Error detection. See PCIe/104 Type 2 open Compatibility on page 49.

  • Page 83: Physical Dimensions

    Physical Dimensions Figure 8 shows the mechanical dimensions of the CMA34CR cpuModule. Figure 8 CMA34CR Physical Dimensions (±0.005 inches) BDM-610000083 Rev L Appendix A: Hardware Reference 75...
  • Page 84 76 CMA34CR cpuModule BDM-610000083 Rev L...

  • Page 85: Appendix B Troubleshooting

    Appendix B Troubleshooting Many problems you may encounter with operation of your CMA34CR cpuModule are due to common errors. This appendix includes the following sections to help you get your system operating properly. Common Problems and Solutions —page 78 Troubleshooting a PC/104 System—page 79 How to Obtain Technical Support—page 80 BDM-610000083 Rev L Appendix B: Troubleshooting 77...

  • Page 86: Common Problems And Solutions

    Table 53 lists some of the common problems you may encounter while using your CMA34CR cpuModule, and suggests possible solutions. If you are having problems with your cpuModule, review this table before contacting RTD Technical Support. Table 53 Troubleshooting Problem...

  • Page 87: Troubleshooting A Pc/104 System

    Troubleshooting a PC/104 System If you have reviewed the preceding table and still cannot isolate the problem with your CMA34CR cpuModule, please try the following troubleshooting steps. Even if the resulting information does not help you find the problem, it will be very helpful if you need to contact technical support. Simplify the system.

  • Page 88: How To Obtain Technical Support

    List of settings from cpuModule Setup program • Printout of autoexec.bat and config.sys files (if applicable) • Description of problem • Circumstances under which problem occurs Then contact RTD Technical Support: Phone: 814-234-8087 Fax: 814-234-5218 E-mail: techsupport@rtd.com 80 CMA34CR cpuModule BDM-610000083 Rev L...

  • Page 89: Appendix Cidan™ Dimensions And Pinout

    RTD modules installed in IDAN frames are called building blocks. IDAN building blocks maintain the simple but rugged stacking concept of PC/PCI-104 and PCIe/104. Each RTD module is mounted in its own IDAN frame and all I/O connections are brought to the walls of each frame using standard PC connectors.

  • Page 90: Idan Dimensions And Connectors

    IDAN Dimensions and Connectors 9-pin D (male) 15-pin high-density D (female) module P/N: Adam Tech DE09PD module P/N: Adam Tech HDT15SD mating P/N: Adam Tech DE09SD mating P/N: Adam Tech HDT15PD CN18 25-pin D (female) module P/N: Adam Tech DB25SD mating P/N: Adam Tech DB25PD USB Connector module P/N: Series “A”...
  • Page 91 CN18 CN17 CN19 CN30 CN20 Figure 10 IDAN-CMA34CR Connector Pin Orientation BDM-610000083 Rev L Appendix C: IDAN™ Dimensions and Pinout 83...
  • Page 92 Figure 11 IDAN-CMA34CR Frame Dimensions Weight of the IDAN-CMA34CR with no drive installed is 1.96 lbs. (0.89 kg) 84 CMA34CR cpuModule BDM-610000083 Rev L...

  • Page 93: Idan Contents

    IDAN Contents The IDAN-CMA34CR contains both a CMA34CR cpuModule and a SATA34106 carrier for a 2.5” SATA drive. Also inside the IDAN-CMA34CR unit is a CMOS battery which is connected to the battery input connection of the cpuModule’s Utility Port 2.0 connector. The frame of the IDAN-CMA34CR brings out the cpuModule’s multi-color LED as well as the cpuModule’s reset button.

  • Page 94: External I/O Connections

    External I/O Connections Table 54 COM1/COM2 (Single Port Mode)— 9-Pin D Connector (male) CPU Pin IDAN Pin Single Single Single (DB-9) RS-232 RS-422 RS-485 TXD– D– — — TXD+ — — RXD+ — — — RXD– — — — Table 55 COM1/COM2 (Dual Port Mode)— 9-Pin D Connector (male) CPU Pin IDAN Pin Dual...
  • Page 95 Table 56 aDIO — 25-Pin D Connector (female) IDAN Pin # aDIO Port CPU Pin # P0-0 P0-2 P0-4 P0-6 Strobe 0 P1-0 P1-2 reserved reserved reserved Power Button P0-1 P0-3 P0-5 P0-7 Strobe 1 P1-1 P1-3 +5 V reserved reserved Reset Button...
  • Page 96 Table 57 SVGA — 15-Pin High Density D Connector (female) IDAN Pin # Signal Function CPU Pin # Red Analog Output Green Green Analog Output Blue Blue Analog Output Reserved Reserved — Ground Ground Ground Ground +5 V + 5 Volts Ground Reserved Reserved...
  • Page 97 Table 58 DisplayPort Connector Signal Standard Function Dual-mode (DP++) Function In/Out (DVI / HDMI mode) LN0+ Main Link, Lane 0 (positive) TMDS Channel 2 (positive) Ground Ground LN0- Main Link, Lane 0 (negative) TMDS Channel 2 (negative) LN1+ Main Link, Lane 1 (positive) TMDS Channel 1 (positive) Ground Ground...
  • Page 98 Table 59 USB — 9-Pin D Connector (male) IDAN Pin # Signal Function Mode VCC1 +5 V to USB1 output Data USB1– USB1 Data– input/output Data USB1+ USB1 Data+ input/output Ground — Ground — VCC2 +5 V to USB2 output Data USB2–...

  • Page 99: Appendix D Additional Information
