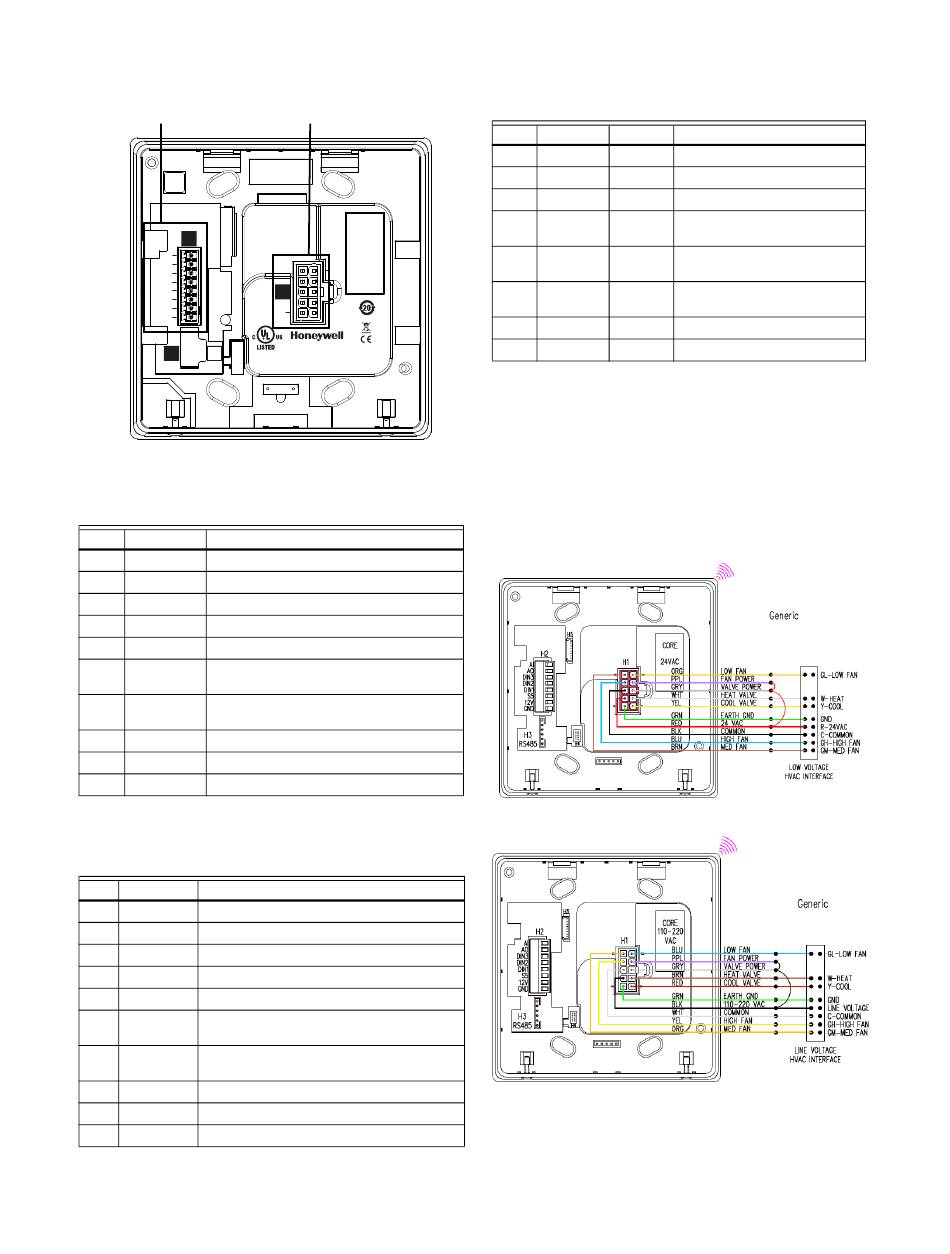

INNCOM E7 THERMOSTAT INSTALLATION INSTRUCTIONS
WIRING
H2 - Low Voltage Signals
H2
AI
AO
DIN3
DIN2
H1
DIN1
S5bus
12VDC
GND
H3
RS485
Table 1. H1 Red Connector: 24 VAC Power/HVAC Sig-
nals
Pin
Color
1
Green
2
Red
3
Black
4
Blue
5
Brown
6
Yellow
7
White
8
Grey
9
Violet
10
Orange
Table 2. H1 White Connector: 110-220 VAC Power/
HVAC Signals
Pin
Color
1
Green
2
Black
3
White
4
Yellow
5
Orange
6
Red
7
Brown
8
Grey
9
Violet
10
Blue
36-00012—01
H1 - Power/HVAC Signals
10
H1
1
Niantic, CT 06357
Honeywell GmbH
Country of Origin: Mexico
Boeblinger Str. 17
H4
E361577
Patent Pending
71101 Schoenaich
Sensing Control
Germany
BLE
FCC ID: HS9-201528
IC: 573R-201528
Typical Function
Ground
24 VAC
Common
High Fan
Medium Fan or Second Stage Heat
Cold Water Valve (FCU) or Compressor
Signal (Heat Pump)
Hot Water Valve (FCU) or Reversing Valve
(Heat Pump)
Valve Power
Fan Power
Low Fan
Typical Function
Ground
Line
Neutral
High Fan
Medium Fan or Second Stage Heat
Cold Water Valve (FCU) or Compressor
Signal (Heat Pump)
Hot Water Valve (FCU) or Reversing Valve
(Heat Pump)
Valve Power
Fan Power
Low Fan
Table 3. H2 Low Voltage Signals
Pin
Color
1
Green
2
Black
3
White
4
Yellow
5
Orange
6
Red
7
Brown
8
Grey

Wiring Diagrams

If the HVAC configuration for your application is not
NOTE:
shown here, refer to the document: e7 Wiring Configurations
found online at:
https://pages1.honeywell.com/e7_Install_Instructions.html
Generic FCU:24 VAC
Generic FCU: 110-220 VAC
2
Signal
Typical Function
GND
Ground
VEE
12 VDC
S5bus
Communications
DIN1
Entry Door, 2 transitions to
active
DIN2
Balcony Door/Window, 2
transitions to active
DIN3
External PIR/Motion Sensor, 2
transitions to active
AO
0-10 V VFD Fan
AI
Remote Thermistor
