Operation Manual
Tegra 4Bank
®
DMX
Part No. 3100061 Rev A
11-03-2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the tegra 4bank dmx and is the answer not in the manual?

Questions and answers

Related Manuals for Kino Flo tegra 4bank dmx

Summary of Contents for Kino Flo tegra 4bank dmx

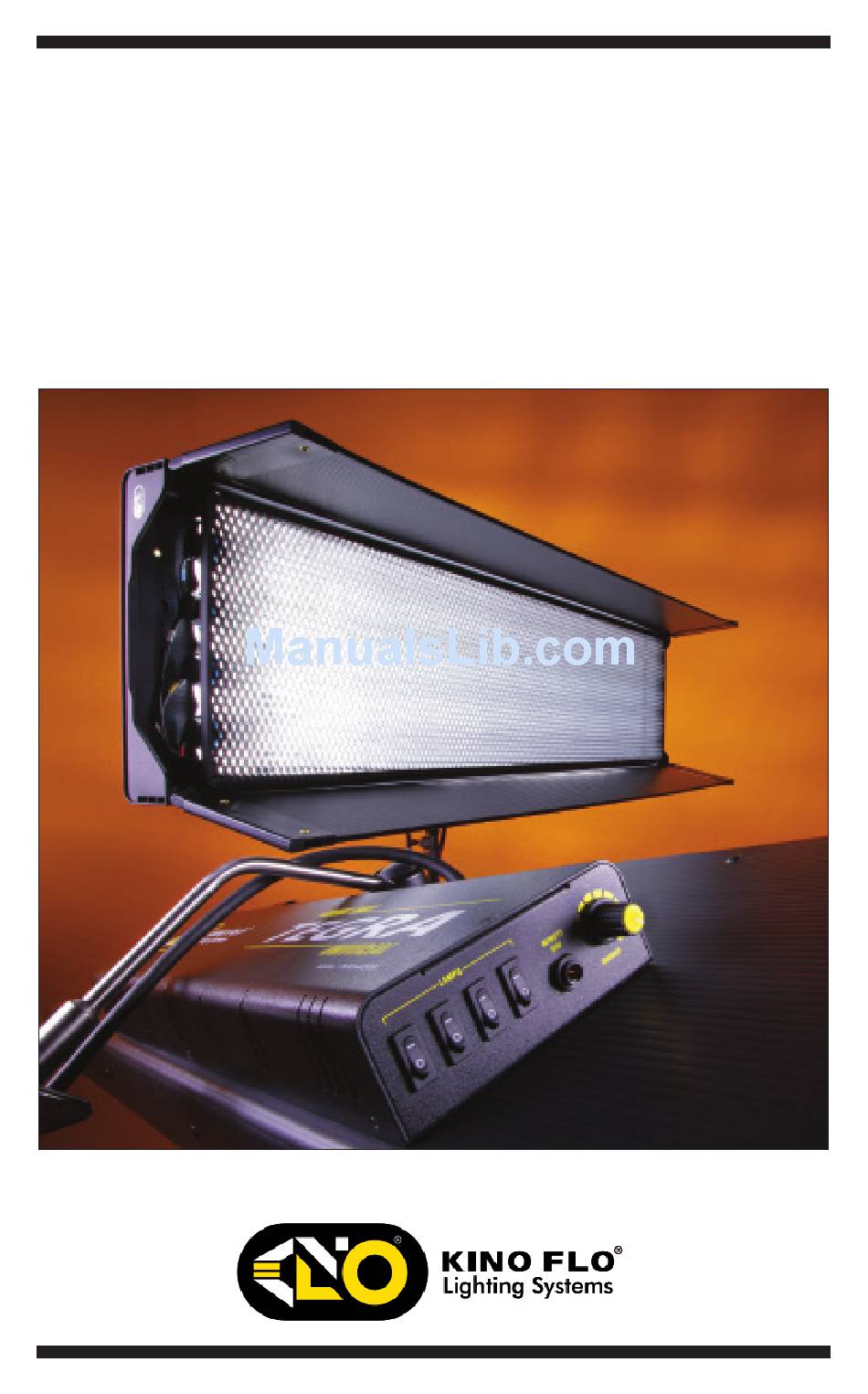

  • Page 1 Operation Manual Tegra 4Bank ® Part No. 3100061 Rev A 11-03-2015...
  • Page 2 Tegra 4Bank DMX Assembly TEG-450-120U Tegra 4Bank DMX, Univ 120U TEG-450-230U Tegra 4Bank DMX, Univ 230U LVR-T490-P Tegra 4Bank Louver/HP, 90° (Included) MTP-LB Kino 41 Lollipop w/ Baby Receiver (16mm) (Included) True Match Lamps ® 488-K32-S 4ft Kino KF32 Safety-Coated...
  • Page 3 Weight: 54.5 x 9 x 21” 41 lb (138.5 x 23 x 53.5cm) (19kg) KIT-T450B-120U Tegra 4Bank DMX Kit w/ Soft Case, Univ 120U KIT-T450B-230U Tegra 4Bank DMX Kit w/ Soft Case, Tegra 4Bank DMX Kit Univ 230U w/ Soft Case...
  • Page 4 Lamp Harness Color Codes The Harness wiring is color-coded. The same color-code must match at each end of the lamp for proper operation. Inserting Lamps Locking Lamp Connector: Depress both tabs on lamp connector and apply to lamp pins. Match the Harness color-codes at each end of the lamp.

  • Page 5: Mounting Procedures

    Mounting Procedures Mounted on a baby stand Mounted to pipe grid Note: When hanging in a studio, loop a safety cord through the strain-relief ring provided on the back of the fixture. A 180 degree turn is all that is required to loosen the mount for orientation.
  • Page 6 Mounting Flozier Remove Louver. Stretch two elastic cords Take up slack on both around fixture. elastic cords. Expand the Barndoors to smooth out the face of the Flozier and eliminate wrinkles. Gelling the Fixture Restricting the airflow around the lamps can cause the lamps to operate hotter. This increased heat will raise the lamp’s color temperature and green spike.
  • Page 7 The Tegra 4Bank DMX requires 100-240VAC 50/60 Hertz on an earth grounded circuit. The electronic Ballast operates at a high frequency of 40kHz. It is lightweight, flicker-free and dead quiet.
  • Page 8 D) DMX-In & DMX-Out: DMX-In receives signals from Dimmer Board. DMX-Out relays DMX signals through other fixtures or instruments. (Note: Each Tegra 4Bank DMX fixture has an “AUTO TERMINATE” feature. The last fixture that does not have an XLR cable attached to the DMX “Out”...

  • Page 9: Manual Operation

    Manual Operation Manual Dimming Control The onboard dimmer dial can manually dim lamps. Lamp Switching Black The Tegra 4Bank DMX fixture has four lamp switches White which allow for individual lamp operation. See diagram below. Black Turning off 2 lamps equals a one f-stop reduction in White light output without color shift.

  • Page 10: Dmx Operation

    Remote Dimmer Operation The Remote Dimmer (DIM-5), sold separately, is designed to remotely dim the Tegra 4Bank. Insert the dimmer cable into the receptacle marked: REMOTE DIM. Inserting the dimmer cable will automatically disable the onboard dimmer. Insert the other end of the dimmer cable into the Remote Dimmer (DIM-5).

  • Page 11: Dmx Channels

    7-10% on the DMX console, then fade up from that point. DMX Channels The Tegra 4Bank DMX operates on 1 or 4 DMX addresses. On DMX Channel 1, one DMX address controls/dims all 4 lamps on one dimmer channel.

  • Page 12: Dmx Cables

    Any theatrical lighting board with DMX512 protocol can be used to individu- ally turn on/off lamps in a fixture. Tegra 4Bank DMX fixtures can be jumpered using the IN and OUT ports. As many as 100 fixtures can be jumpered on one chain as long as the DMX cable run remains under 1000 feet or 40 x 25ft DMX cables.

  • Page 13: Troubleshooting

    Do not use Microphone Cables and other general purpose, two-core cables designed for audio or signaling use. They are not suitable for DMX512. Problems due to incorrect cabling may not be immediately apparent. Microphone Cables may appear to work fine, but systems built with such cables may fail or be prone to random errors.

  • Page 14: Accessories And Parts

    Accessories and Parts DIM-5 Remote Dimmer w/ 15ft Cable DFS-4804 Tegra 4Bank Flozier, Full DFS-4804-H Tegra 4Bank Flozier, Half LVR-T490-P Tegra 4Bank Louver/HP, 90° LVR-T460-P Tegra 4Bank Louver/HP, 60° MTP-B41F Kino Offset w/ Baby Receiver (16mm) MTP-L Kino 41 Lollipop w/ 3/8” Pin (10mm) MTP-LB Kino 41 Lollipop w/ Baby Receiver (16mm) MTP-LBS...
  • Page 15 XLR-525 DMX Cable 5-Pin XLR, 25ft XLR-515 DMX Cable 5-Pin XLR, 15ft True Match Lamps ® 488-K32-S 4ft Kino KF32 Safety-Coated 488-K55-S 4ft Kino KF55 Safety-Coated Cases KAS-T4-C BAG-401 KAS-C46 Part No. Description Dimensions Weight Holds (Empty) BAG-401 Tegra 4Bank 55 x 8 x 19.5”...

  • Page 16: Fixture Specifications

    This prod- uct is made of recyclable materials and should be disposed of in accordance with local and state regulations. Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA Tel: 818 767-6528 website: www.kinoflo.com...
